Quick Details
-
Drilling Speed:
-
Normal Speed
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOPSCNC
-
Model Number:
-
DD703
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1060x750x1700mm
-
Weight (KG):
-
700 KG
-
Applicable Industries:
-
manufacturing
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
High Speed Small Hole EDM Drilling Machine DD703
-
Certification:
-
CE ISO, CE ISO
-
Spindle travel:
-
200mm
-
Usage:
-
Metal Parts
-
Machine type:
-
DD703
-
Machine weight:
-
700kg
-
Water tank:
-
25L
-
Filtering model:
-
shallow seam type
-
Z-axis travel by motor drive:
-
280mm
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
3
-
Range of Spindle Speed(r.p.m):
-
30 - 60 r.p.m
-
Drilling Speed:
-
Normal Speed
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOPSCNC
-
Model Number:
-
DD703
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
1060x750x1700mm
-
Weight (KG):
-
700 KG
-
Applicable Industries:
-
manufacturing
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
High Speed Small Hole EDM Drilling Machine DD703
-
Certification:
-
CE ISO, CE ISO
-
Spindle travel:
-
200mm
-
Usage:
-
Metal Parts
-
Machine type:
-
DD703
-
Machine weight:
-
700kg
-
Water tank:
-
25L
-
Filtering model:
-
shallow seam type
-
Z-axis travel by motor drive:
-
280mm

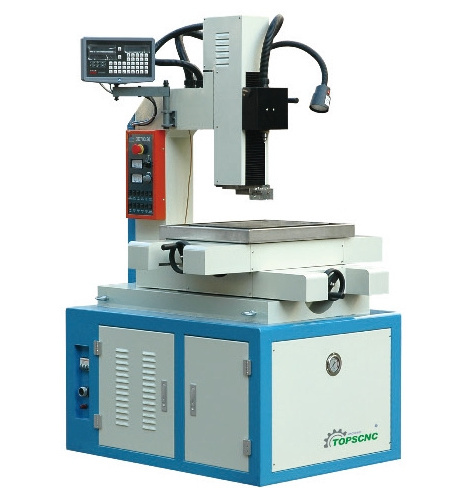

High Speed Small Hole EDM Drilling Machine DD703
|
Technical parameter/Model
|
unit
|
DD703
|
DD703.30
|
DD703.40
|
||
|
Worktable size
|
mm
|
320x440
|
320x440
|
460x690
|
||
|
Worktable travel
|
mm
|
200×300
|
300×400
|
400x500
|
||
|
Z-axis travel
|
mm
|
280
|
300
|
300
|
||
|
Max.load on table
|
mm
|
200
|
200
|
200
|
||
|
Main spindle speed
|
rpm
|
60
|
|
|
||
|
Diameter of electrode
|
mm
|
φ0.3-φ3
|
|
|
||
|
Max.distance from guider to worktable
|
mm
|
240
|
300
|
500
|
||
|
water tank
|
L
|
25
|
|
|
||
|
Filtering model
|
|
shallow seam type
|
|
|
||
|
Working medium
|
|
water
|
|
|
||
|
MAX.working pressure
|
Mpa
|
7
|
|
|
||
|
Power supply
|
|
380V,3Ph,50Hz
|
|
|
||
|
Max.woking current
|
A
|
30
|
|
|
||
|
Power consumption
|
Kw
|
3
|
|
|
||
|
Machine weight
|
kg
|
700
|
850
|
1700
|
||
|
Machine demensions
|
mm
|
1060×750×1700
|
1060×750×1760
|
1800x1380x1800
|
||
Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!
TOPSCNC Customer
Certification
Service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 20--25 days
6) Packing : Standard export wooden cases
7)Port: Shanghai
