Quick Details
-
Brand Name:
-
3C-LINK
-
Model Number:
-
3CI-PSE0208GM(with POE), 3CI-SFP0208GM(without POE)
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial Switch
-
PoE Port:
-
8*10/100/1000M POE
-
data rate:
-
10/100/1000M
-
Dimensions:
-
128x100x47mm
-
SFP Slots:
-
2 Gigabit SFP slots
-
PoE Standard:
-
IEEE 802.3af/ IEEE 802.3at PoE
-
Mac address table:
-
8K
-
Protection grade:
-
IP40 aluminum case
-
Packet buffer:
-
4Mbps
-
Operating Temperature:
-
40 ~ +85Degree
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
24Gbps
-
Brand Name:
-
3C-LINK
-
Model Number:
-
3CI-PSE0208GM(with POE), 3CI-SFP0208GM(without POE)
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial Switch
-
PoE Port:
-
8*10/100/1000M POE
-
data rate:
-
10/100/1000M
-
Dimensions:
-
128x100x47mm
-
SFP Slots:
-
2 Gigabit SFP slots
-
PoE Standard:
-
IEEE 802.3af/ IEEE 802.3at PoE
-
Mac address table:
-
8K
-
Protection grade:
-
IP40 aluminum case
-
Packet buffer:
-
4Mbps
-
Operating Temperature:
-
40 ~ +85Degree

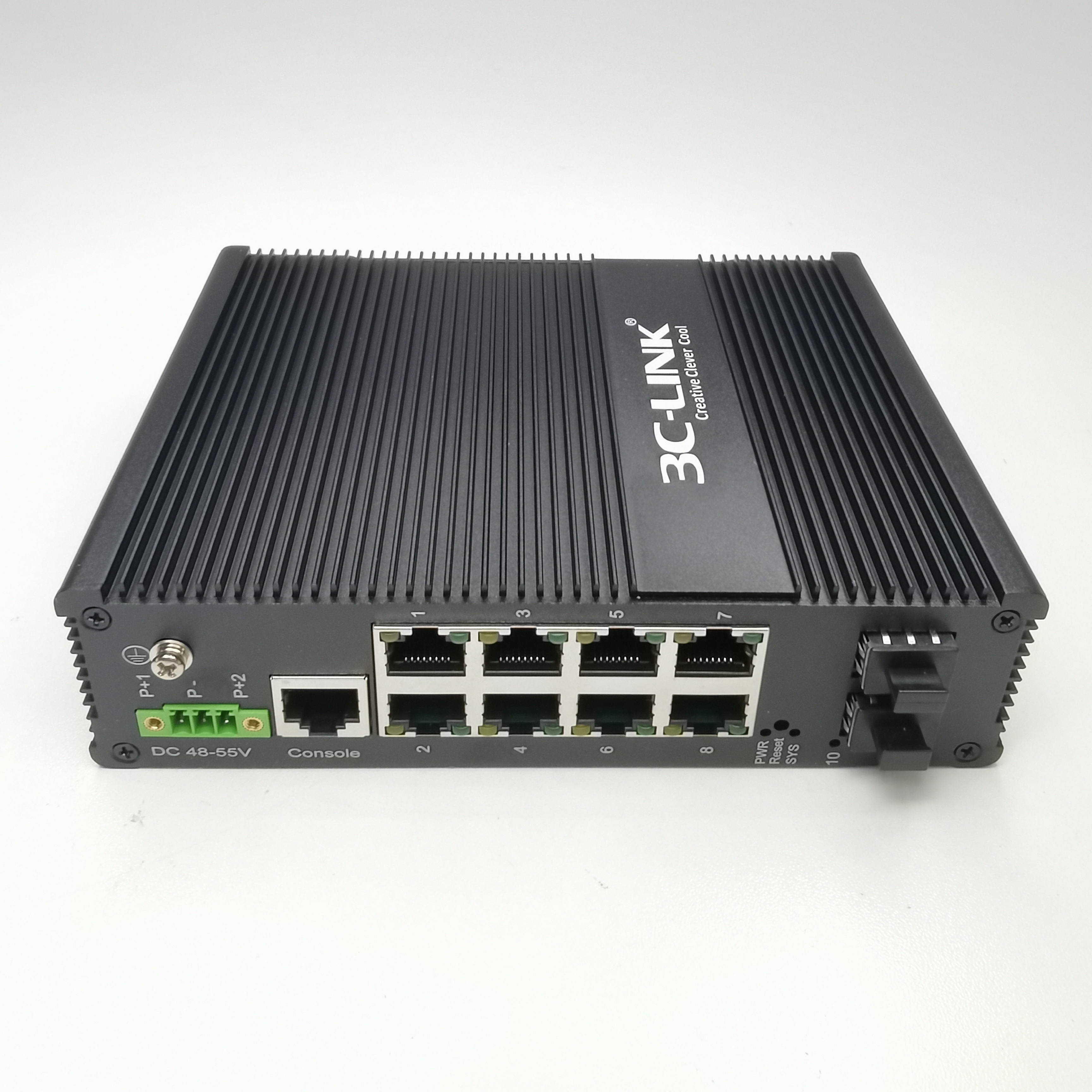

Industrial Managed Gigabit Ethernet Switch with PoE+
10 ports:
8 1000M PoE+ ports and 2 Gigabit SFP ports
The 3CI-PSE0208GM series is a high performance 10 port, industrial, managed gigabit
Ethernet switch with eight 10/100/1000M PoE ports and two gigabit SFP ports. The eight
PoE ports support IEEE802.3af/at standard. The switch supports Ethernet Ring Protection
Switching (ERPS) as well as STP/RSTP/MSTP. It also supports Web-based network
management, VLAN, QoS, SNMP, IGMP snooping and other network functions. LED indicators
provide the connection status when using SFP option. Rugged design with IP40 enclosure and
industrial level 3 ESD protection makes it suitable for many applications such as Intelligent
Transportation Systems, IP surveillance and industrial networks. The product is available in
either DIN rail or wall-mount configurations.
-
8* 10/100/1000Base-T Ethernet ports (PoE)
-
2* 1000BASE-X SFP ports
-
EPRS (typical recovery time \< 30ms with 250 connected units)
-
STP / RSTP / MSTP redundancy protocols and standards
-
SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN network management
-
IGMP Snooping multicast function
-
WEB, Telnet, SSH, Console (CLI)
-
open and close port, binding MAC and port
-
802.1x network access control
-
802.1Q protocol, Isolate network flow
-
Radius Centralized password management
-
IEEE802.3af/at standard
-
Overload current protection and reverse polarity protection
-
IP40 enclosure protection
-
Unique DIN mount design makes mounting and removal simple
-
Both PoE and Non-PoE models are available
| Type | Description |
|
3CI-SFP0208GM
|
Managed, 8*10/100/1000 Base-T Industrial type, 2 Gigabit SFP, without POE
|
|
3CI-PSE0208GM
|
Managed, 8*10/100/1000 Base-T PoE/PoE+, 2 Gigabit SFP
|
| 3CI-SFP0208G | Unmanaged, 8*10/100/1000 Base-T Industrial type, 2 Gigabit SFP, without POE |
| 3CI-PSE0208G | Unmanaged, 8*10/100/1000 Base-T PoE/PoE+, 2 Gigabit SFP |
Click picture to choose Unmanaged Type 3CI-SFP0208G/ 3CI-PSE0208G
