Quick Details
-
Color:
-
Customized Option
-
Table Diameter:
-
500mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product Name:
-

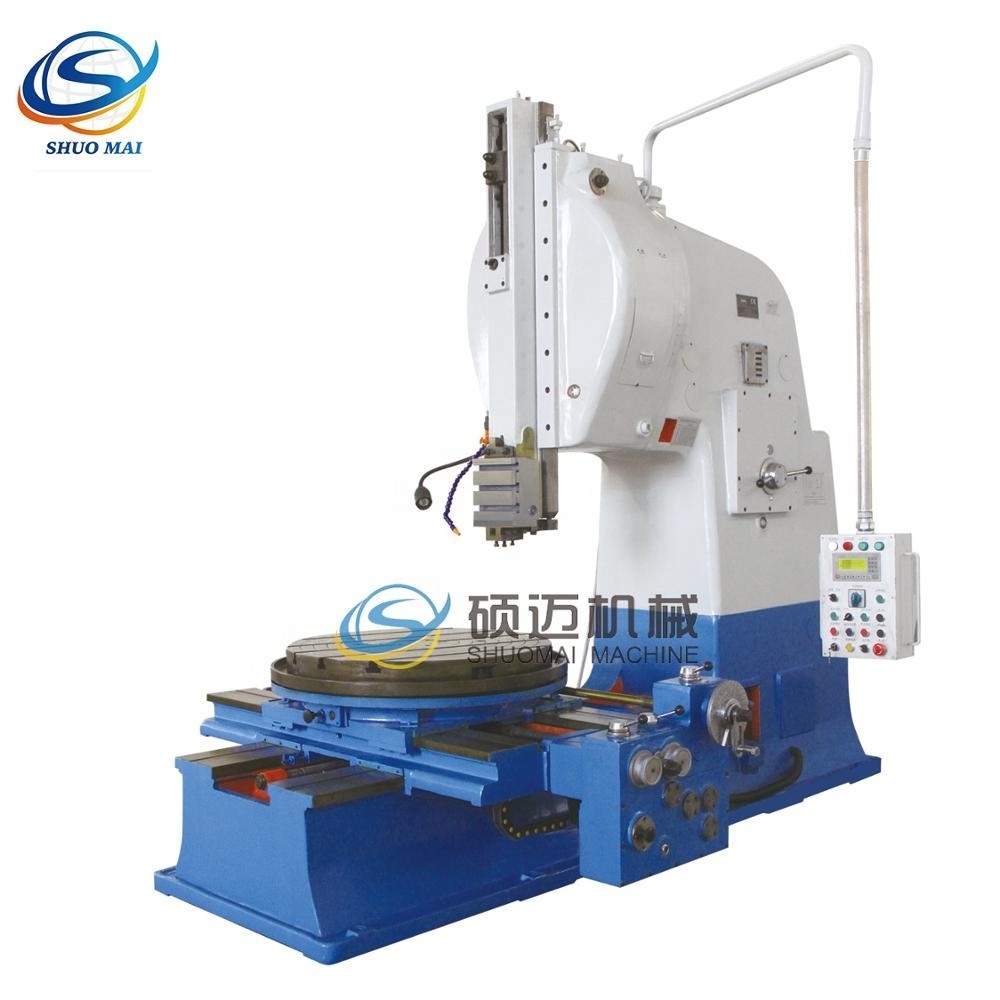

Vertical Slotting Machine
-
Processing Types:
-
Metal Processing
-
Color:
-
Customized Option
-
Table Diameter:
-
500mm
|
Specification |
BC5050 |
|
Maximum cutting length(inserted hole 450 mm) |
500mm |
|
Table diameter |
1000mm |
|
Worktable maximum longitudinal movement distance |
660m |
|
Worktable maximum lateral movement distance |
1000mm |
|
Workbench maximum load |
2000kq |
|
Distance from work surface to the lower end of the carriage |
740nm |
|
Distance from the tool support surface to the front wall of the bed |
gomm |
|
Ram adjustment distance |
430mm |
|
Ram tilt angle(left and right direction) |
10deg |
|
Number of ram reciprocations(minutes) |
9 , 12.5 , 18 , 25 , 36 , 50 |
|
Worktable vertical and horizontal maneuvering eed rate map(m meter am reciprocating once |
0.1 , 0.2 , 0.3 , 0.4 , 0.6 , 1.2 |
|
Working and tuming maneuvering feed range(slipping once ) |
3'6'9 ’ 12 ’ 18'36 |
|
Maximum cutting force |
16000N |
|
Main drive electric machine |
7.5kw1440r.p.m |
|
Feed servo motor |
4.0kw |
|
Cooling pump motor |
0.125kw2800r.p.m |
|
Machine weight |
10.3T |
|
Machine contour(length x width x height ) |
3480×2085×3307m |
|
Split package size |
3680/2260/1200 2250/1100/2250mm |
