Quick Details
-
TYPE:
-
HYA53
-
CORES:
-
25*2
-
Insulation:
-
PE
-
Jacket:
-
PE
-
Conductor:
-
solid bare copper
-
Shield:
-
Aluminum tape
-
Application:
-
DUCT Underground telephone cable
-
Certification:
-
CE/ROHS/ISO9001
Quick Details
-
Brand Name:
-
JF
-
Model Number:
-
HYA53
-
Place of Origin:
-
Zhejiang, China
-
TYPE:
-
HYA53
-
CORES:
-
25*2
-
Insulation:
-
PE
-
Jacket:
-
PE
-
Conductor:
-
solid bare copper
-
Shield:
-
Aluminum tape
-
Application:
-
DUCT Underground telephone cable
-
Certification:
-
CE/ROHS/ISO9001

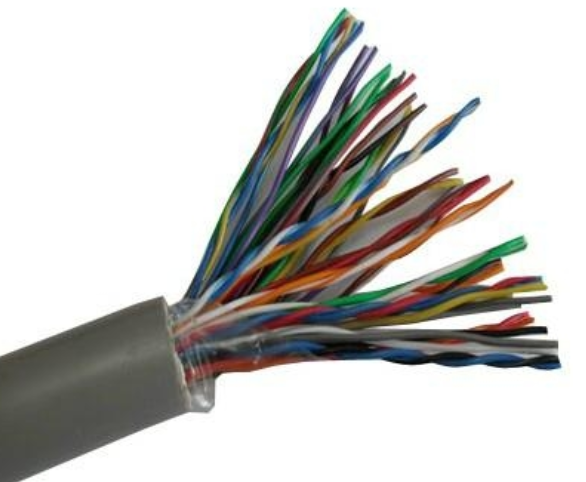

zhejiang Jianfeng HYA Telephone cable 50 pair 100 pair 200 pair 300 pair 400 pair
- Rated temperature:60 o C 75 o C
- Reference standard:UL444,TIA/EIA 568A.
- Bare solid copper conductor.
- Rip cord optional
- Flammability Grade:CMX,CM,MP,CMG,CMR,MPR.UL verified to TIA/EIA 568A &ISO/IEC 11801.
| Part Number | 10P-2400 Telephone Cable | |
| Conductor | Diameter(mm) | 0.5±0.01 |
| Material | Bare Copper | |
| Type | Solid | |
| Dielectric(Insulation) | 0.7±0.01 | |
| Material | Solid PE | |
| twist | (2 wire twist) | |
| Core Wrapping | Material | Plastic tape wrap |
| Thickness (mm) | 0.05 | |
| shield | Material | Al Tape |
| Thickness(mm) | 0.25 | |
| Jacket(sheath) | Material | LDPE |
| Colour | Black | |
| Thickness(mm) | 1.4----3.0 | |
| Diameter(mm) | 9.5-72 | |
| Resistance(ohms/km ) | ≤95 | |
| Insulation Resistance(Gohms*km ) | ≥5 | |
| Mutual Capacitance (Nf/km ) | 50±5 | |
| Number of Pairs | 10-1800 | |
| Net Weight (kgs/km) | 90-8500 | |
| Operating Temperature Range(℃) | -40 to 60 | |
| package | 300-2000meters/roll | |
