Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Place of Origin:
-
Hubei, China (Mainland)
-
Weight (KG):
-
1350 KG
-
Product name:
-
Hot sale Big power China factory dne 6kw fiber laser cutting machine s
-
Laser power:
-
500W / 1000W / 2000W / 3000W
-
Control system:
-
Cypcut Control System
-
Model:
-
GF3015
-
Color:
-
White Red
-
Cutting materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
-
Function:
-
Cutting Metal Materials
-
Laser source:
-
Raycus IPG
-
Feature:
-
Automatically Position
-
Item:
-
High Cutting Speed Laser Cutting Machinery
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Place of Origin:
-
Hubei, China (Mainland)
-
Weight (KG):
-
1350 KG
-
Product name:
-
Hot sale Big power China factory dne 6kw fiber laser cutting machine s
-
Laser power:
-
500W / 1000W / 2000W / 3000W
-
Control system:
-
Cypcut Control System
-
Model:
-
GF3015
-
Color:
-
White Red
-
Cutting materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
-
Function:
-
Cutting Metal Materials
-
Laser source:
-
Raycus IPG
-
Feature:
-
Automatically Position
-
Item:
-
High Cutting Speed Laser Cutting Machinery

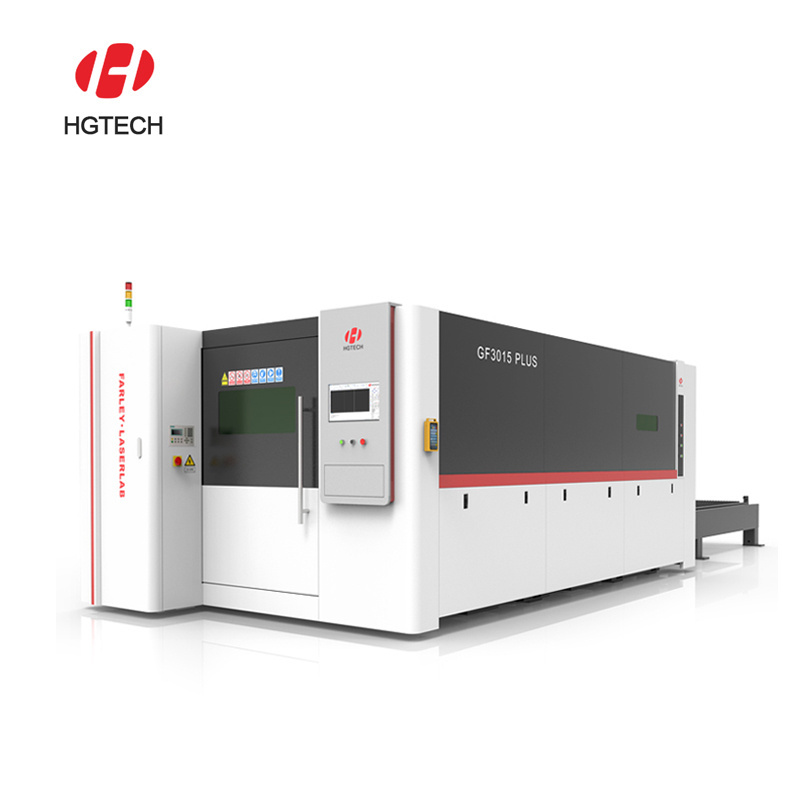

Hot sale Big power China factory dne 6kw fiber laser cutting machine sheet metal
Contact us and you'll get :
4.Quick reply and quick solution : Local after-sale service in 2 days,reply in 1 hour ,solution in 1 days
5.Professional after-sale team : Free to train workers , life-long responsibility ,24-hour online ,Support door to door after sale services
In order to achieve the maximum cutting thickness, the conditions must be met:
The laser cutting equipment is in optimal maintenance and adjustment.The material must meet the quality standards of no impurities and rust (laser material).
•Retain size, design, and equipment modifications. It has passed ISO9001, EU CE certification.
•Laser high-quality components provide extended warranty services.
|
MODEL NO.
|
GF3015
|
|
Processing area
|
1500mm*3000mm
|
|
Fiber power
|
1000W/1500W/2000W/3000W/6000W/8000W
|
|
Cooling mode
|
Water cooling and protection system
|
|
Resetting positioning accuracy
|
±0.01mm
|
|
Max acceleration
|
1G
|
|
Compatible Software
|
CorelDraw/AutoCAD/Photoshop/AI …
|
|
Whole machine size
|
Machine:4400*2360*1500mm
Rittal:1750*1150*750mm |
|
Max traveling speed
|
110m/min
|
|
Driver system power
|
Y=750W; X=750W; Z=400W
|
|
Support graphic format
|
LXD/.DXF/.PLT/.AI/.Gerber/.DWG ….
|
|
Gross power
|
17KW
|
|
Transmit system
|
Dual Rack & Pinion type
|
|
Operating temperature
|
0-45℃
|
|
Operating humidity:
|
5-95%
|
|
Gross weight
|
1800KG
|
|
Option:
|
Rotary attachment for column materials
|
Our Advantages:
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality;
2) High cutting speed: Cutting speed is more than 20m/min;
3) Stable running: Adopting the top world import fiber lasers, stable peformance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency;
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
8) Engineer overseas service
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture billboard, advertising, signs, signage, metal letters, LED letters,
kitchen ware, advertising letters, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets
processing, metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, glasses frame, electronic parts,
nameplates, refrigeration machinery, agricultural machinery, food machinery, kitchen stainless steel countertops, aerospace,
railroad locomotive, auto parts manufacturing, car body processing, medical equipment, smart home, home appliances, kitchen
equipment, fitness equipment, machinery manufacturing, sheet metal processing. etc.
|
MATERIAL
|
THICKNESS (MM)
|
POWER &SPEED
|
|||||||
|
500W
|
800W
|
1000W
|
1200W
|
1500W
|
2000W
|
2200W
|
3000W
|
||
|
(Q235)O2
|
2
|
3-4
|
3.5-4
|
4-5
|
4.5-6
|
5.7
|
|||
|
6
|
0.7-0.9
|
1.1-1.3
|
1.2-1.4
|
1.3-1.5
|
1.5-1.8
|
2.1-2.3
|
2.5-2.65
|
2.5-2.8
|
|
|
8
|
0.8-1
|
0.9-1.1
|
1-1.2
|
1.2-1.4
|
1.8-1.9
|
1.8-2
|
2.2-2.4
|
||
|
10
|
0.6-0.8
|
0.75-0.9
|
0.8-1
|
1-1.2
|
1.2-1.35
|
1.3-1.4
|
1.1-1.3
|
||
|
12
|
0.6-0.75
|
0.65-0.8
|
0.75-1
|
0.9-1.05
|
0.9-0.95
|
0.9-1
|
|||
|
14
|
0.5-0.7
|
0.65-0.8
|
0.85-0.9
|
0.8-0.85
|
0.8-0.9
|
||||
|
16
|
0.6-0.7
|
0.75-0.8
|
0.65-0.7
|
0.7-0.8
|
|||||
|
18
|
0.45-0.6
|
0.7-0.75
|
0.6-0.65
|
0.6-0.75
|
|||||
|
20
|
0.6-0.65
|
0.55-0.6
|
0.5-0.65
|
||||||
|
22
|
0.53-0.6
|
0.45-0.5
|
0.4-0.55
|
||||||
|
25
|
0.4-0.53
|
||||||||
|
STAINLESS STEEL
(304)N2
|
1
|
10-12
|
16-19
|
20-22
|
21-24
|
||||
|
2
|
1.8-2.5
|
3.5-4.7
|
4.5-6.5
|
6-7.5
|
7-10
|
11.5-13
|
11-13
|
18-23
|
|
|
3
|
0.7-0.9
|
1.5-2
|
1.8-2.5
|
2.5-3
|
4.5-6
|
5-6.5
|
6.5-7.5
|
7-9
|
|
|
4
|
0.45-0.6
|
1-1.7
|
1.5-2
|
1.7-2
|
2-3.5
|
3-3.5
|
4.5-6
|
||
|
5
|
0.45-0.7
|
0.7-1.1
|
1-1.3
|
1.8-2.2
|
2-2.3
|
2.5-3
|
|||
|
6
|
0.5-0.7
|
0.8-1
|
1.5-1.8
|
1.8-2
|
1.5-1.9
|
||||
|
8
|
0.6-0.7
|
0.75-0.9
|
1-1.3
|
||||||
|
10
|
0.3-0.5
|
||||||||
|
12
|
|||||||||
|
4
|
0.4-0.6
|
0.8-1.3
|
2.5-3.2
|
2.3-2.5
|
3-4
|
||||
