Quick Details
-
Fiber Diameter:
-
3nm
-
Thermal Conductivity:
-
0.075
-
Width:
-
50mm
-
Length:
-
30000mm
-
Shrinkage (1800℉, 3h):
-
<3%
-
Place of Origin:
-
China
-
Brand Name:
-
Yao Xing
-
Model Number:
-
YXTX
-
Name:
-
ceramic fiber tape with adhesive
-
Density:
-
550Kg/m3
-
Classification Temperature:
-
1260℃
-
Type:
-
ss wire reinforced
-
Size:
-
2X50X30000mm
-
Packing:
-
Woven Bags
-
Delivery:
-
Within 25 days after payment
-
Payment:
-
T/T
Quick Details
-
Chemical Composition:
-
Ai2O3 SiO2
-
Ultimate Strength (≥ MPa):
-
0.3
-
Working Temperature:
-
1050, 1000℃
-
Fiber Diameter:
-
3nm
-
Thermal Conductivity:
-
0.075
-
Width:
-
50mm
-
Length:
-
30000mm
-
Shrinkage (1800℉, 3h):
-
<3%
-
Place of Origin:
-
China
-
Brand Name:
-
Yao Xing
-
Model Number:
-
YXTX
-
Name:
-
ceramic fiber tape with adhesive
-
Density:
-
550Kg/m3
-
Classification Temperature:
-
1260℃
-
Type:
-
ss wire reinforced
-
Size:
-
2X50X30000mm
-
Packing:
-
Woven Bags
-
Delivery:
-
Within 25 days after payment
-
Payment:
-
T/T

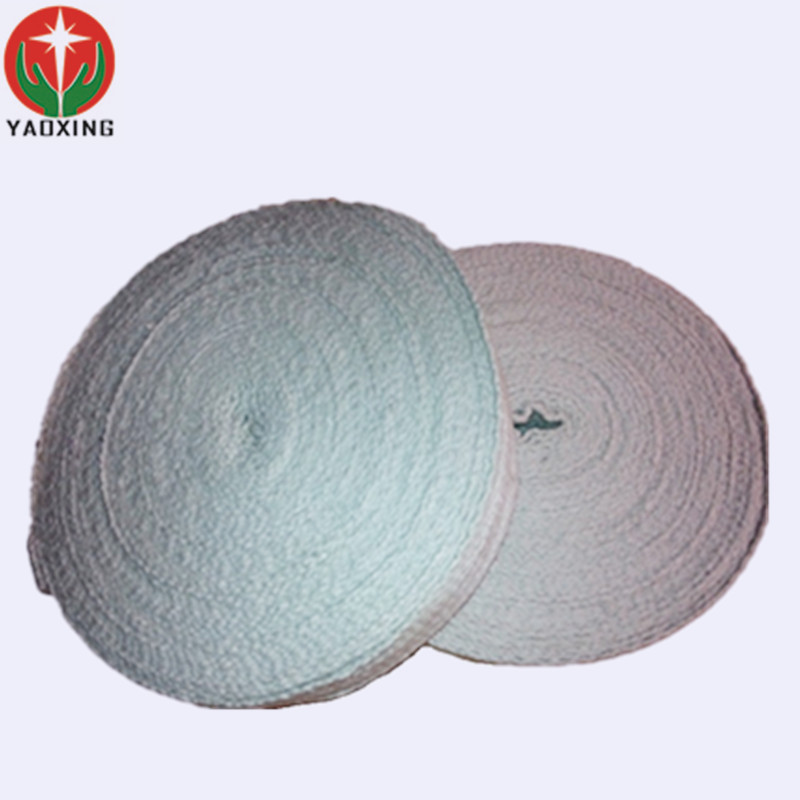

ceramic wire insulation fiber tape picture
Product Series:
1. 1260C Ceramic fiber cloth YXTX-208A1 (Fiber glass reinforced);
2. 1260C Ceramic fiber cloth YXTX-208A2 (Steel wire reinforced)
3. 1260C Ceramic fiber tape YXTX-208B1 (Fiber glass reinforced);
4. 1260C Ceramic fiber tape YXTX-208B2 (Steel wire reinforced)
5. 1260C Ceramic fiber round braided rope YXTX-208C1 (Fiber glass reinforced)
6. 1260C Ceramic fiber round braided rope YXTX-208C2 (Steel wire reinforced)
7. 1260C Ceramic fiber twisted rope (yarn) YXTX-208D1 (Glass fiber reinforced)
8. 1260C Ceramic fiber twisted rope (yarn) YXTX-208D2 (Steel wire reinforced)
9. 1260C Ceramic fiber square braided rope YXTX-208E1 (Fiber glass reinforced)
10. 1260C Ceramic fiber square braided rope YXTX-208E2 (Steel wire reinforced)
11. 1260C Ceramic fiber sleeve YXTX-208F
12. 1260C Ceramic fiber yarn YXTX-208G1(Glass fiber reinforce)
13. 1260C Ceramic fiber yarn YXTX208G2 (Steel wire reinforced)
14. 1260C Ceramic fiber twisted rope(wicker) YXTX-208H
Description :
YAOXING Ceramic Fiber Textiles contain Cloth Rope Tape and Yarn and so on,
which have been specially processed by the ceramic fiber, fiberglass and steel wire.
Also, we can manufacture and supply the bastard sizes products as the client demand
We are an expert of furnace insulation construction.
We have rich experience in construction of tunnel kilns,car furnace,pit furnace,drop tube furnace,
melting aluminium furnace cover, furnace door and so on.
And our ceramic fiber blankets , ceramic fiber modules , refractory anchors and other related furnace refractory materials
are exported to Malaysia,Indonesia,Vietnam,Tajikistan and so on.
Even more important,we can provide you the professional instructor in your construction site.
So,choosing us is our best opportunity to exchange the international experience of furnace construction with each other.
Sincerely hope we can have a pleasant cooperation in the future.
|
Classification T emperature |
||||
|
1260 ceramic fiber cloth |
1260 ceramic fiber tape |
|||
|
Code |
Y XTX-208A 1 |
Y XTX-208A 2 |
Y XTX-208B 1 |
Y XTX-208B 2 |
|
Service T emperature( ℃ ) |
450 |
1000 |
450 |
1000 |
|
Basic M aterial |
Ceramic fiber/ glass fiber reinforced |
glass fiber reinforced |
||
|
Theoretical D ensity (kg/m 3 ) |
400-500 |
550-630 |
||
|
Specification (mm) |
3000 × 1000/ 15 00 × 2/3 |
3000 × 20/50/75/100 × 2/3 |
||
|
Moisture C ontent ( % ) |
≤ 2 |
|||
|
Warp D ensity |
56-60piece/10cm |
|||
|
Weft D ensity |
24-30piece/10cm |
|||
|
Organic C ontent (%) |
≤ 15 |
|||
