* Clearly shows the situation of different units.
* You can touch the screen and adjust the parameters easily.
* Siemens PLC is optional.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1240*1130*2200mm
-
Weight:
-
900 kg
-
Product name:
-

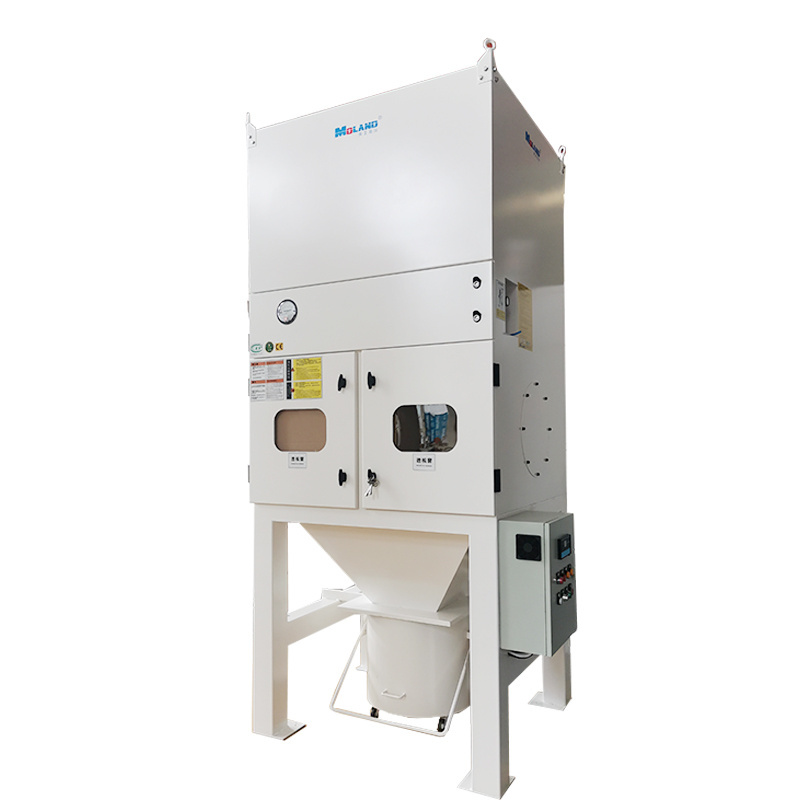

Industrial Dust Collector
-
Air Volume:
-
5000~7000m³/h
-
Filter Efficiency:
-
0.3um 99.9%
-
Filter Material:
-
Flame retardant coated polyester fiber
-
Cleaning Mode:
-
Automatic pulse jet cleaning
-
Filter Area:
-
66 m^2
-
Noise Level:
-
75±3dBA
-
Brand:
-
Moland or customized
-
Application:
-
Welding, laser cutting, polishing, etc
-
Customization:
-
Logo, size, etc.
Quick Details
-
Minimum Particle Size:
-
0.3um
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Moland
-
Dimension(L*W*H):
-
1240*1130*2200mm
-
Weight:
-
900 kg
-
Product name:
-
Industrial Dust Collector
-
Air Volume:
-
5000~7000m³/h
-
Filter Efficiency:
-
0.3um 99.9%
-
Filter Material:
-
Flame retardant coated polyester fiber
-
Cleaning Mode:
-
Automatic pulse jet cleaning
-
Filter Area:
-
66 m^2
-
Noise Level:
-
75±3dBA
-
Brand:
-
Moland or customized
-
Application:
-
Welding, laser cutting, polishing, etc
-
Customization:
-
Logo, size, etc.
Specification
|
Model
|
MLWF500-CG6T
|
MLWF500-CG6T Busket Type
|
MLWF500-CG9T
|
|
Motor Power
|
5.5KW
|
5.5KW
|
5.5KW
|
|
Working Voltage
|
380V 50Hz
|
380V 50Hz
|
380V 50Hz
|
|
Air Volume
|
5000~7000 m^3/h
|
5000~7000 m^3/h
|
5000~7000 m^3/h
|
|
Filter Efficiency
|
0.3um 99.9%
|
0.3um 99.9%
|
0.3um 99.9%
|
|
Filter Material
|
Flame retardant coated polyester fiber
|
Flame retardant coated polyester fiber
|
Flame retardant coated polyester fiber
|
|
Cleaning Mode
|
Automatic pulse jet cleaning
|
Automatic pulse jet cleaning
|
Automatic pulse jet cleaning
|
|
Filter Area
|
66m^2
|
66m^2
|
99m^2
|
|
Noise Level
|
75±3 dBA
|
75±3 dBA
|
75±3 dBA
|
|
Size
|
1240*1130*2200mm
|
1240*1130*2800mm
|
1240*1470*2200mm
|
|
Weight
|
800kg
|
900kg
|
800kg
|
|
Logo
|
Moland or customized
|
Moland or customized
|
Moland or customized
|
|
Color
|
White or customized
|
White or customized
|
White or customized
|
|
Application
|
suitable for plasma cutting, polishing and other dry dust collection.
|
suitable for centralized dust collection system, such as multi-welding-station fume extraction, plasma cutting fume extraction, polishing dust collection, etc.
|
10m^2 welding stations * 2;
manual welding station * 4;
plasma cutting;
4025 laser cutting, etc.
|
Details Images
PLC Intelligent Control System
* Moland self developed intelligent control system.
Automatic Pulse Jet Cleaning System
The omni-directional pulse blowback dust removal system, which can automatically clean the filter cartridge with a filtration
efficiency of 99.9%.
efficiency of 99.9%.
Electrical Control
As per the workpiece material you processed, we supply non-explosion-proof and explosion-proof type dust collector.
Explosion-proof device can be equipped to protect your workers when necessary.
If you're not sure which type to choose, you can tell us your welding workpiece material, then we'll recommend you the suitable type.
Cartridge Filter
Size:
Φ325*660mm
Qty:
6 pcs
Material: Flame Retardant Coated polyester fiber
Material: Flame Retardant Coated polyester fiber
Brand:
Japan Toray
Filter area: 66 m^2
Cleaning mode: Automatic pulse jet cleaning
Filtration efficiency: 0.3um >99.9%
Filter area: 66 m^2
Cleaning mode: Automatic pulse jet cleaning
Filtration efficiency: 0.3um >99.9%
Pressure Differential Gauge
The pointer visually displays the pressure difference, and the use of the filter cartridge is monitored in real time. When the pressure difference is too high, the dust collector automatically blows back and cleans the dust.
Dust Collection Bucket
* Large capacity dust collection bucket
* Regularly dump the dust in it.
* With leakage-proof rubber sealing
* With rod for you to lock and release the dust bucket
* With handle for you to pull it out and push it in easily
