Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vic-tech
-
Model Number:
-
N20-12GB-380G
-
Torque:
-
0.049( NM )
-
Gear Ratio:
-
1:10 to 1: 1000
Quick Details
-
Speed(RPM):
-
10000~15000( rpm )
-
Continuous Current(A):
-
0.03~0.05( A)
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vic-tech
-
Model Number:
-
N20-12GB-380G
-
Torque:
-
0.049( NM )
-
Gear Ratio:
-
1:10 to 1: 1000

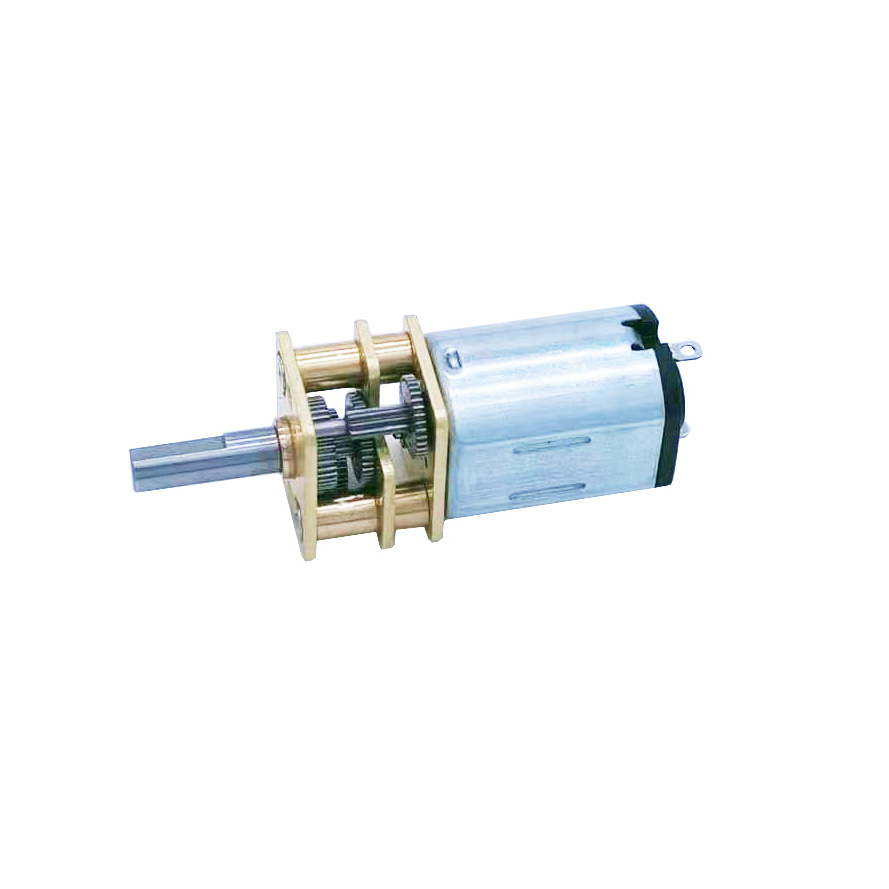

N20 micro DC brushed motor 3V-12V horizontal gear reducer for shared bicycle smart lock
N20 is a DC gear motor made of precious metal brushed DC motor with precision metal reducer. The outer dimensions are oblate, outer diameter 12, flat 10, motor length 15mm, the length of the gearbox is
18MM, DC motor because of mature technology, low price, simple drive control and widely used in cameras, copiers, door locks, optical drives, precision instruments, cameras and other fields.
After supporting the gearbox, the torque is greatly increased, the speed is reduced, and it is easy to control!
Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.
stability.
Our team has more than 10 years of experience in micro-motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
PRODUCT NAME | Brush dc motor |
MODEL | N20-12GB-380G |
Size | 12*33 |
Gear Ratio | customizable |
12mm mini gear box DC motor 3v 6v 12v 1:10 to 1: 1000 ratio small N20 Micro dc gear motor for robot and door lock
SHAFT TYPES :
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes can be customized.
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
SHAFT TYPES :
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
Changzhou Vic-Tech Motor Techology Ltd. is a professional manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.
1. How about the quality of products in your company?
We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.
2. Are you a manufacturer?
Yes, we are a manufacturer, not agent. We have own factory, which is located changzhou, CHINA. We have a leading power in producing and exporting galvanized steel pipe etc. I promise that we are what you are looking for. and Welcome you to contact us !
