Quick Details
-
Product name:
-
Truck-Mounted Diesel Screw Air Compressor for Trench Excavation
-
Application:
-
Construction
-
Capacity:
-
5m3/min
-
Working pressure:
-
7bar
-
Rated power:
-
37kw
-
Diesel engine:
-
Xichai 4DW91-50GBG3U-YM10
-
Rotate speed:
-
2500rpm
-
Cooling method:
-
Water cooling
-
Driven method:
-
Direct driven
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Newton
-
Dimension(L*W*H):
-
1800*960*1300mm
-
Product name:
-
Truck-Mounted Diesel Screw Air Compressor for Trench Excavation
-
Application:
-
Construction
-
Capacity:
-
5m3/min
-
Working pressure:
-
7bar
-
Rated power:
-
37kw
-
Diesel engine:
-
Xichai 4DW91-50GBG3U-YM10
-
Rotate speed:
-
2500rpm
-
Cooling method:
-
Water cooling
-
Driven method:
-
Direct driven

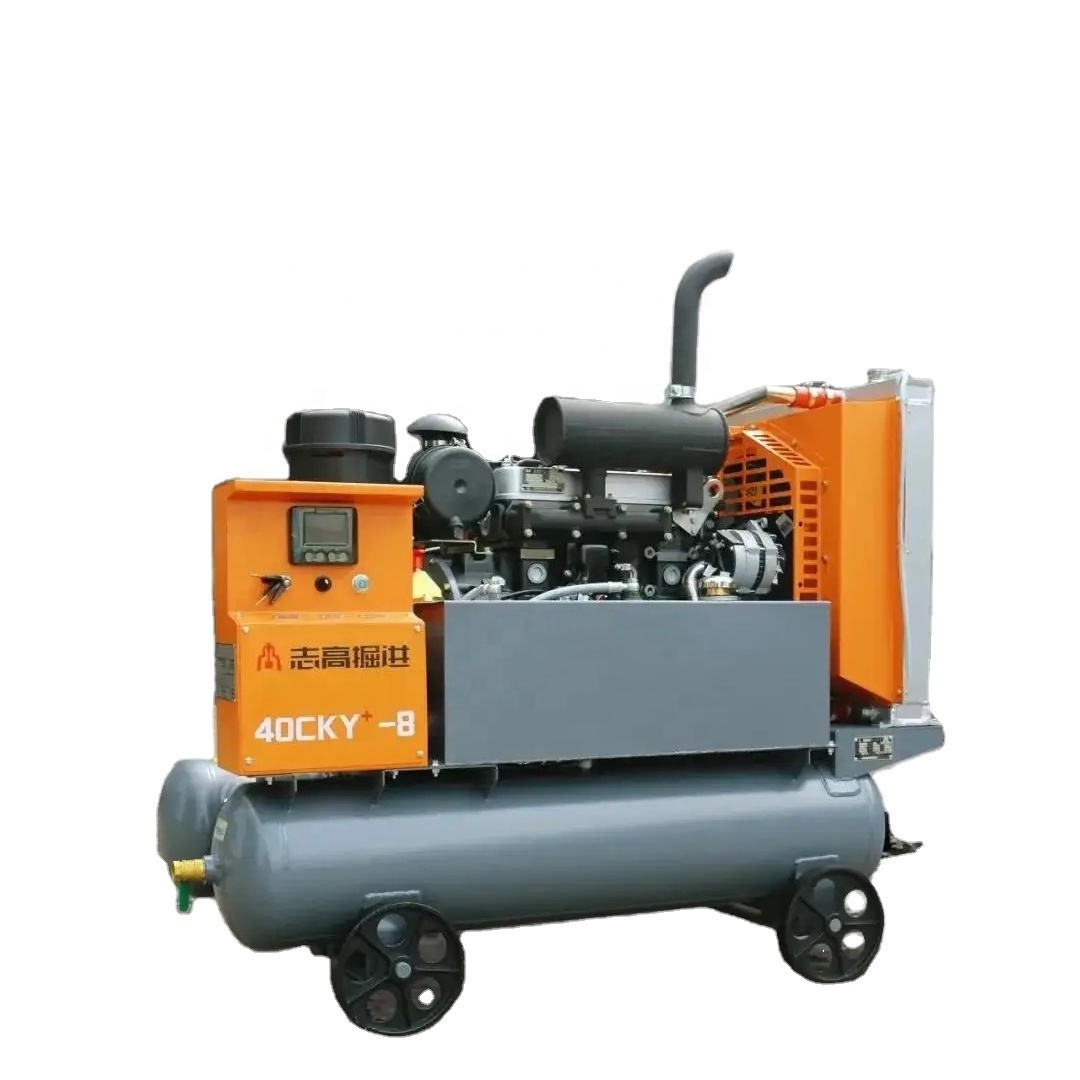

8 bar 5 m3/min Skid Construction Diesel Screw Air Compressor
Features
1) Light and easy to move ; or convenient to load and transport in small vehicles;
2) M aintenance is easy; also easy to buy accessories;
3) T he machine is easy to operate ;with computer automatic contro lling and provide a variety of abnormal alarm and automatic shutdown protection , to ensure operation of equipment safe and reliable .
Usage
It has wide range of usages,such as broke road construction, clean and wipe off road markings, kinds of trench excavation, kinds of mine prospecting (including underground operations, non-explosion-proof), auxiliary works for various construction site foundation pits, etc., can be used as independent gas supply units for related equipment.
Technical Parameter
|
Model |
40SCG (no cover) |
||
|
Name |
Diesel screw compressor |
||
|
Rated Air Displacement |
4.5m³/min |
||
|
Rated pressure |
7bar |
||
|
Volume of compressed oil |
16L |
||
|
Volume of air tank |
16L |
||
|
Stage of compress |
1 |
||
|
Cooling method |
Water cooling |
||
|
Noise |
80±5 dB(A) |
||
|
Diesel Engine Data |
|||
|
Manufacturer |
Xichai |
||
|
Model |
4DW91-50GBG3U-YM10 |
||
|
Working rotate speed |
2500RPM |
||
|
Power |
37KW |
||
|
Volume of lubricating oil |
6L |
||
|
Volume of fuel tank |
65L |
||
|
Whole machine size & weight |
|||
|
|
40SCY-7 |
40SCG |
40SCG-(no cover) |
|
Length(mm) |
2400 |
1800 |
1800 |
|
Width(mm) |
1330 |
1040 |
960 |
|
Height(mm) |
1550 |
1300 |
1300 |
|
Weight(kg) |
860 |
750 |
650 |
|
Exhaust valve size |
G1" |
G1" |
G1" |
