- Product Details
- {{item.text}}
Quick Details
-
Dimension (L*W*H):
-
830*420*275mm
-
Weight:
-
24.5KG
-
System Type:
-
Solar System
-
BMS:
-
16S 200A
-
Warranty:
-
2 Years
-
Service life:
-
0.2C charge/discharge, 5000 times ≥ 80% of initial capacity
-
OEM/ODM:
-
Accepatable
-
Cycle life:
-
6000 Times
-
Certification:
-
MSDS, CE, UN38.3
Quick Details
-
Model Number:
-
51.2V 280Ah
-
Brand Name:
-
HKIVI
-
Place of Origin:
-
Sichuan, China
-
Dimension (L*W*H):
-
830*420*275mm
-
Weight:
-
24.5KG
-
System Type:
-
Solar System
-
BMS:
-
16S 200A
-
Warranty:
-
2 Years
-
Service life:
-
0.2C charge/discharge, 5000 times ≥ 80% of initial capacity
-
OEM/ODM:
-
Accepatable
-
Cycle life:
-
6000 Times
-
Certification:
-
MSDS, CE, UN38.3
We can provide:
1. Portable energy storage station: Used for outdoor events, charge for laptop, tablets, cell phone, fans...etc.
2. Familry use energy storage station: Used to storage power for family urgency use.
3. Solar energy full system and Spare parts:mono/poly solar panel; invertre; lithium battery
4. Energy storage container solution: for different projects, customized service,professional solutions
Further details will share with you directly, let’s work together, and get the market together.
2. Familry use energy storage station: Used to storage power for family urgency use.
3. Solar energy full system and Spare parts:mono/poly solar panel; invertre; lithium battery
4. Energy storage container solution: for different projects, customized service,professional solutions
Further details will share with you directly, let’s work together, and get the market together.
Products Description

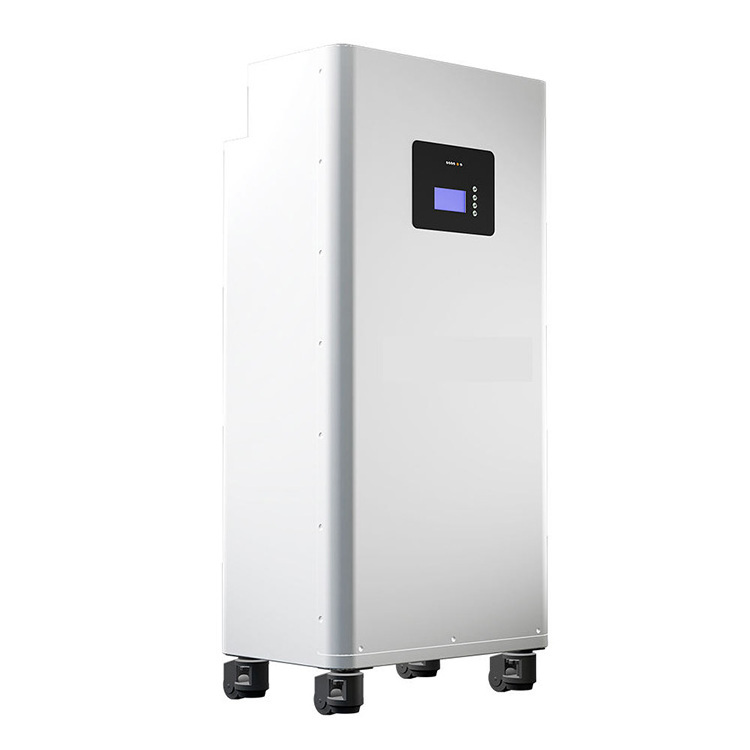

280ah battery diy kit 15Kwh Unit Case With 16S 200A BMS seplos Empty Lithium 12V/24V/51.2V/48v battery box case
|
Item
|
51.2V 280Ah
|
|
Battery Configuration
|
1P16S
|
|
Working Voltage Range
|
42V~58.4V
|
|
Nominal Power
|
14.336KWh
|
|
Standard Charging/Discharging Current
|
100A/200A @25±2℃
|
|
Maximum Charging Current
|
200A @25±2℃
|
|
Maximum Discharging
|
200A @25±2℃
|
|
Working Temperature
|
0～40℃(Charge) -20～40℃(Discharge)
|
|
Humidity(%)
|
5~95%
|
|
Altitude Limited(m)
|
0-3000m
|
|
Size
|
817×412×267mm
|
|
Weight
|
113Kg±3kg
|
|
Storage temperature and humidity
|
-10℃~35℃（Within one month of storage）
25±2℃（Within three months of storage） 65%±20%RH |
|
Charging cycle
|
6000 cycles @25℃
50A Charging/discharging current 80% DOD |
|
IP Rate
|
IP 20
|
|
Commumication Mode
|
CAN or RS485
|
Smart BMS
Seplos Interated smart BMS with bluetooth control
Safe and Green
The safest LiFePo4 Batteryno fire and no explosions
Roller type
Easy to move, safe and convenient
6000 Cycles
Super Long 5-10years working lifespan
Plug in and play
Plug in batteriies then working easiest installation
Warranty service
We have a mature maintenance team
Package List:
* 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
* 1 * 48V 200A 16S Seplos BMS
* 1 * 58V 400A Fuse
* 4 * Handle
* 2 * PCB Board for BMS and Cell Connection
* 3 * Upper and Lower Latch lock
* 1 * LCD Screen
* 1 * LCD Screen Sticker
* 4 * Button Cap
Electrical principles and wiring harness connection diagram
Do not place batteries on flammable building materials
The temperature should be between 10℃ and 30℃ to maintain optimal operation.
It is recommended to place the battery on level ground
There should be some free space around the battery to dissipate heat (as shown in the picture below).
It is suitable for placement on concrete surfaces or other non-flammable surfaces.
