- Product Details
- {{item.text}}
Quick Details
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Sensor control, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Peony
-
Model Number:
-
PL-LD-066-60W
-
Color Temperature(CCT):
-
2700-6500
-
Beam Angle(°):
-
150X75°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC90V-305V
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 50
-
Color Rendering Index(Ra):
-
80
-
Product name:
-
Led Street Light
-
Light efficiency:
-
150-160LM/W
-
Material:
-
Die-cast Excellent Aluminum +Acylic lens
-
Item Type:
-
LED Outdoor Lighting
-
power:
-
50W-240W
-
Warranty:
-
5/8 Years
-
Color:
-
Black/White Housing
-
Color Temperature (CCT):
-
2700-6500K
Quick Details
-
Warranty(Year):
-
5
-
Power Supply:
-
AC
-
Lighting solutions service:
-
Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Sensor control, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Peony
-
Model Number:
-
PL-LD-066-60W
-
Color Temperature(CCT):
-
2700-6500
-
Beam Angle(°):
-
150X75°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC90V-305V
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 50
-
Color Rendering Index(Ra):
-
80
-
Product name:
-
Led Street Light
-
Light efficiency:
-
150-160LM/W
-
Material:
-
Die-cast Excellent Aluminum +Acylic lens
-
Item Type:
-
LED Outdoor Lighting
-
power:
-
50W-240W
-
Warranty:
-
5/8 Years
-
Color:
-
Black/White Housing
-
Color Temperature (CCT):
-
2700-6500K

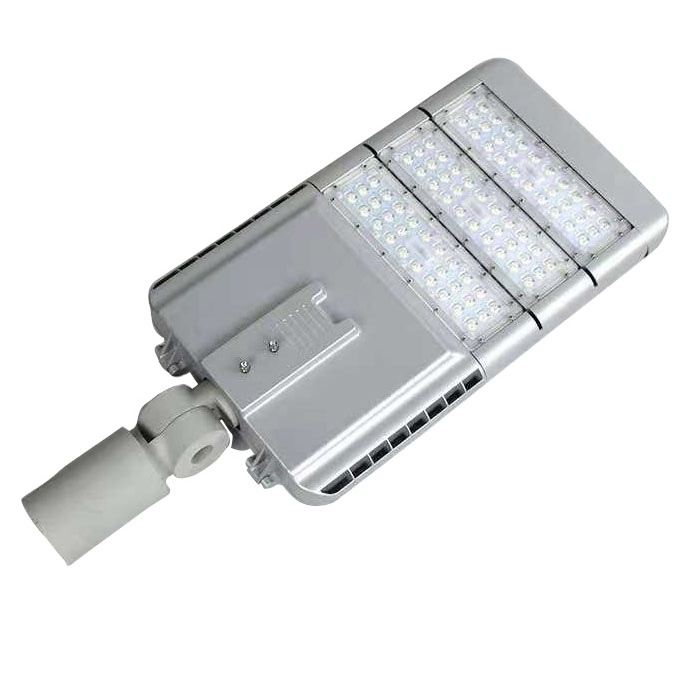

Battery powered 60w 150Lm/w AC90-305V led street light
Product description
1 Using led modules , lumileds 3030smd . Lamp luminous efficiency can reach more than 1 6 0LM/W
2 Driver box can be opened without tools ,easy to maintain
3 Installation degree is adjustable from -9 0 ~ +9 0.
4 Beautiful appearance and unique design IP66
Application
road, park, highway ,country yard etc.
Produ ct specs
|
Specifications |
||||
|
Model |
PL-LD-066 |
PL-LD-066 |
PL-LD-066 |
PL-LD-066 |
|
Input Voltage |
90-305 V AC |
|||
|
Power |
50W 60W |
80W 100W 120W |
150W 180W |
200W 240W |
|
Net weight(kg) |
5.5 |
5.82 |
8.05 |
8.80 |
|
Size(mm) |
395*320*107mm |
481*320*107mm |
567*320*107mm |
653*320*107mm |
|
LED chip |
Lumileds 3030SMD |
|||
|
CRI |
Ra>70/80 |
|||
|
Power Factor |
>0.95 |
|||
|
Light efficiency |
150- 160LM/W |
|||
|
Beam angle |
150 X 75° |
|||
|
LED driver brand |
Inventronics / Meanwell driver series |
|||
|
Surge protection |
10KV/20KV as customers' rerquirement |
|||
|
Waterproof |
IP66 |
|||
|
Light pole size |
Ø60mm |
|||
|
Housing material |
Die-cast Excellent Aluminum + Acylic lens |
|||
|
Storage temperature |
-40℃~85℃ 10%~90% H.R |
|||
|
Work temperature |
-40℃~50℃ 20%~90% H.R |
|||
|
Lifespan |
50000 hours |
|
Options |
Photo c ell , PWM /DALI/1-10V/ Timing /Daylight sensor/Nema 7 Pin socket |
|
Certificates |
ENEC CB SAA CE ROHS IK10 IP66 LM80 LM79 TM-21 |
|
warranty |
5 -8years |
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature? A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost e other questions, please feel free to contact us, you will get reply at the first time
