Quick Details
-
Application:
-
Container door, Trailer door, Truck door, Cargo, Tanker, etc.
-
Feature:
-
Remote door control, live gps tracking
-
Dimension:
-
195mm x 114mm x 37mm
-
Battery:
-
3.7V 15000mAh Li-ion Battery
-
GPS Chip:
-
UBLOX
-
Weight:
-
1000g with accessories
-
Network:
-
4G/3G/2G
-
Waterproof:
-
IP67 Waterproof
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jointech
-
Model Number:
-
JT701
-
Application:
-
Container door, Trailer door, Truck door, Cargo, Tanker, etc.
-
Feature:
-
Remote door control, live gps tracking
-
Dimension:
-
195mm x 114mm x 37mm
-
Battery:
-
3.7V 15000mAh Li-ion Battery
-
GPS Chip:
-
UBLOX
-
Weight:
-
1000g with accessories
-
Network:
-
4G/3G/2G
-
Waterproof:
-
IP67 Waterproof
-
Certification:
-
CE

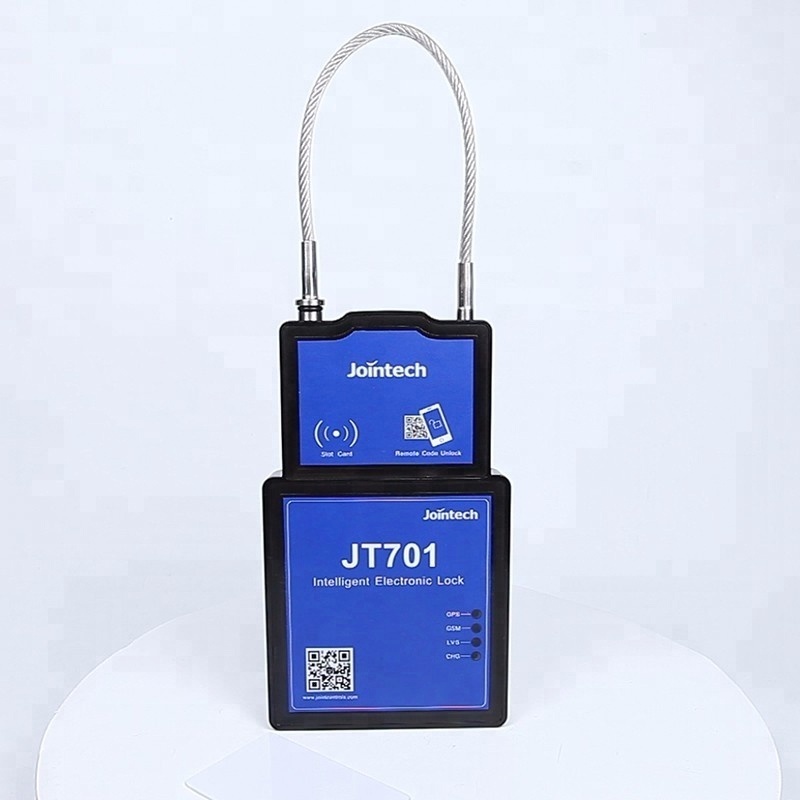

Container 4G GPS tracker JT701 GPS security padlock IP67 waterproof GPS tracking device for container/trailer/trucks
Key Features of the System:
A standalone unit operated by rechargeable battery.
Fast and easy installation by attaching the unit to the container door frame with an electronic lock.
Damage Prevention: There will be alert if someone cut the lock rope or open the back case cover.
A Flexible System that can be fully configured to meet customer requirements, with regards to information, times and signification events in real time
-Examples of real time alerts includes: door open/closed, temperature high/low, battery charge level, location status and any combination of these.
Geo-fencing function raises notifications when a container has entered o rleft a location.
The built-in accelerometer keeps you informed that changes in movement.
When the unit is out of coverage, all location and sensor information is saved to the memory and later transmitted once the unit is back in cellular coverage.
A Web Based System requiring a simple and easy installation process, we can provide multiple monitoring platform, which include web based tracking software and APP (IOS/Android)
Cooperation Tracking Platform: Wialon GPS tracking system.
Specifications:
|
Type |
Description |
|
|
Basic Function |
Transmission Mode |
TCP |
|
Data automatic upload |
Time interval |
|
|
Locating mode |
GPS |
|
|
Vibration detecting |
Built in 3G sensor |
|
|
Lock status monitoring mode |
Real time monitoring |
|
|
Unlock |
RFID/Remote password |
|
|
Wake up mode |
Call/SMS/Swiping RFID card/ Vibration/ E-string brake |
|
|
Alarm |
E-String brake alarm |
|
|
Swiping card alarm |
||
|
Unlock alarm |
||
|
Wrong password alarm |
||
|
Geofence alarm |
||
|
Parameters |
Dimension ( L×W×H ) |
1 95 mmx1 14 mmx 37 mm |
|
Weight |
70 0g (includes standard accessories) |
|
|
Material |
Engineering plastic |
|
|
Built-in battery |
1 5 000mAh rechargeable Li-ion |
|
|
Working temperature |
-20 ℃ — + 6 0 ℃ |
|
|
Storage temperature |
-40 ℃ — +8 0 ℃ |
|
|
Relative humidity |
5% — 99% |
|
|
Protection grade |
IP67 |
|
|
Average standby current |
Less than 0.1 mA |
|
|
Average working current |
Less than 90 mA |
|
|
Backup battery |
8.4V 400 mAh NI-MH battery |
|
|
GPS antenna |
embedded |
|
|
GSM frequency |
Quad Band: 900/1800/1900Mhz |
|
