Quick Details
-
Brand Name:
-
Zhengzhou Gou's
-
Voltage:
-
3 Phase 380V
-
Dimension(L*W*H):
-
650*280*560 mm
-
Weight (T):
-
0.65 T
-
Power (kW):
-
50
-
Application:
-
Melting
-
Working power:
-
three phase 380v 50-60hz
-
Working voltage:
-
342-430v
-
Maximum output power:
-
50KW
-
Max input current:
-
75A
-
Oscillation frequency:
-
2-10khz
-
Cooling water pressure:
-
0.3mpa
-
Water flow:
-
8L/min
-
Generator size:
-
650*280*560mm
-
Generator weight:
-
65kg
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
Hot Product 2021
-
Core Components:
-
IGBT
-
Brand Name:
-
Zhengzhou Gou's
-
Voltage:
-
3 Phase 380V
-
Dimension(L*W*H):
-
650*280*560 mm
-
Weight (T):
-
0.65 T
-
Power (kW):
-
50
-
Application:
-
Melting
-
Working power:
-
three phase 380v 50-60hz
-
Working voltage:
-
342-430v
-
Maximum output power:
-
50KW
-
Max input current:
-
75A
-
Oscillation frequency:
-
2-10khz
-
Cooling water pressure:
-
0.3mpa
-
Water flow:
-
8L/min
-
Generator size:
-
650*280*560mm
-
Generator weight:
-
65kg
-
Certification:
-
ISO9001

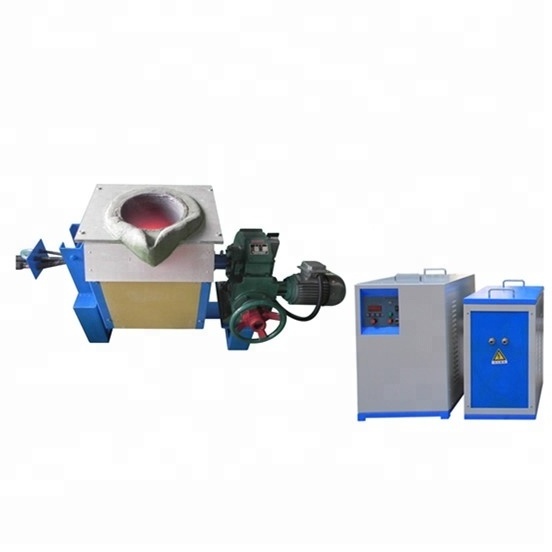

Medium Frequency Cast Iron Aluminum Steel Induction Melting Furnac e
1. Easy to change melting materials and control melting quality.
2. The machine can be operated flexibly and simply with high power density, fast melting, higher heating efficiency.
3. Provide you with a favorable environment of low energy consumption, high efficiency, less oxidation and lower pollution.
4. Light in weight and easy to install.
A standard melting equipment includes: power supply + tilting furnace + induction coil + crucible.
Melting
Non-ferrous and ferrous metals melting
Precious metal melting, like gold, sliver, platinum, etc.
Semiconductor material melting
Specialized steel, iron, copper melting.
Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy, etc.
|
Model Technical Parameter |
GS-MF-20 |
GS-MF-30 |
GS-MF-40 |
GS-MF-50 |
GS-MF-60 |
|
Working power |
Three phase 380v/50-60hz |
Three phase 380v/50-60hz |
Three phase 380v/50-60hz |
Three phase 380v/50-60hz |
Three phase 380v/50-60hz |
|
Working voltage |
342-430v |
342-430v |
342-430v |
342-430v |
342-430v |
|
Maximum Output power(kw) |
20 |
30 |
40 |
50 |
60 |
|
Max Input Current(A) |
30 |
45 |
60 |
75 |
90 |
|
Oscillation Frequency(Khz) |
2-10 |
2-10 |
2-10 |
2-10 |
2-10 |
|
Cooling water Pressure(Mpa) |
0.15Mpa |
0.15Mpa |
0.15Mpa |
0.3Mpa |
0.3Mpa |
|
Cooling Water Flow(L/min) |
6L/min |
6L/min |
7L/min |
8L/min |
8L/min |
|
Generator Size(mm) |
460x270x510 |
580x280x510 |
460x360x630 |
650x280x560 |
590x450x780 |
|
Transformer Size(mm) |
/ |
/ |
320x320x310 |
580x300x510 |
420x355x450 |
|
Generator Weight(kg) |
25 |
45 |
60 |
65 |
65 |
|
Transformer Weight(kg) |
/ |
/ |
40 |
43 |
43 |
1. On the outside, packing fumigation wooden cases for induction heating machine.
2. Inside part, packing plastic film, in case of the friction of the induction heating machine.
3. Induction coil is packaged inside.
4. The induction heating machine can be transported by ship air or train.
Before-sale Service
1. Consultation
--- detailed understand your requirements and basic information
2. Recommendation
---give you professional suggestions and recommend appropriate equipment.
3. Customization
---meet your special needs to provide machines work best
After-sale Service
1. One year warranty;
2. Long-term technical service;
3. Overseas on-site technician service is satisfied
---engineer will be dispatched to your factory to install machine and train your works.
