With optional classes for installation styles:
Single phase, vacuum recloser and Three phase, vacuum recloser. With optional relay protection curves for user choice: Instantaneo
us over-current protection.
Timing over-current protection.
Negative sequence over-current protection. Directional over-current protection(*).
Over-voltage protection./Under voltage protection. More relay functions can be customized.
With optional choice by locally or remotely.
With optional communication protocols & I/O port for user choice: RS-232 and RS-485 ports supporting.
DNP3.0 communication protocol support(*). Modbus communication protocol is optional(*). IEC 60870-5-101 communication protocol
support.
IEC 60870-5-104 communication protocol support.(*).
The recloser can communicate through GPRS(Or GSM) modem with English or Chinese language (*). With optional functions for user.
Rated currents, System phase current.
Rated voltages, System phase voltage& secondary low voltage power supply voltage. Frequency, power(kWh), reactive power(kV arh),
power factor .
With optional reclosing interval for user pre-program: Reclosing times setting support.
Dead time setting support.
With events recording function: SOE 1000 operations record.
Fault record and normal operation record.
Note: (*) mean should customized by manufacturer if needed.
- Product Details
- {{item.text}}
Quick Details
-
Air temperature:
-
-45℃-+85℃
-
Humidity:
-
Monthly average humidity 95%; Daily average humidity 90%
-
Altitude above sea level:
-
2500m or more higher
-
barometric:
-
Summer barometric 84.7Kpa(635mmHg) Winter barometric 85.6Kpa(642mmHg)
-
Rated current:
-
400/630/800/1250 A
-
Rated frequency:
-
50/60 Hz
-
Rated operating circulate:
-
O-0.5S-CO-2S-CO-5S-CO
-
Mechanism life:
-
200 time
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
F-FTU200
-
Product name:
-
auto recloser
-
Air temperature:
-
-45℃-+85℃
-
Humidity:
-
Monthly average humidity 95%; Daily average humidity 90%
-
Altitude above sea level:
-
2500m or more higher
-
barometric:
-
Summer barometric 84.7Kpa(635mmHg) Winter barometric 85.6Kpa(642mmHg)
-
Rated current:
-
400/630/800/1250 A
-
Rated frequency:
-
50/60 Hz
-
Rated operating circulate:
-
O-0.5S-CO-2S-CO-5S-CO
-
Mechanism life:
-
200 time
Product Description
Specification
Summary
Four-faith Smart Power strives to bring our customers the latest technology and competitive pricing and best service for distribut
ion automatic.

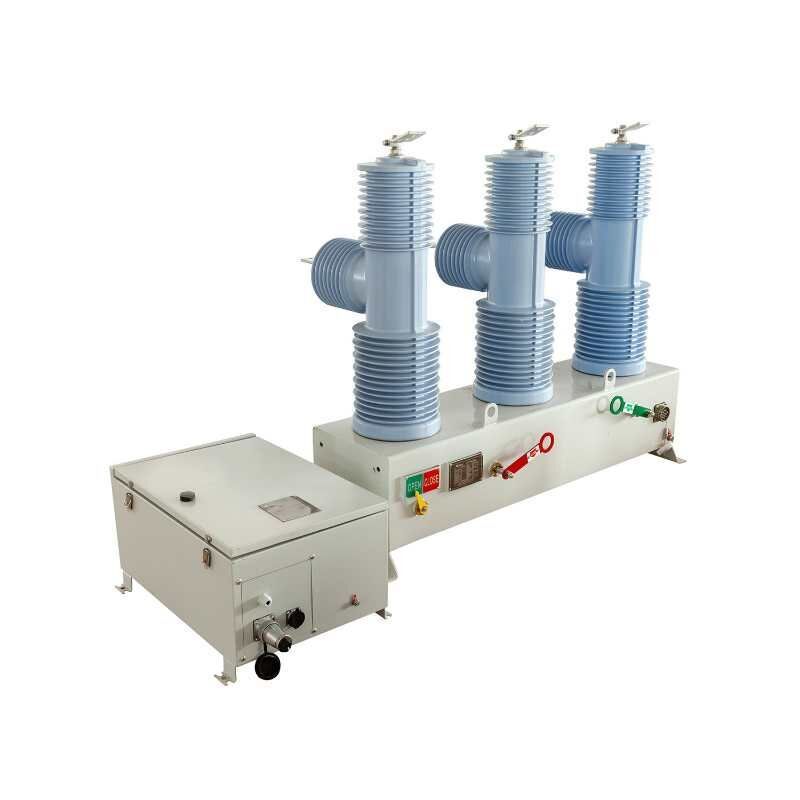

The F-OCB series automatic circuit reclosers can use on overhead distribution lines as well as distribution substation applicati
ons for all voltage classes 11kV up to 38kV at 50/60Hz power system. and it’s rated current can reach 1250A.
The F-OCB series automatic circuit reclosers integrates the functions of control, protection, measurement, communication, fault de
tection, on-line monitoring of closing or opening.
Four-faith Smart Power strives to bring our customers the latest technology and competitive pricing and best service for distribut
ion automatic.
The F-OCB series automatic circuit reclosers can use on overhead distribution lines as well as distribution substation applicati
ons for all voltage classes 11kV up to 38kV at 50/60Hz power system. and it’s rated current can reach 1250A.
The F-OCB series automatic circuit reclosers integrates the functions of control, protection, measurement, communication, fault de
tection, on-line monitoring of closing or opening.
Service environment
1.Air temperature: Maximum temperature: +85℃; Minimum temperature:-45℃
2.Humidity: Monthly average humidity 95%; Daily average humidity 90% .
3.Altitude above sea level: Maximum installation altitude: 2500m or more higher.
4.Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
5.Summer barometric 84.7Kpa(635mmHg) Winter barometric 85.6Kpa(642mmHg) Max wind speed 34m/s
6.Humidity of 13mg and Vapour Pressure 17mm/Hg. No frequent violent shake.
1.Air temperature: Maximum temperature: +85℃; Minimum temperature:-45℃
2.Humidity: Monthly average humidity 95%; Daily average humidity 90% .
3.Altitude above sea level: Maximum installation altitude: 2500m or more higher.
4.Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
5.Summer barometric 84.7Kpa(635mmHg) Winter barometric 85.6Kpa(642mmHg) Max wind speed 34m/s
6.Humidity of 13mg and Vapour Pressure 17mm/Hg. No frequent violent shake.
Offering
|
Item
|
Unit
|
Data
|
|
|
||
|
Rated voltage
|
kV
|
11/15
|
27
|
38
|
||
|
Rated current
|
A
|
400/630/800/1250
|
|
|
||
|
Rated frequency
|
Hz
|
50/60
|
|
|
||
|
Rated short circuit breaking current
|
kA
|
12.5/16/20/25
|
|
|
||
|
Rated short current switching current(peak)
|
kA
|
31.5/40/50/63
|
|
|
||
|
Lightning impulse withstand voltage(peak)
|
kV
|
95/110
|
125/165
|
170/200
|
||
|
Rated peak value withstand current
|
kA
|
31.5/40/50/63
|
|
|
||
|
4S short time withstand current
|
kA
|
12.5/16/20/25
|
|
|
||
|
Rated operating circulate
|
|
O-0.5S-CO-2S-CO-5S-CO
|
|
|
||
|
Breaking current frequency under rated short circuit
|
time
|
200
|
|
|
||
|
Mechanism life
|
time
|
30000
|
|
|
||
|
Secondary loop 1 min power frequency withstand
|
kV
|
2
|
|
|
||
