Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
PanHeng
-
Wheel Material:
-
Iron Core PU
-
Wheel Diameter:
-
100/125/150/200mm
-
Wheel Width:
-
50mm
-
Top Plate Size:
-
115*100mm
-
Hole Spacing Size:
-
84*71mm
-
Hole Size:
-
11mm
-
Loading Capacity:
-
270/320/380/430kg
-
Loading Height:
-
144/165/191/242mm
Quick Details
-
Material:
-
Iron, POLYURETHANE
-
Type:
-
Plate Casters
-
Model Number:
-
100-DT-PI1-H
-
Place of Origin:
-
China
-
Brand Name:
-
PanHeng
-
Wheel Material:
-
Iron Core PU
-
Wheel Diameter:
-
100/125/150/200mm
-
Wheel Width:
-
50mm
-
Top Plate Size:
-
115*100mm
-
Hole Spacing Size:
-
84*71mm
-
Hole Size:
-
11mm
-
Loading Capacity:
-
270/320/380/430kg
-
Loading Height:
-
144/165/191/242mm

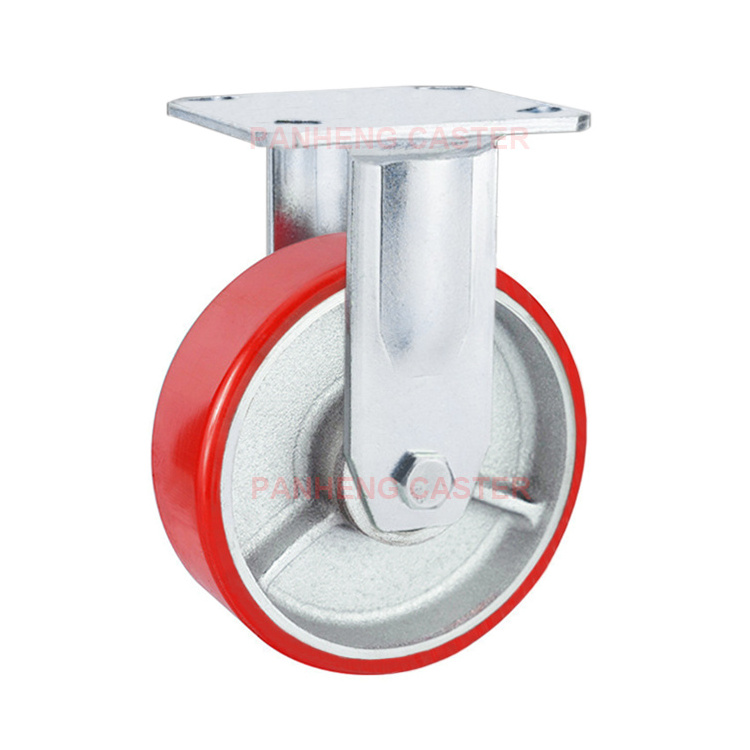

100mm 125mm 150mm 200mm Iron Core PU Fixed Heavy Duty Top Plate Caster
| Model |
Wheel Material |
Diameter(mm) |
Wheel Width(mm) |
Height(mm) |
Size(mm) |
Hole Spacing Size(mm) |
Hole Size(mm) |
Loading Weight(kg) |
| 100-DT -PI1-H | Iron Core PU | 100 | 50 | 144 | 11 5 *10 0 | 84*71 | 11 | 270 |
| 125-DT -PI1-H | Iron Core PU | 125 | 50 | 165 | 11 5 *10 0 | 84*71 | 11 | 320 |
| 150-DT -PI1-H | Iron Core PU | 150 | 50 | 191 | 11 5 *10 0 | 84*71 | 11 | 380 |
| 200-DT -PI1-H | Iron Core PU | 200 | 50 | 242 | 11 5 *10 0 | 84*71 | 11 | 430 |
