Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
BV,BVR
-
Product name:
-

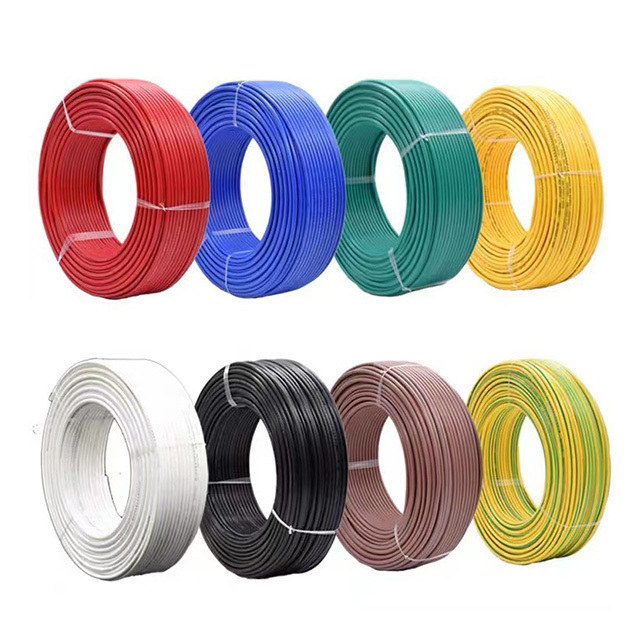

single core copper conductor PVC insulated wire
-
Material:
-
Copper+PVC
-
Colour:
-
red/yellow/blue/green/yellow green
-
Rated Voltage:
-
450/750V
-
Packing:
-
100m/roll
-
Specification:
-
1.5mm²-400mm²
-
Conductor:
-
99.9% Pure Copper
-
Certification:
-
Certification
-
Core:
-
1 Core
-
Warranty:
-
100%quanlified
Quick Details
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
BV,BVR
-
Product name:
-
single core copper conductor PVC insulated wire
-
Material:
-
Copper+PVC
-
Colour:
-
red/yellow/blue/green/yellow green
-
Rated Voltage:
-
450/750V
-
Packing:
-
100m/roll
-
Specification:
-
1.5mm²-400mm²
-
Conductor:
-
99.9% Pure Copper
-
Certification:
-
Certification
-
Core:
-
1 Core
-
Warranty:
-
100%quanlified
Product Paramenters
|
Product Name
|
Copper conductor PVC insulated wire
|
|
Material
|
Copper+PVC
|
|
Colour
|
red/yellow/blue/green/yellow green
|
|
Adaptable Voltage (v)
|
450/750, 300/500
|
|
Specification
|
1.5㎟-400㎟
|
|
MOQ
|
100m
|
1.Product standard
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
2.Product feature
1,Uo/U is 450/750V,300/500V,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
3.Application
a. Use as home appliance wiring cable, building wire
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable
Product parameter
|
Voltage level (V)
|
Nominal section (mm²)
|
Number of conductors
|
Toplimit of overalldiameter(mm)
|
Maximum DC
resistance (20℃) (Ω/km) |
Minium insulation
resistance (20℃) (MΩ·km) |
Recommended
value of carring capacity (A) |
Reference weight
(kg/km) |
|
300/500
|
0.5
|
1
|
2.3
|
36
|
0.015
|
13
|
8.3
|
|
|
0.75
|
7
|
2.6
|
24.5
|
0.012
|
17
|
10.9
|
|
|
0.75
|
1
|
2.7
|
24.5
|
0.014
|
17
|
11.8
|
|
|
1
|
7
|
2.8
|
18.1
|
0.011
|
20
|
13.7
|
|
|
1
|
1
|
3
|
18.1
|
0.013
|
20
|
14.8
|
|
|
1.5
|
1
|
3.2
|
12.1
|
0.011
|
25
|
20.0
|
|
|
1.5
|
7
|
3.3
|
12.1
|
0.01
|
25
|
21.3
|
|
|
2.5
|
1
|
3.9
|
7.41
|
0.01
|
34
|
31.5
|
|
|
2.5
|
7
|
4
|
7.41
|
0.009
|
34
|
34.4
|
|
|
4
|
1
|
4.4
|
4.61
|
0.0085
|
44
|
46.8
|
|
|
4
|
7
|
4.6
|
4.61
|
0.0077
|
44
|
48.1
|
|
|
6
|
1
|
5
|
3.08
|
0.007
|
58
|
65.1
|
|
|
6
|
7
|
5.2
|
3.08
|
0.0065
|
58
|
68.8
|
|
|
10
|
7
|
6.7
|
1.83
|
0.0065
|
79
|
111
|
|
|
16
|
7
|
7.8
|
1.15
|
0.005
|
111
|
166
|
|
|
25
|
7
|
9.7
|
0.727
|
0.005
|
146
|
263
|
|
|
35
|
7
|
10.9
|
0.524
|
0.004
|
180
|
356
|
|
|
50
|
19
|
12.8
|
0.387
|
0.0045
|
228
|
487
|
|
|
70
|
19
|
14.6
|
0.268
|
0.0035
|
281
|
679
|
|
|
95
|
19
|
17.1
|
0.193
|
0.0035
|
344
|
932
|
|
|
120
|
37
|
18.8
|
0.153
|
0.0032
|
397
|
1163
|
|
|
150
|
37
|
20.9
|
0.124
|
0.0032
|
456
|
1424
|
|
|
185
|
37
|
23.3
|
0.0991
|
0.0032
|
519
|
1789
|
|
|
240
|
61
|
26.6
|
0.0754
|
0.0032
|
592
|
2335
|
|
|
300
|
61
|
29.6
|
0.0601
|
0.003
|
685
|
2924
|
|
|
400
|
61
|
33.2
|
0.047
|
0.0028
|
799
|
3750
|
