Quick Details
-
Product name:
-

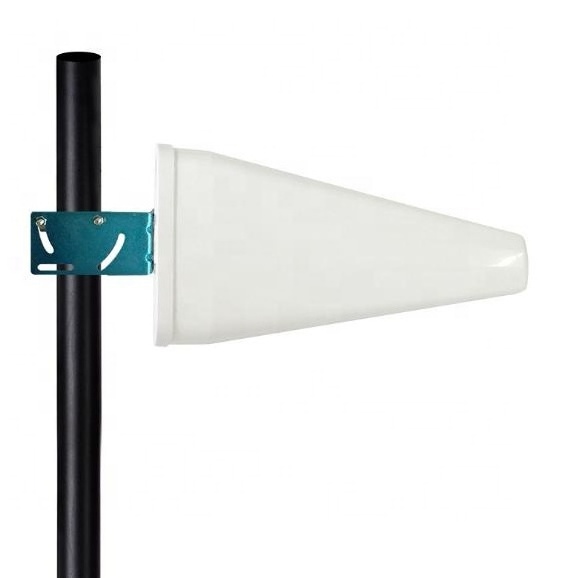

698-2700MHz Logarithmic Periodic Antenna
-
Frequency range(MHz):
-
698-960/ 1710-2700
-
Bandwidth(MHz):
-
262/990
-
Polarization:
-
Vertical
-
Gain(dBi):
-
10/11
-
Input connector type:
-
N Female or request
-
Lightning protection:
-
DC Ground
-
VSWR:
-
≤1.5
-
Maximum input power(W):
-
50
-
Input Impedance(Ω):
-
50
Quick Details
-
Brand Name:
-
AMEISON
-
Model Number:
-
AMXL-7027-11
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
698-2700MHz Logarithmic Periodic Antenna
-
Frequency range(MHz):
-
698-960/ 1710-2700
-
Bandwidth(MHz):
-
262/990
-
Polarization:
-
Vertical
-
Gain(dBi):
-
10/11
-
Input connector type:
-
N Female or request
-
Lightning protection:
-
DC Ground
-
VSWR:
-
≤1.5
-
Maximum input power(W):
-
50
-
Input Impedance(Ω):
-
50
CDMA GSM LTE 3G 4G Wideband Outdoor Log periodic Yagi Antenna for mobile phone cellular signal device
Features:
• Ideal for Homes, Small Offices & Workspace
• Improve the signal of repeater booster amplifier
• Suitable For 3G 4G LTE Internet Signals
• High Gain Directional Outdoor Antenna
• Works With Multiple Devices
Application
:
WiMax/GSM/CDMA/PCS/3G/4G/LTE/WLAN system
Wireless Communications and data transmission system
Outdoor directional coverage
|
AMXL-7027-11 Electrical Specifications |
|
|
Frequency range(MHz) |
698~960/1710~2700 |
|
Bandwidth(MHz) |
262/990 |
|
Gain(dBi) |
10/11 |
|
Half-power beam width(°) |
H:65/50 V:55/40 |
|
VSWR |
≤1.5 |
|
Input Impedance(Ω) |
50 |
|
Polarization |
Vertical |
|
Maximum input power(W) |
50 |
|
Lightning protection |
DC Ground |
|
Input connector type |
N Female |
|
Mechanical Specifications |
|
|
Dimensions (mm) |
445*210*65 |
|
Antenna weight(kg) |
0.91 |
|
Operating temperature(°c) |
-40~60 |
|
Rated Wind Velocity(m/s) |
60 |
|
Radome material |
ABS |
|
Radome color |
white |
|
Mounting hardware(mm) |
35 - 50 |
