1.Mesh is not easy to block, automatic cleaning brush on the top of trommel screen to avoid the blockage.
2.Smooth operation, low noise.
3.High screening efficiency, Large screening capacity
4.Simple structure, easy maintenance.
5.Sieve drum can be closed, easy to close the dust collection.
6. Convenient maintenance, the upper hood is removable.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KARP
-
Voltage:
-
380-460V
-
Dimension(L*W*H):
-
According to model
-
Weight:
-
According to model
-
Warranty:
-
13 months
-
Product name:
-
Sand And Stone Separating Machine Rotating Trommel Screen
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Dia of drum:
-
400-2000 mm
-
Mesh size:
-
2-200 mesh
-
Layers:
-
1-5
-
Screening capacity:
-
50 kg~20 ton per hour
-
Driving unit:
-
Electric motor
-
Function:
-
Grading/ filtering
-
OEM:
-
Acceptable
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product 2020
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KARP
-
Voltage:
-
380-460V
-
Dimension(L*W*H):
-
According to model
-
Weight:
-
According to model
-
Warranty:
-
13 months
-
Product name:
-
Sand And Stone Separating Machine Rotating Trommel Screen
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Dia of drum:
-
400-2000 mm
-
Mesh size:
-
2-200 mesh
-
Layers:
-
1-5
-
Screening capacity:
-
50 kg~20 ton per hour
-
Driving unit:
-
Electric motor
-
Function:
-
Grading/ filtering
-
OEM:
-
Acceptable
-
Certification:
-
CE ISO
Product Description
Sand And Stone Separating Machine Firewood Gold Gravel Rotating Small Waste Trommel Screen
's main structure is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction. When the materials enters the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface is overturned and rolled so that the fine material is discharged through the discharge port at the bottom of the back end of the drum of trommel screen, and the coarse material is discharged through the discharge port at the tail of the drum discharge. As the material in the drum devise flip, rolling, so the materials stuck in the sieve can be ejected to prevent the sieve blocking.
FEATURES
|
Application
|
Aggregate screening
|
|
Mesh size
|
3mm
|
|
Screening capacity
|
20t/h
|
|
Drum size
|
Diameter: 1000mmLength:3000mm
|
|
Manufacturing material
|
carbon steel
|
KARPMACHINERY make strict inspections for
Sand And Stone Separating Machine Firewood Gold Gravel Rotating Small Waste Trommel Screen
before producing, during producing, before shipment. Inspection item include mesh size, mesh cloth tension, motor temprature, dimesion, noisy, vibration amplitude ect. Inspection reach ISO 2194 Wire screens and plate screens for industrial purposes Nominal sizes of apertures.

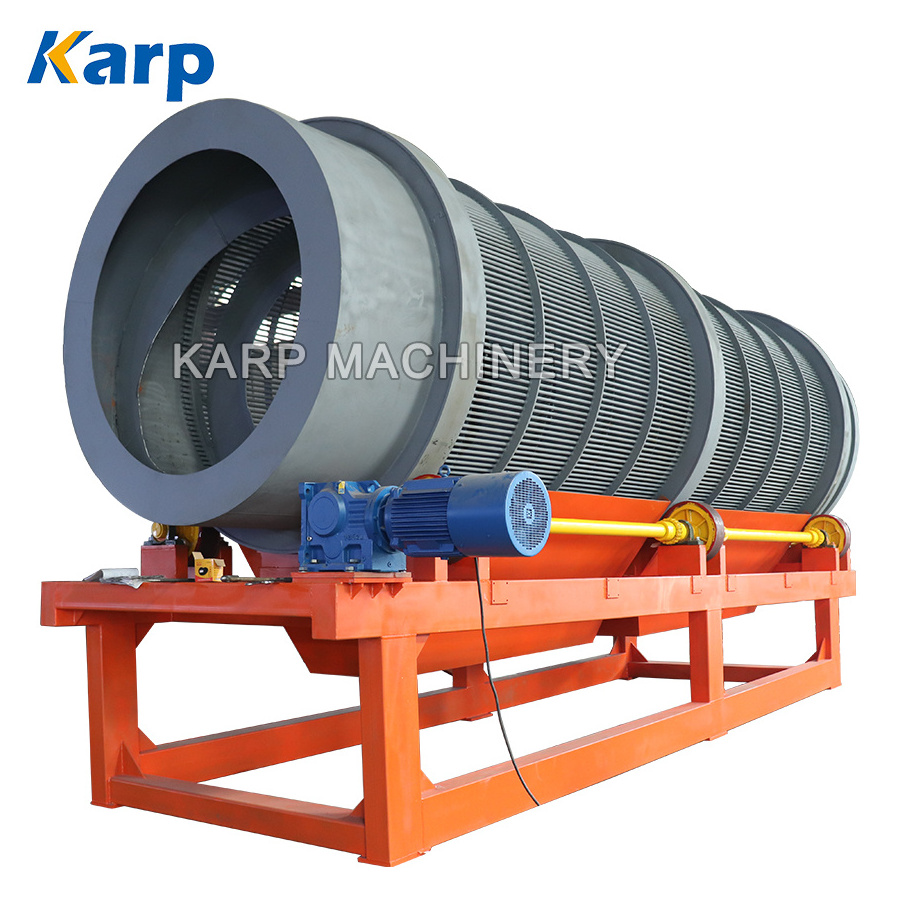

Detailed Images
Sand And Stone Separating Machine Firewood Gold Gravel Rotating Small Waste Trommel Screen
consisit of Drum, cover, frame, driving unit and inlet and discharge port, and so on.
Technical Parameters
|
Model
|
Capacity
(m³/h)
|
Power
(kw)
|
Drum diameter
(mm)
|
Drum length
(mm)
|
Discharge Size
(mm)
|
|
YT620
|
1-5
|
0.75
|
600
|
2000
|
0-100
|
|
YT825
|
2-10
|
1.1
|
800
|
2500
|
|
|
YT1030
|
10-30
|
2.2
|
1000
|
3000
|
|
|
YT1235
|
20-50
|
4
|
1200
|
3500
|
|
|
YT1540
|
40-80
|
5.5
|
1500
|
4000
|
|
|
YT1850
|
80-150
|
7.5
|
1800
|
5000
|
|
Related Products
Company Introduction
1. Your sample material can be free analysised in our laboratory.
2. 24 hours/365 days online & quick response within 12 hours.
3. Warranty period: 13month
4. Production lead time and delivery time guaranteed.
5. Help high-end customers to develop the local market
6. All packing and shipping can customized as per your requirements.
2. 24 hours/365 days online & quick response within 12 hours.
3. Warranty period: 13month
4. Production lead time and delivery time guaranteed.
5. Help high-end customers to develop the local market
6. All packing and shipping can customized as per your requirements.
Xinxiang KARP Machinery Equipment., CoLtd is one of leading manufacturer of vibrating screen sifter, conveying machines, feeding machines, elevating machines and related products with 11 years designing and manufacturing experiences.
Our main products are vibrating screen, Sand And Stone Separating Machine Firewood Gold Gravel Rotating Small Waste Trommel Screen , rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, scraper conveyor, vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, pharmaceutical, chemical, metallurgy, building materials, mining, environmental protection and other fields. Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
We are committed to solve all screening and conveying problems of bulk materials. Depending on the quality as the life of
enterprise,we will with professional solution, high quality products, perfect service to win our customer's approval.
Our main products are vibrating screen, Sand And Stone Separating Machine Firewood Gold Gravel Rotating Small Waste Trommel Screen , rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, scraper conveyor, vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, pharmaceutical, chemical, metallurgy, building materials, mining, environmental protection and other fields. Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
We are committed to solve all screening and conveying problems of bulk materials. Depending on the quality as the life of
enterprise,we will with professional solution, high quality products, perfect service to win our customer's approval.
FAQ
Common questions of
Sand And Stone Separating Machine Firewood Gold Gravel Rotating Small Waste Trommel Screen
.
Q: What information do I need to provide for getting an accurate quotation?
A: 1. the raw material information, the material name, water content (dry or wet), bulk density.
2. what's your purpose? grading, filtering or removing impurity?
3. how many layers do you need?
4. what's the mesh size___(mm/ mesh) for each layer?
5. how is the handling capacity__kgs per hour?
6. what's your local voltage_ volt, and frequency__Hz?
7. other special requirement, such as construction material.
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 13 months from the shipping date.
A: 1. the raw material information, the material name, water content (dry or wet), bulk density.
2. what's your purpose? grading, filtering or removing impurity?
3. how many layers do you need?
4. what's the mesh size___(mm/ mesh) for each layer?
5. how is the handling capacity__kgs per hour?
6. what's your local voltage_ volt, and frequency__Hz?
7. other special requirement, such as construction material.
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 13 months from the shipping date.
