Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunworld
-
Model Number:
-
YC-SM10HR
-
Material:
-
Plastic case
-
Wireless Protocol:
-
WiFi, BT, IR
-
System:
-
Linux version 4.4.192V2.4
-
Main chip model:
-
AK3760E
-
RAM:
-
64MB
-
ROM:
-
128MB
-
Battery:
-
1100mA/ 3.7V
-
usb:
-
Micro USB
-
Control:
-
Touch Screen and Key Control
-
Screen Resolution:
-
320*240
Quick Details
-
Max. Current:
-
2A
-
Max. Voltage:
-
DC 5V
-
Network:
-
Wifi
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunworld
-
Model Number:
-
YC-SM10HR
-
Material:
-
Plastic case
-
Wireless Protocol:
-
WiFi, BT, IR
-
System:
-
Linux version 4.4.192V2.4
-
Main chip model:
-
AK3760E
-
RAM:
-
64MB
-
ROM:
-
128MB
-
Battery:
-
1100mA/ 3.7V
-
usb:
-
Micro USB
-
Control:
-
Touch Screen and Key Control
-
Screen Resolution:
-
320*240

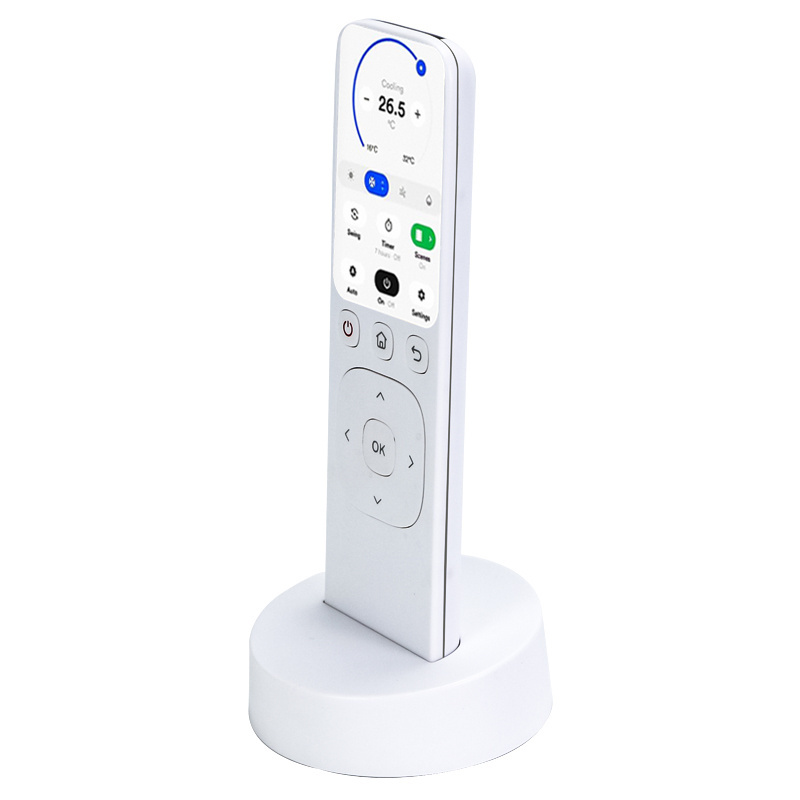

Sunworld Linux system for remote control 64MB ram wifi IR Touch Handheld Smart Screen for home automation
Product Description
Features:
1. Handheld smart home reomot control screen
2. Touch screen & Physical control buttons
3. Charging docking station
4. Support Tuya WiFi / BT
5. Linux system
Specification
| Basic Specs | Model Number | YC-SM10HR | |
| Color | White / Black | ||
| Material | Plastic case | ||
| Power input | DC 5V 2A | ||
| Wireless Protocol | WiFi, BT, IR | ||
| Product Dimension | Main Product: 185mm*52mm*15.5mm | ||
| Table Stand: φ84.2mm*28.8mm | |||
| Hardware Specs | Main chip model | AK3760E | |
| Operating System | Linux version 4.4.192V2.4 | ||
| RAM | 64MB | ||
| ROM | 128MB | ||
| Screen | Size : 2.44 inches | ||
| Resolution : 320*240 | |||
| Genre : Multi-touch capacitive screen | |||
| Battery | 1100mA/3.7V | ||
| USB | Micro USB | ||
| Function | Control Protocol | Wi-Fi , IR | |
| Control Device |
Whole house equipment intelligent control (support LAN control)
Directly controllable device : IR Devices , Tuya's ecological WiFi Device. Indirectly controllable device : The handheld smart screen needs to cooperate with a gateway (RF remote control) to control BT and Zigbee devices (RF devices). |
||
| IR Code Library |
Including 5000+ brands, 20000+ remote control
codes,and real-time updates are available. |
||
| Control | Touch screen and key control | ||
| Display Function Description | Front Page | Homepage displays weather, time, date, week, homepage quick control. | |
| Equipment List Display | Support various Tuya's ecological equipment, such as: Sockets, switches, curtains, thermostats, air conditioners, fresh air fans, lighting fixtures, drying racks, etc. | ||
| Scene List Display |
Support APP setting scene, can quickly edit scene and send to handheld smart screen.
Support scene one-click execution and dynamic display. |
||
| battery status management | Low battery warning prompt | ||
| Settings | Shortcut key settings, system upgrade, device restart reset, brightness adjustment, etc. | ||
| Remote Control |
Rich infrared code library .You can locally control infrared devices such as air conditioners, TVs, set-top boxes, fans, IPTV boxes, infrared lights, projectors,
|
||
About us
FAQ
1. Can you accept sample order?
A: Yes.
2. How long does it take to deliver the sample?
A: It depends on different products, it usually takes 10-15 days.
3. What's your Mini Order Quantity(MOQ)?
A: It depends on different products, for tablet pc 1000-2000 pieces.
4. What payment term you can accept?
A: For sample, T/T or West Union is available, for big order by T/T, West Union or L/C.
5. How to ship the goods to us?
A: For the sample or small quantity, by DHL For big order, normally by sea shipment or by air shipment.
6. Can we have our own logo printed on the product or package?
A: For sample, it usually be neutral. For big order, it supports customized logo.
7. How much will the customized logo cost?
A: For big order, if your quantity up to our MOQ, it usually be free.
OEM / ODM are highly welcome!
Trial order is acceptable!
We are the factory, the price must be very competitive.
