Quick Details
-
Flatness:
-
4L~L/10, L/2 - L/10
-
Warranty:
-
1 month
-
Place of Origin:
-
Jilin,China
-
Brand Name:
-
ZOOLIED
-
Model Number:
-
N041
-
Shape:
-
Trianglar Prism
-
Dimension:
-
0.45-300mm
-
Dimensional tol:
-
±0.1mm
-
Angle tol:
-
less than 3 min
-
S/D:
-
60/40 - 40/20
-
Chamfer:
-
Protective Chamfer
-
Bevel:
-
Protective bevel as needed
-
Coating type:
-
Uncoated, AR,HR or metallic
Quick Details
-
Material:
-
Optical glass, BK7, Fused Silica,ZF13, etc
-
Dimension Tolerance:
-
+/-0.1mm
-
Angle Tolerance:
-
3secs - 3 mins
-
Flatness:
-
4L~L/10, L/2 - L/10
-
Warranty:
-
1 month
-
Place of Origin:
-
Jilin,China
-
Brand Name:
-
ZOOLIED
-
Model Number:
-
N041
-
Shape:
-
Trianglar Prism
-
Dimension:
-
0.45-300mm
-
Dimensional tol:
-
±0.1mm
-
Angle tol:
-
less than 3 min
-
S/D:
-
60/40 - 40/20
-
Chamfer:
-
Protective Chamfer
-
Bevel:
-
Protective bevel as needed
-
Coating type:
-
Uncoated, AR,HR or metallic
|
Material
|
BK7, Fused Silica,ZF13, etc
|
|
Shape
|
Trianglar Prism
|
|
Dimension
|
0.45-300mm
|
|
Dimensional tol
|
±0.1mm
|
|
Angle tol
|
less than 3 min
|
|
Flatness
|
L/2 - L/10
|
|
S/D
|
60/40 - 40/20
|
|
Chamfer
|
Protective Chamfer
|
|
Bevel
|
Protective bevel as needed
|
|
Coating type
|
Uncoated, AR,HR or metallic
|

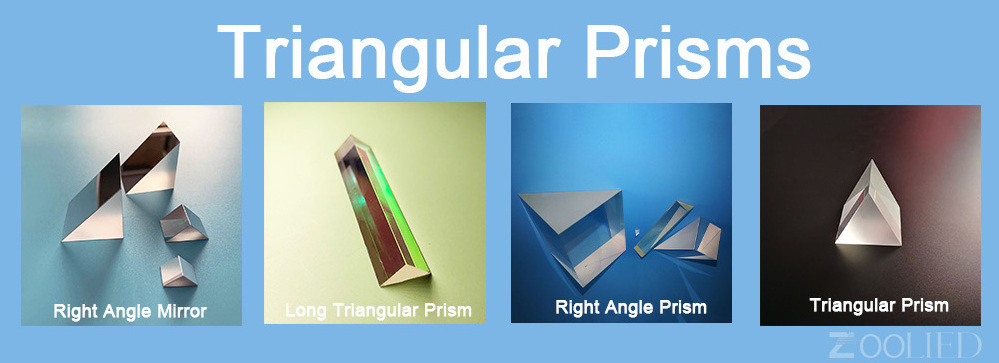

An Optical glass prism is a solid, transparent optical element that can change the path of light. Triangular prisms are high precision prisms with a triangular optical cross-section. They are a kind of dispersive prisms that can cause polychromatic light to be dispersed when passing through the prism. Light enters through one surface and scatters before exiting through another surface. The triangular prism is an important component in the optical system. Because of its strong ability to change the image, it is widely used in general optical instruments such as telescopes or binoculars in the fields of science, medical care and industry.
Compared with typical mirrors, triangular Optical Prisms have significant advantages because they have greater resistance to mechanical loads and external stress. This makes them more suitable for applications that operate under harsh conditions, such as vibration or rapid motion. Triangular Optical glass prisms also provide huge improvements in ease of installation and alignment, thereby reducing application complexity, cost and time to market.
Zoolied offers a variety of Optical glass beamsplitter Prisms, such as N-BK7 Beamsplitter Prisms, K9 Right Angle Prisms, fused silica Prisms. Zoolied provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or Infrared (IR) and also provides uncoated optical glass prism based on K9 optical glass and UV fused silica. Looking for ideal Triangular Optical glass prism Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Triangular Optical glass prisms are quality guaranteed. Zoolied is China Origin Factory of Optical glass beamsplitter. If you have any question, please feel free to contact us.
