Quick Details
-
Description:
-
7" widescreen small field monitor used for photo studio accessories F7
-
Inputs:
-
HDMI input&output; Audio video
-
frame:
-
plastic outer frame
-
color:
-
black
-
resolution:
-
1920x1200
-
Install Way:
-
1/4"-20 Thread Socket
-
application:
-
camera;tripod; broadcast
-
design:
-
super slim
-
Product name:
-
Photography
-
Keywords:
-
laptop monitor
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Feelworld
-
Model Number:
-
F7
-
Description:
-
7" widescreen small field monitor used for photo studio accessories F7
-
Inputs:
-
HDMI input&output; Audio video
-
frame:
-
plastic outer frame
-
color:
-
black
-
resolution:
-
1920x1200
-
Install Way:
-
1/4"-20 Thread Socket
-
application:
-
camera;tripod; broadcast
-
design:
-
super slim
-
Product name:
-
Photography
-
Keywords:
-
laptop monitor

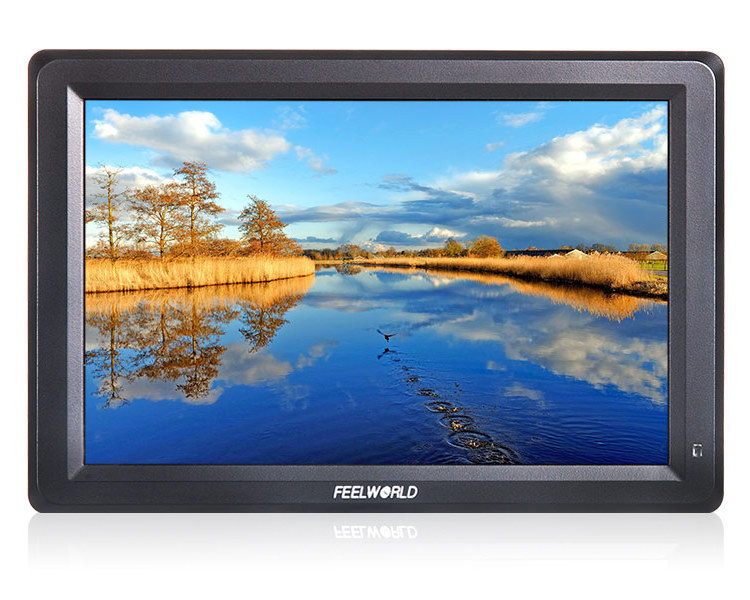

7" widescreen small field monitor used for photo studio accessories F7
Full HD 1920x1200
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), the pixel density of the F7 packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can't define individual pixels. Sharper images, brings you the perfect visual experience.
7" widescreen small field monitor used for photo studio accessories F7
Display Spec.
| Model | F7 |
| Screen Size | 7" IPS |
| Resolution | 1920x1200 pixels |
| Pixe Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X HDMI | HDMI |
| 1 X HDMI | HDMI |
| Audio Out | Stereo Headphone, Speaker |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98)
|
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98)
|
| Input Voltage | DC7~24V |
| Power Consumption | ≤8W |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Socket (top, bottom) |
| Battery Plate | F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
| Unit Size | 180Lx120Hx22.95D (mm) |
| Unit Weight | 280g/310g (With F970 Plate) |
| * Brightness Histogram |
| * Embedded Audio |
| * Peaking Focus Assist (has High-Low level to adjust; Red, Yellow, Blue, White four color optional highlight over parts of the image in focus) |
| * False Colors |
| * Zebra Exposure (0-100IRE adjustable) |
| * Check Field (Red,Green,Blue,Mono) |
| * Camera Mode |
| * Scan Mode (Auto,Over Scan, Full Screen) |
| * Zoom (Auto,4x,9x,16x) |
| * Anamorphic Mode (1.3x,2.0x,2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Nine Grid (Zoom one of the images to realize the full screen) |
| * Pixel-to-Pixel |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%) |
| * Marker Types (16:9,4:3,2.35:1,1.85:1) |
| * Color Temperature Adjustment |
IPS Wider View Angle 160°
Enjoy consistent images from any perspective
High Quality: no brightened dot, no streaking
160° Wider View Angle: enjoy consistent images from any perspective.
More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels.
Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 22.95mm thickness 280g the F7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
Multiple Installations
Standard Two 1/4"-20 Thread Socket
SEETEC F7 is equipped with two standard 1/4 hole (top and bottom), easy to install DSLR Rig, Camcorder Kit, Handheld Stabilizer,
Video Camera Crane, combined with image flip function, convenient for field shooting.
New Generation Collapsable Sunshade
For easier viewing in bright environments. F7 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast
Flexible Battery System
The F7 has a flexible battery system that supports F970 battery plate (standard), D28S/
D54
, E6 and U60 battery plate (optional),and also can powered by power adapter (optional).
1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. Suport 4K HDMI UHD 3840×2160p (30/29.97/25/24/23.98) Input/ Output
4. High Brightness: 450cd/m²
5. 160°wide viewing angles IPS Panel
6. Ultra thin design 17mm thickness
7. Histogram
8. Peaking Focus Assist (Red,Yellow,Blue,White four color optional highlight over parts of the image in focus)
9. False Colors
10. Zebra Exposure
11. Squared Segmentation
12. Embedded Audio Meter
13. Camera Mode
14. Scan Mode (Over, Under)
15. Zoom (Auto,4x,9x,16x)
16. Anamorphic Mode (1.3x,2.0x,2.0x mag)
17. Pixel to Pixel
18. Center Marker
19. Safe Area (80%,85%,90%,93%,96%)
20. Marker Type (16:9,4:3,2.35:1,1.85:1)
21. Marker Color (Red,Green,Blue,White,Black,Cyan,Purple,Yellow)
22. Check Field (Gray/Red/Green/Blue)
23. Image Flip (H, V, H/V)
24. Image Freeze
25. Color Temperature Adjustment
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB
.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear.You can switch the putline color between red,yellow,blue and white according to different tone of the subject.Peaking focus assist of FW760 has High-low level to adjust,and also available during video zoom-in.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas.0-100IRE adjustable.
