Quick Details
-
Brand Name:
-
Tmeasurement
-
Model Number:
-
YFD-300
-
Measuring Range(mm):
-
0 ~ 10000
-
Sensitivity Leavings:
-
≥62dB
-
Dynamic range:
-
≥34dB
-
Resolving Power:
-
≥36dB
-
Material Velocity(m/s):
-
1000 ~ 15000
-
Frequency Range(MHz ):
-
0.5 ~ 20
-
Gain(dB):
-
0 ~ 120
-
Measurement Mode:
-
Single,Dual,Thru
-
Two gates setting:
-
yes
-
Gate and DAC alarm:
-
yes
Quick Details
-
Warranty:
-
18 months
-
Power:
-
Battery power
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Tmeasurement
-
Model Number:
-
YFD-300
-
Measuring Range(mm):
-
0 ~ 10000
-
Sensitivity Leavings:
-
≥62dB
-
Dynamic range:
-
≥34dB
-
Resolving Power:
-
≥36dB
-
Material Velocity(m/s):
-
1000 ~ 15000
-
Frequency Range(MHz ):
-
0.5 ~ 20
-
Gain(dB):
-
0 ~ 120
-
Measurement Mode:
-
Single,Dual,Thru
-
Two gates setting:
-
yes
-
Gate and DAC alarm:
-
yes
Ultrasonic Weld Testing Equipment Ut Inspection Ultrasonic Flaw Detector For Sale

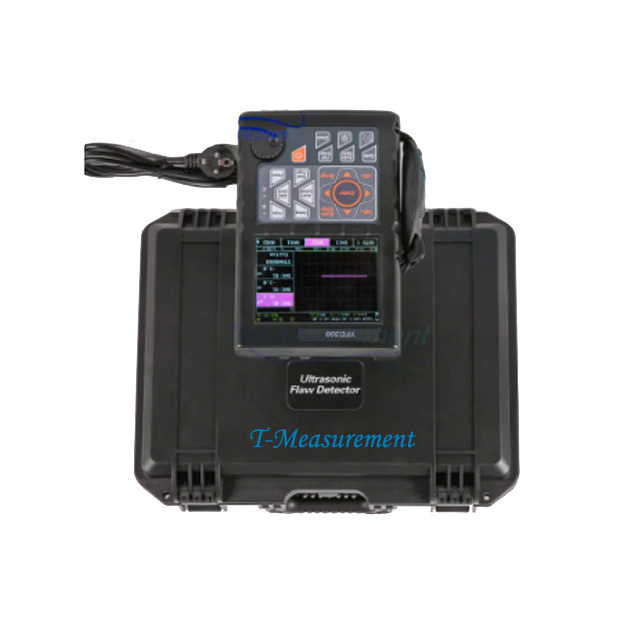

YFD300 ultrasonic flaw detector is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a work piece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g.
Functions
★ Automated calibration,Automated gain
★ DAC,AVG,TCG,B scan,AWS
★ High-speed capture and very low noise
★ Solid metal housing
★ high contrast viewing of the waveform from bright
★ Powerful pc software and reports can be export to excel
|
Title
|
Parameter
|
Title
|
Parameter
|
|
Measuring Range(mm)
|
0 ~ 10000
|
Measurement Mode
|
Single,Dual,Thru
|
|
Vertical Linearity Error
|
≤3%
|
Reject
|
0~80%
|
|
Horizontal Linearity Error
|
≤0.1%
|
Pulse Displacement(μs)
|
-20 ~ +3400
|
|
Sensitivity Leavings
|
≥62dB
|
Zero(μs)
|
0.0 ~ 99.99
|
|
Dynamic range
|
≥34dB
|
Port Type
|
BNC(Q9)
|
|
Resolving Power
|
≥36dB
|
Operating Temperature (℃)
|
-20~50
|
|
Frequency Range(MHz)
|
0.5 ~ 20
|
H×W×D(mm)
|
240×156×50
|
|
Gain(dB)
|
0 ~ 120
|
Weight(kg)
|
1.0(with battery)
|
|
Material Velocity(m/s)
|
1000 ~ 15000
|
|
|
