CNC Steel Iron Bending Machine Price Rod Bending Machine Rebar Bender
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
327
-
Product name:
-
arc steel bar bender
-
Name:
-
steel bar bender
-
Voltage:
-
220V/380V/415V/440V/customized
-
Dimension:
-
93*88*73cm
-
Processing material:
-
Aluminum steel copper Bending
-
Application:
-
Rebar Bending 6-42mm
-
Motor power:
-
4kw
-
BENDING SPEED:
-
20times / min
-
Usage:
-
Steel bar ARC curved circular bending
-
Packing:
-
Wooden Box
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuandong
-
Year:
-
2019
-
Weight (KG):
-
327
-
Product name:
-
arc steel bar bender
-
Name:
-
steel bar bender
-
Voltage:
-
220V/380V/415V/440V/customized
-
Dimension:
-
93*88*73cm
-
Processing material:
-
Aluminum steel copper Bending
-
Application:
-
Rebar Bending 6-42mm
-
Motor power:
-
4kw
-
BENDING SPEED:
-
20times / min
-
Usage:
-
Steel bar ARC curved circular bending
-
Packing:
-
Wooden Box
Product Description

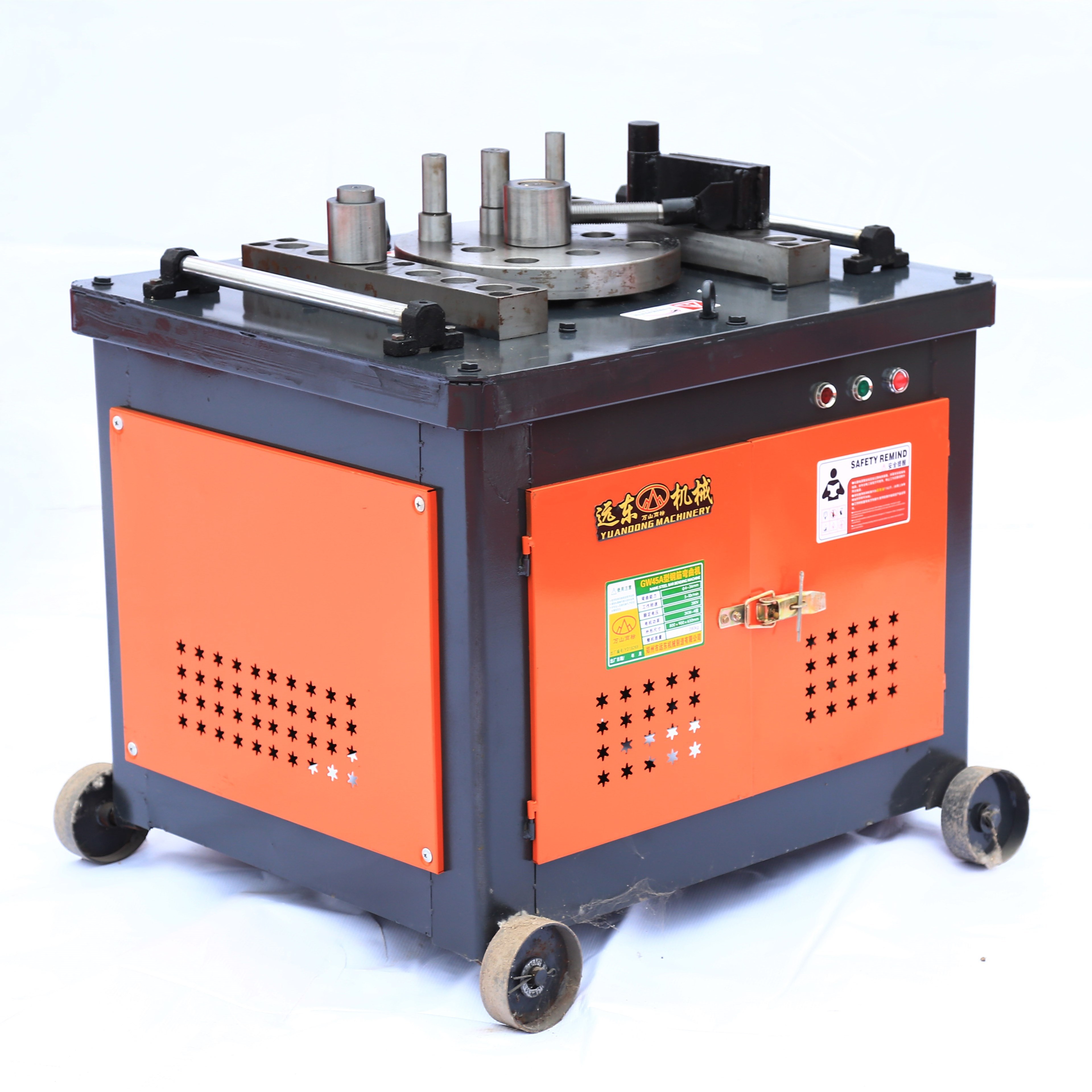

Model GW45 steel bar bender is an ideal steel bar bending arc equipment, which is mainly used for 360 °arc forming of steel bars in large-scale construction projects, such as bridges, tunnels, culverts, hydropower stations and subway projects.
steel bar bender
1. The steel bar bender is a double driving wheel, equipped with pre bending device, which can work in a straight and reverse direction. After the driving wheel is replaced, it can bend flat steel, square steel, square pipe and rectangular pipe.
Steel bar bending machine
2. The steel bar arc bending machine adopts double driving wheel transmission structure, forming once.
Gw50 Automatic Rebar Bender Rebar Bender Cutter Machine G40 Table Gear Rebar Bender
3. The working wheel of the steel bar arc bender is made of high steel, which is solid and durable. The fully enclosed steel plate welded gear box has ultra-low noise.
4. The
arc steel bar bending machine has the advantages of simple operation, convenient maintenance, efficient and fast arc bending efficiency, and preparation of arc bending, which can realize one-time forming.
steel round bar curving machine
Product Specification
|
Model
|
GW40
|
GW45
|
GW50
|
|
Motor power
|
3kw
|
4kw
|
4kw
|
|
Processing diameter
|
6-32mm
|
6-36mm
|
6-40mm
|
|
Bending frequency
|
20times / min
|
20times / min
|
20times / min
|
|
Bending angle
|
0- 360 °
|
0- 360 °
|
0- 360 °
|
|
Weight
|
255kg
|
280kg
|
300kg
|
|
Dimension
|
85x80x80mm
|
85x90x80mm
|
89x92x88mm
|
Product details
Three belts drive to ensure smooth power transmission Without slipping.
Round Bar Bending Machine
High strength material, specially processed, antiskid and wear-resistant.
rebar machine
OPERATION
The button control assembly is easy to operate, easy to understand and accurate to control
Electrical Appliance
High quality electrical appliances, safe and durable.
Arc Round Bar Bending Machine
Product application
Packing And Transport
We use three-layer protective packaging products, first covered with plastic bags, and then re protected with recycled cotton to prevent paint damage, and finally put them into wooden or iron boxes to better ensure product safety.
Steel bar arc bending machine
Our company can ship at many export ports, such as Shanghai, Qingdao and Guangzhou, to provide more convenient services for your product transportation.
Steel Bar Bender
Our Serves
1.We offer a one-year warranty. Once the claim occurs, we will send you free parts by express delivery such as DHL.
steel bar curving machine
2.We'll give you a 20% discount on each sample.
rebar machine
3.We provide overseas installation and maintenance services for engineers, and you are required to provide round-trip fees.
steel roll bar rolling bending machine
4. If you come to our company for field visits, we provide free pick-up and accommodation services.
steel roll bar rolling bending machine
5.If you have special requirements, we can provide custom services.
Our company
Zhengzhou Yuandong
Machinery Manufacturing Co., Ltd.
We has been focusing on the construction machinery design and manufacturing industry for more than 20 years.Our company has an independent R&D and design team.
Our company's main varieties include: road machinery, reinforced machinery concrete
machinery.Our products are produced in strict accordance with the requirements of ISO 9001 quality system and CE safety system. steel round bar curving machine
machinery.Our products are produced in strict accordance with the requirements of ISO 9001 quality system and CE safety system. steel round bar curving machine
At present, Our company develops partners all over the world.
steel round bar curving machine
The production workshop is equipped with professional automated production equipment. Rich experience can provide professional customization and foundry processing services.
FAQ
1 Q: I haven't used this thing. What if I don't know how to use it?
We provide online technical guidance and video docking.
2 Q: Can you guarantee the quality of product?
Our company has welding robot, CNC machining center and other processing equipment, ISO9001 certification, production specifications, strict quality inspection.
3 Q: How to solve after-sales problems?
We provide a 1-year warranty, free of charge for non consumable parts.
