Quick Details
-
Brand Name:
-
3C-LINK
-
Model Number:
-
3CI-SFP0204G/3CI-PSE0204G
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Industrial Ethernet Switch
-
RJ45 interface:
-
4*10/100/1000M RJ45 ports
-
SFP ports:
-
2 port 1000Mbps SFP Slot
-
PoE Ports:
-
2 Port Support PoE
-
Daisy-Chain connection:
-
Support
-
Broadcast Storm Control:
-
Support
-
Relay output for power failure:
-
Support
-
Protection grade:
-
IP40
-
Power Supply:
-
Redundant dual DC power
-
Operating temperature:
-
-45~+85
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
4 port
-
Brand Name:
-
3C-LINK
-
Model Number:
-
3CI-SFP0204G/3CI-PSE0204G
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Industrial Ethernet Switch
-
RJ45 interface:
-
4*10/100/1000M RJ45 ports
-
SFP ports:
-
2 port 1000Mbps SFP Slot
-
PoE Ports:
-
2 Port Support PoE
-
Daisy-Chain connection:
-
Support
-
Broadcast Storm Control:
-
Support
-
Relay output for power failure:
-
Support
-
Protection grade:
-
IP40
-
Power Supply:
-
Redundant dual DC power
-
Operating temperature:
-
-45~+85
Product Description
Product Description

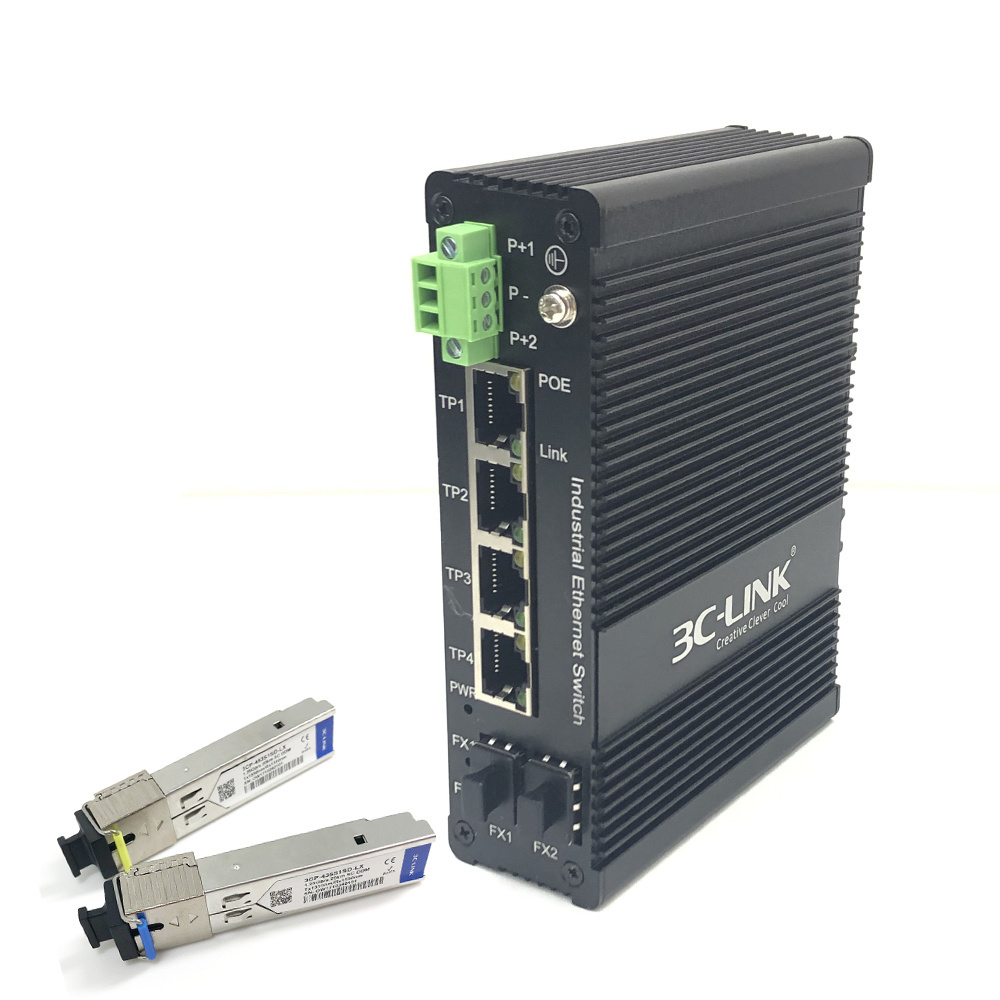

The 3CI-SFP0204G series is an industrial Ethernet switch/media converter independent development by 3C-LINK,
with 4*10/100/1000M Ethernet ports and 2x 1000M SFP port, Users can select different optical modules according to their needs, such as multi-mode dual fiber and single-mode dual fiber, single-mode single fiber, etc. It uses the latest IC in the United States, with stable performance, high quality and high cost performance. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a
cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use
with 4*10/100/1000M Ethernet ports and 2x 1000M SFP port, Users can select different optical modules according to their needs, such as multi-mode dual fiber and single-mode dual fiber, single-mode single fiber, etc. It uses the latest IC in the United States, with stable performance, high quality and high cost performance. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a
cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use
Product Features
* 4 Port 10/100/1000Mbps RJ45 with Auto Uplink , 2 port 1000Mbps SFP Slot
* Automatic MAC address learning and aging
* Automatically support IGMP (Multicasting)
* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
* LED indicators for monitoring power/link/activity
* Supports 10/100/1000Mbps-Full/Half-duplex
* Supports Wall-mount and DIN-Rail installation for lightning protection
* Supports Daisy-Chain connection
* Supports Broadcast Storm Control
* Supports Relay output for power failure
* Super lightening protection, IP40 protection.
* Excellent heat elimination without cooling fan.
* Redundant dual DC power inputs.
* Redundant Power Inputs
* Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
* Harsh industrial environment or higher requirement
* -45 -85 operating temperature range
* Automatic MAC address learning and aging
* Automatically support IGMP (Multicasting)
* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
* LED indicators for monitoring power/link/activity
* Supports 10/100/1000Mbps-Full/Half-duplex
* Supports Wall-mount and DIN-Rail installation for lightning protection
* Supports Daisy-Chain connection
* Supports Broadcast Storm Control
* Supports Relay output for power failure
* Super lightening protection, IP40 protection.
* Excellent heat elimination without cooling fan.
* Redundant dual DC power inputs.
* Redundant Power Inputs
* Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
* Harsh industrial environment or higher requirement
* -45 -85 operating temperature range
|
Order information
|
|
|
|
|
||||
|
3CI-SFP0204G
|
4*10/100/1000Base-TX to 1000Base-FX. SFP slot, Industrial Type
|
|
|
|
||||
|
3CI-PSE0204G
|
4*10/100/1000Base-TX to 1000Base-FX. SFP slot,POE 802.3af/at Industrial Type
|
|
|
|
||||
