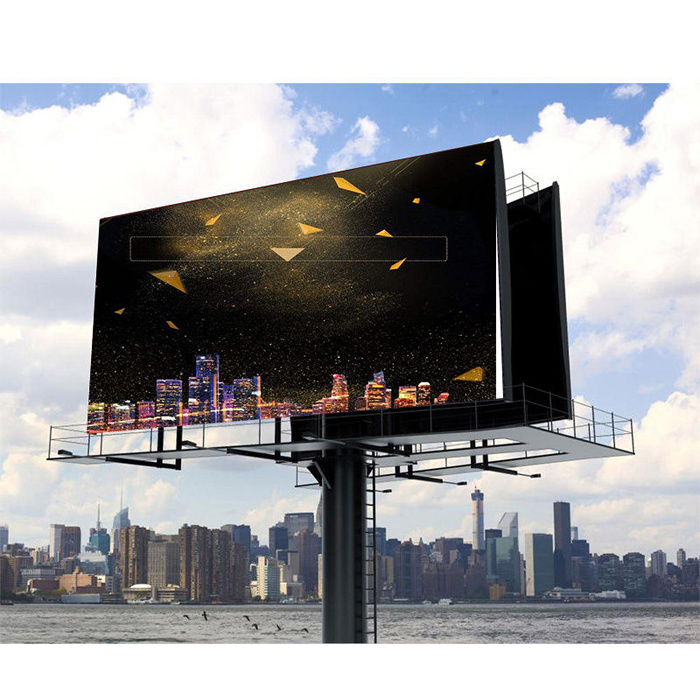

CE commercial outdoor advertising electronic P10 energy saving ad big led screen display billboards

CE commercial outdoor advertising electronic P10 energy saving ad big led screen display billboards

FOB Reference Price: Get Latest Price

≥5 Square meters

US $540

≥20 Square meters

US $520

≥50 Square meters

US $499

≥100 Square meters

US $479

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Full color

Panel Size:: 960x960mm, 960x960mm

Place of Origin:: Guangdong, China

Model Number:: Uranus-O10

Pixel Pitch:: P6 P8 P10, P6 P8 P10

Specification:: billboard

Usage:: OUTDOOR

Tube Chip Color:: FULL COLOR

Display Function:: Video

Pixels:: p10

Screen Dimension:: Customized

IP:: 65

Certificate:: CE ROHS ETL TUV FCC

Brightness:: 7000cd/sqm

Lifespan:: 100000hours(about 11 years)

Quick Details

Application:: building, shopping mall, highway, square, highway, building, shopping mall, square

Type:: LED

Brand Name:: Sunrise

Color:: Full color

Panel Size:: 960x960mm, 960x960mm

Place of Origin:: Guangdong, China

Model Number:: Uranus-O10

Pixel Pitch:: P6 P8 P10, P6 P8 P10

Specification:: billboard

Usage:: OUTDOOR

Tube Chip Color:: FULL COLOR

Display Function:: Video

Pixels:: p10

Screen Dimension:: Customized

IP:: 65

Certificate:: CE ROHS ETL TUV FCC

Brightness:: 7000cd/sqm

Lifespan:: 100000hours(about 11 years)

Sunrise common cathode cold P6 P8 P10 led display

Sunrise common cathode cold led display Unique Features:

1. Common cathode directly improves the color decaying(brightness, gamut, color temperature) of

the common anode during the continuous temperature rise stage, and maintains color consistency

at extreme temperatures.
2. Common cathode can improve the active power, and the low voltage(2.8V+3.8V) is used

in the light bead power supply to reduce the useless power of the LED display screen in use,

thus achieving energy saving of 20%-30%.
3. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs.

4. Energy efficient--------average 180W per sqm, while traditional led display is over 600W per sqm

Product Description

Product Series	Uranus-O4	Uranus-O6	Uranus-O8	Uranus-O10
Pixels	4mm	6mm	8mm	10mm
Resolution	62500 dots/m2	27777 dots/m2	15625 dots/m2	10000 dots/m2
Gradation	16 bits
Brightness	6500 cd/m2	6500 cd/m2	7000 cd/m2	7000 cd/m2
Best Viewing Distance	4-100m	6-200m	8-250m	10-300m
The Maximum Power Consumption	600 w/m2
The Average Power Consumption	180w/m2
Weight	30 kg/m2
Thickness	8cm
Refresh Rate	5560Hz
Display Mode	1920*1080
Working temperature	-20 to 60 ℃
Storage temperature	-30 to 70 ℃
Protecting Rating	IP65

768mm*768 panel

Aluminum panel

Temperature test of LED and PCB, the test results shows the common cathode directly improves the color decaying and keep the temperature at a very lower level.
