The insulation sheath is made of cross-linked low smoke and halogen-free materials. After irradiation, the product can be used in a humid and hot environment between -40 ℃ and 150 ℃, with corrosion resistance, flame retardancy, ozone resistance, sunlight resistance, and UV resistance
- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
XLPE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ronglan
-
Model Number:
-
PV1--F
-
brand:
-
Ronglan
-
Color:
-
black/red
-
application area:
-
Solar energy/Photovoltaic/New energy sector
-
conductor material:
-
Tinned copper
-
insulating materials:
-
XLPE
-
anti-interference:
-
Core twisted pair Double shielding
-
voltage:
-
600V/1000V
-
high low temperature:
-
-40℃+150℃
-
Product characteristics:
-
UV resistance, anti-oxidation/corrosion preventive
-
package:
-
100 meters/roll
Quick Details
-
Insulation Material:
-
Crosslinked low smoke and halogen-free materials
-
Application:
-
Solar energy /Photovoltaic/New energy sector
-
Conductor Material:
-
Copper
-
Jacket:
-
XLPE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ronglan
-
Model Number:
-
PV1--F
-
brand:
-
Ronglan
-
Color:
-
black/red
-
application area:
-
Solar energy/Photovoltaic/New energy sector
-
conductor material:
-
Tinned copper
-
insulating materials:
-
XLPE
-
anti-interference:
-
Core twisted pair Double shielding
-
voltage:
-
600V/1000V
-
high low temperature:
-
-40℃+150℃
-
Product characteristics:
-
UV resistance, anti-oxidation/corrosion preventive
-
package:
-
100 meters/roll
Why Choose Us
Products Description

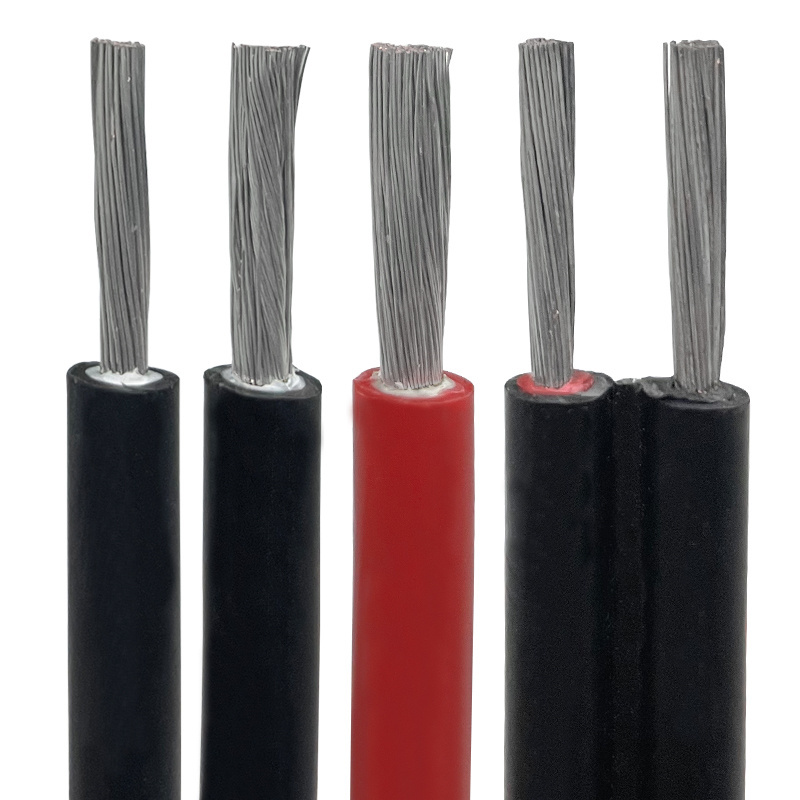

PV1-F solar photovoltaic line
The conductor is made of tin plated oxygen free copper, with low resistance, stable transmission, low heat generation, and oxidation resistance
Product Paramenters
|
Model
|
Specifications（mm²）
|
Conductor Specifications
（mm）
|
Outer Diameter of Finished Product（mm）
|
Standard weight 100 meters（kg）
|
|
PV1-F solar photovoltaic line
|
1*1.5
|
40/0.2TS
|
5
|
3.7
|
|
|
1*2.5
|
79/0.2TS
|
5.5
|
4.97
|
|
|
1*4.0
|
128/0.2TS
|
6
|
6.73
|
|
|
1*6.0
|
191/0.2TS
|
6.8
|
9.25
|
|
|
1*10.0
|
317/0.2TS
|
8.2
|
14.46
|
|
|
1*16.0
|
500/0.2TS
|
9.6
|
21.46
|
|
|
2*2.5
|
79/0.2TS
|
5.5*11.2
|
9.1
|
|
|
2*4.0
|
128/0.2TS
|
6*12.2
|
12.53
|
|
|
2*6.0
|
191/0.2TS
|
6.8*13.8
|
17.35
|
Details Images
Tin plated oxygen free copper
Low resistance, stable conductivity, less prone to heat generation, anti oxidation, energy-saving and worry free
Low eccentricity
Strict inspection layer by layer to ensure uniform insulation thickness and quality assurance
Two core dual parallel
2-core dual parallel structure to meet the needs of different occasions simultaneously
Cross-linked halogen-free material
After irradiation, the product can be used in a humid and hot environment between -40 ℃ and 150 ℃, with corrosion resistance, flame retardancy, ozone resistance, sunlight resistance, and UV resistance
Application Area
Widely used in the electrical installation of indoor and outdoor solar energy equipment,
such as wind power generation, solar energy, photovoltaic, and new energy fields
Photovoltaic field
wind power generation
Solar energy sector
