Quick Details
-
Power:
-
2*3kw
-
Min. Lifting Height:
-
2.3m
-
Table Size:
-
2040*930mm
-
Overall Dimensions:
-
2350*1450*2300mm
-
Weight:
-
1600 kg, 1600kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

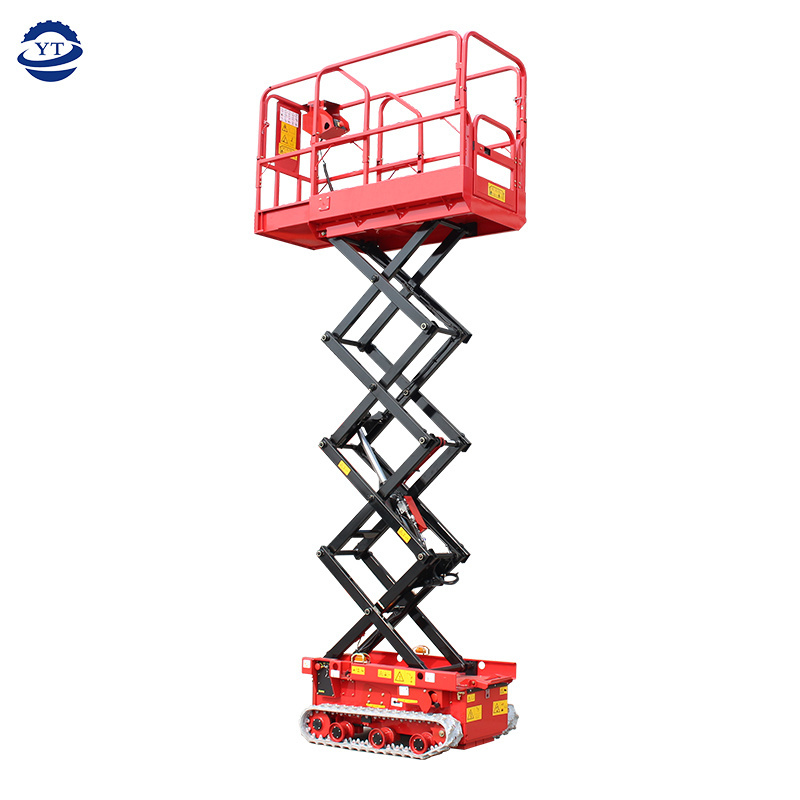

6m Mobile Crawler Self-Propelled Hydraulic Scissor Lift
-
Keywords:
-
self propelled scissor lift
-
Material:
-
High Strength Manganese Steel
-
Type:
-
Mobile Scissor Lift
-
Usage:
-
Aerial Maintenance Work
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Application:
-
Aerial Work
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUNTIAN
-
Power:
-
2*3kw
-
Min. Lifting Height:
-
2.3m
-
Table Size:
-
2040*930mm
-
Overall Dimensions:
-
2350*1450*2300mm
-
Weight:
-
1600 kg, 1600kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
6m Mobile Crawler Self-Propelled Hydraulic Scissor Lift
-
Keywords:
-
self propelled scissor lift
-
Material:
-
High Strength Manganese Steel
-
Type:
-
Mobile Scissor Lift
-
Usage:
-
Aerial Maintenance Work
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Application:
-
Aerial Work
4.5M Load 200kg Hydraulic Mini Tracked Electric Lift Table Mini Crawler Scissor Lift
Products Description


It is widely used in the installation and maintenance of equipment in construction site workshops, warehouses, granaries, bus stations, hotels, airports, gas stations and air pipelines.
Specification
Model
|
Platform Height(m)
|
Working Height(m)
|
Platform Size(m)
|
Load
(kg) |
Overall Dimension
(l*w*h) |
Lifting Motor
(V/kw) |
Weight
(kg) |
GTJZ0307LD
|
3.5
|
5.5
|
1.18*0.76
|
200
|
1.2*0.76*1.68
|
24/1.2
|
810
|
GTJZ0407LD
|
4.5
|
6.5
|
1.34*0.748
|
200
|
1.34*0.79*1.71
|
24/1.2
|
990
|
Details Images


1. Electric/AC
When the workplace is energized, it is usually used indoors
No noise and air pollution
2. Battery powered/DC
powered
powered
When there is no electricity in the workplace, it is usually used outdoors
No noise and air pollution
Related Products
Packing & Delivery
1. Delivery time
Within 7- 15 working days after we receive the deposit
2. Payment terms
T/T, L/C
3. MOQ
Generally speaking, the MOQ is 1 set, may vary for different products, please contact with us.
4. Custom-made
Load, platform size, lifting height can be custom-made.
Within 7- 15 working days after we receive the deposit
2. Payment terms
T/T, L/C
3. MOQ
Generally speaking, the MOQ is 1 set, may vary for different products, please contact with us.
4. Custom-made
Load, platform size, lifting height can be custom-made.
5.Mini track scissor lift package: LCL plywood case/20'GP load
11umits/40'GP load 23units
11umits/40'GP load 23units
