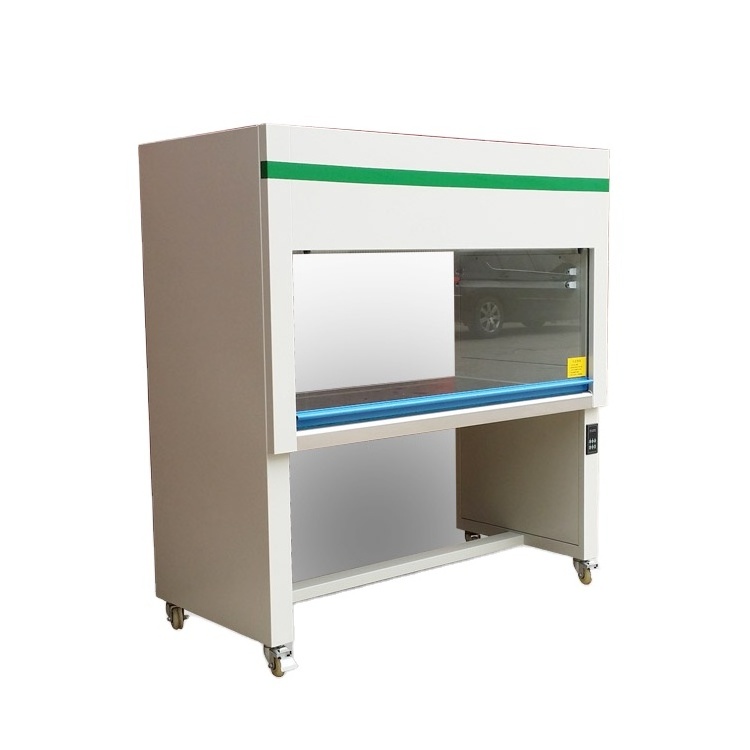

Powder Coated Steel/SUS304 Double Person Vertical Flow Clean Bench/Laminar Air Flow Cabinet

Powder Coated Steel/SUS304 Double Person Vertical Flow Clean Bench/Laminar Air Flow Cabinet

FOB Reference Price: Get Latest Price

≥1 Sets

US $800

≥5 Sets

US $750

≥10 Sets

US $700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Outer Dimension(mm):: 1500(W)*750(D)*1620(H)

Inner Dimension(mm):: 1360(W)*700(D)*520(H)

Filter Efficiency:: 99.995%@0.3um

Air Velocity:: 0.4~0.6m/s

NOISE:: 62dB(A)

Illumination:: 300LX

Power Supply:: 220V 50Hz

Max. Power Consumption:: 800W (Rated Power)

Application:: Lab / Laboratory Clean Room

Quick Details

Weight (KG):: 100

Place of Origin:: China

Product name:: Double Person Vertical Flow Clean Bench

Outer Dimension(mm):: 1500(W)*750(D)*1620(H)

Inner Dimension(mm):: 1360(W)*700(D)*520(H)

Filter Efficiency:: 99.995%@0.3um

Air Velocity:: 0.4~0.6m/s

NOISE:: 62dB(A)

Illumination:: 300LX

Power Supply:: 220V 50Hz

Max. Power Consumption:: 800W (Rated Power)

Application:: Lab / Laboratory Clean Room

Product Overview

Powder Coated Steel/SUS304 Double Person Vertical Flow Clean Bench/Laminar Air Flow Cabinet

Clean bench is a kind of general strong air cleaning facility which can provide high clean class for local work environment. It has the best efficiency to improve technological conditions, enhance product quality and increase yield. Also, it can connect as assembling line which has advantage of low noise and mobility.

It is widely used in scientific research and production department which needs clean sterile working environment in
local, such as: medicine, bio-phar ma, foodstuff, medical experiment, optics, electron, sterile laboratory, sterile microbial
inspection, plant tissue culture, etc.

FEATURES AT A GLANCE

Model: SHP-CB-V2

Outer Size(mm): 1500(W)*750(D)*1620(H) Operation Area(mm): 1360(W)*700(D)*520(H) Filter Efficiency 99.995%@0.3um Average Air Velocity:0.4~0.6m/s (adjustable)

Noise: ≤62dB(A)

Max Power Consumption: 800W( Rated Power) Power supply: 220V,50Hz

PRODUCT CONFIGURATION

Clean Bench Model	CB-H1	CB-V1	CB-H2	CB-V2
Clean Level	Class A USA standard 209E
Average Air Velocity	≥0.5m/s ±20% (adjustable)
Noise	≤62dB (A)	≤62dB (A)	≤62dB (A)	≤62dB (A)
Shock/Half Perk	≤5um	≤5um	≤5um	≤5um
Intensity of Illumination	≥300lx	≥300lx	≥300lx	≥300lx
Power Supply	Single Phase 220V/50HZ
Max Power Consumption	0.4kw	0.4kw	0.8kw	0.8kw
Weight	110kg	110kg	160kg	160kg
Operation Area	900W720D1420H	900W750D1620H	1500W720D1420H	1500W750D1620H
Outer Dimension	860W520D600H	830W700D520H	1460W520D600H	1360W700D520H
HEPA	82060050*1pc	82060050*1pc	820600501pc, 600600501pc	65060050*2pcs
HEPA	82060050*1pc	82060050*1pc	820600501pc, 600600501pc	65060050*2pcs
Illumination Lamp	20W*1	20W*1	40W*1	20W*2
UV Lamp	20W*1	20W*1	40W*1	20W*2
Primary Filter	48048020*1	48048020*1	48048020*2	48048020*2

Successful Project

FAQ

Q1：What is the MOQ?

A1：The MOQ is 1 PC

Q2: Can you produce non-standard size ?
A2: Yes, custom size is available

Q3: Can you send samples?
A3: Yes, we can send you sample for evaluating, free or not depending on products.

Q4: What' s the payment terms that you can accept?
A4: T/T, L/C, D/P.

Q5: How about the shipment?
A5: By sea, by air or by railway, according to your demand.

Q6: Are you a factory or a trading company?
A6: We are a GMP factory, setting design, manufacturing &sale in one, you can get best factory quote from us.
