Products
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator
CHINCAN hot sales Ultra Low Temperature  Storage Freezer deep freezer refrigerator

CHINCAN hot sales Ultra Low Temperature Storage Freezer deep freezer refrigerator

FOB Reference Price: Get Latest Price
≥1 Sets
US $900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
CHINCAN
Model Number:
DW-60W Series
Net Capacity:
138L-768L
Type:
Horizontal, Chest
Door type:
1 Top open door
Climate class:
N/T
Temperature Range:
-25℃~-60℃(adjustable)
Isolation thickness:
100mm
Evaporator:
Copper
Temperature controller:
KELD
Inside bottom type:
Step bottom
Refrigerant:
CFC Free(Mixed Gas)

Quick Details

Warranty:
1 Year
After-sale Service:
Free spare parts
Place of Origin:
Zhejiang, China
Brand Name:
CHINCAN
Model Number:
DW-60W Series
Net Capacity:
138L-768L
Type:
Horizontal, Chest
Door type:
1 Top open door
Climate class:
N/T
Temperature Range:
-25℃~-60℃(adjustable)
Isolation thickness:
100mm
Evaporator:
Copper
Temperature controller:
KELD
Inside bottom type:
Step bottom
Refrigerant:
CFC Free(Mixed Gas)

Product Description

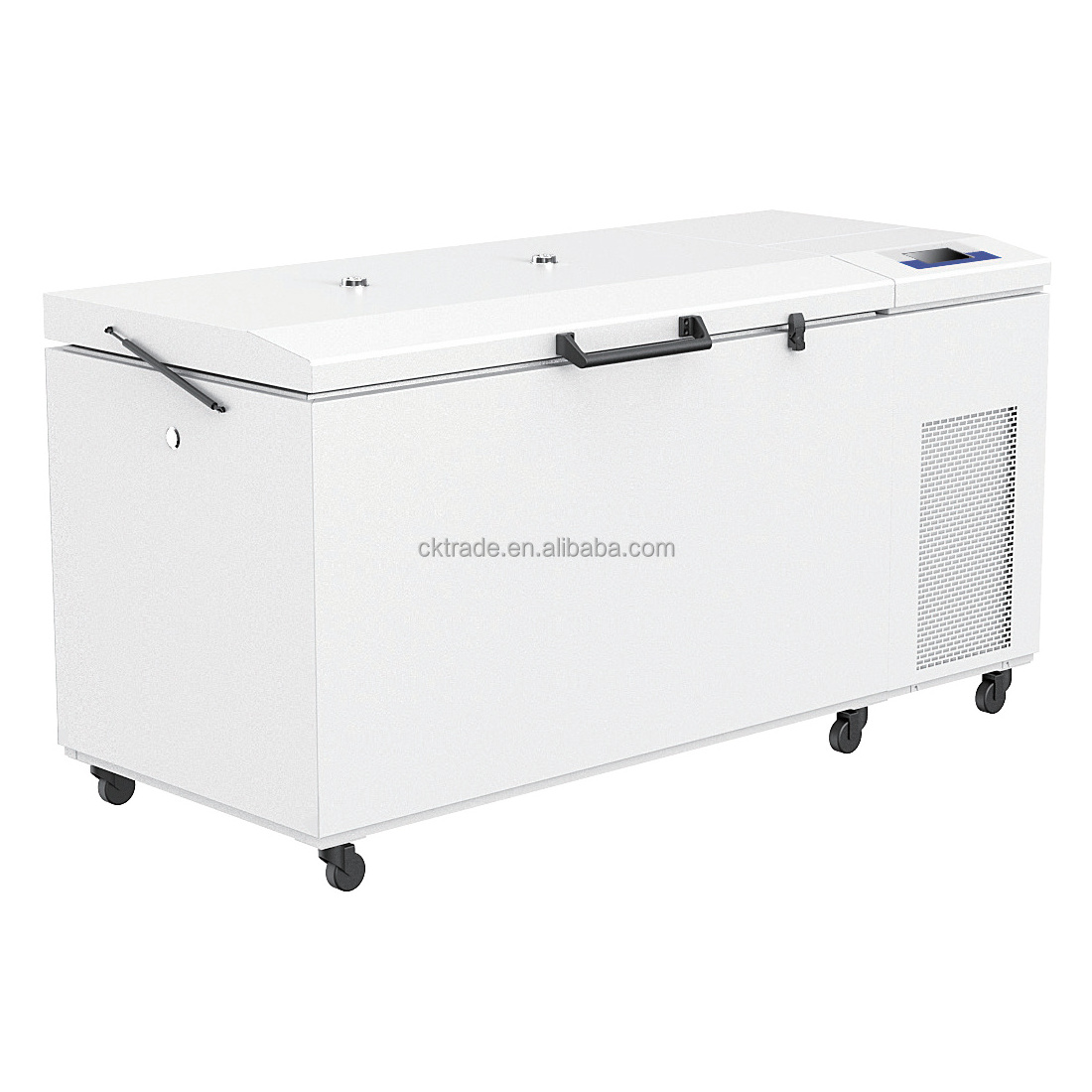

CK-DW60W Series (-65℃) Lab Ultra Low Temperature Storage Freezer for Tuna

Sumary

The Ultra low temperature freezer can be used for the storage of virus, red blood cells, white blood cells, skin, bone, bacteria, semen, biological products, ocean products, electronic devices and low temperature test etc.
Applicable to scientific research institutions, special materials of ultra low temperature experiment, electronic industry, chemical industry, military field, the University experiment, biological engineering, ocean fishery.

Fetures

1.White coated exterior with food grade 304 S/S interior.
2. 100MM insulation thickness using advanced foaming technology.
3. Electronic temperature controller with temperature display and can set the required temperature(-25℃ to -60℃)
4. Stuible for defferent storage purpose, Specially for Tuna
5.The door seal is in embedded design and can be easily removed and convenient for cleaning.
6. A balanced hinge is installed on door-frame, so that the door can be opened from any angle.
7.Fully round corners on top plastic frame as safe design.
8. Double layers of door seal gasket are inserted inside the frame opening to reduce cool air loss, which is energy-saving and environmentally friendly.
9. Galvanized steel sheet for bottom and compressor room for avoiding rust.
10. Adopt advanced low temperature technology (with mixed CFC-free gas).

Specifications

Model DW-65W138 DW-65W228 DW-65W288 DW-65W350 DW-65W480
Net Capacity 138L 228L 288L 350L 480L
Type Horizontal Horizontal Horizontal Horizontal Horizontal
Door type 1 Top open door 1 Top open door 1 Top open door 1 Top open door 1 Top open door
Power supply 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz
Climate class N/T N/T N/T N/T N/T
Temperature Range -25℃~-60℃(adjustable) -25℃~-60℃  (adjustable) -25℃~-60℃  (adjustable) -25℃~-60℃(adjustable) -25℃~-60℃(adjustable)
Isolation thickness 100mm 100mm 100mm 100mm 100mm
Evaporator Copper Copper Copper Copper Copper
Temperature controller KELD KELD KELD KELD KELD
Alarm system Optional Optional Optional Optional Optional
Inside bottom type Step bottom Step bottom Step bottom Step bottom Step bottom
Rated input power 452W 500W 500W 550W 600W
Power consumption 3.3kwh/24h 3.5kwh/24h 3.5kwh/24h 3.8kwh/24h 4.4kwh/24h
Refrigerant CFC Free(Mixed Gas) CFC Free(Mixed Gas) CFC Free(Mixed Gas) CFC Free(Mixed Gas) CFC Free(Mixed Gas)
Compressor SECOP SECOP SECOP SECOP SECOP
Net weight 61Kg 76Kg 83Kg 91 Kg 105 Kg
External dimension (mm) 800×780×900 1100×780×900 1300×780×900 1500×780×900 1500×910×940
Packing dimension(mm) 850×760×990 1150x760x990 1530x760x990 1550x760x990 1550x890x1030

Model DW-65W582

DW-65W610

(Double Compressor)

DW-65W665 DW-65W712       (Double Compressor) DW-65W768
Capacity 582L 610L 665L 712L 768L
Type Chest Chest Chest Chest Chest
Door type 1 Top open door 1 Top open door 1 Top open door 1 Top open door 1 Top open door
Power supply 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz 220V/50Hz, 110V/60Hz
Climate class N/T N/T N/T N/T N/T
Temperature Range -25℃~-60℃(adjustable) -25℃~-60℃(adjustable) -25℃~-60℃(adjustable) -25℃~-60℃(adjustable) -25℃~-60℃(adjustable)
Isolation thickness 100mm 100mm 100mm 90mm 90mm
Evaporator Copper Copper Copper Copper Copper
Temperature controller KELD KELD KELD KELD KELD
Alert type Optional Optional Optional Optional Optional
Inside bottom type Step bottom 2 Step bottom Step bottom 2 Step bottom Step bottom
Rated input power 700W 1200W 700W 1250W 750W
Power consumption 4.8kwh/24h 8.2kwh/24h 4.8kwh/24h 8.4kwh/24h 5.3kwh/24h
Refrigerant

CFC Free

(Mixed Gas)

CFC Free

(Mixed Gas)

CFC Free

(Mixed Gas)

CFC Free

(Mixed Gas)

CFC Free

(Mixed Gas)

Compressor SECOP Double Compressor SECOP SECOP Double Compressor SECOP SECOP
Net weight 113 Kg 143Kg 122Kg 151Kg 130 Kg
External dimension (mm) 1750×910×940 1950×910×940 1950×910×940 2200×910×940 2200×910×940
Packing dimension(mm) 1800x890x1030 2000x890x1030 2000x890x1030 2250x890x1030 2250x890x1030
