Quick Details
-
Brand Name:
-
PLANTE
-
Model Number:
-
PLT-1220-M1
-
Battery Size:
-
LiFePO4
-
Place of Origin:
-
GUA
-
Weight:
-
2.2kgs
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
-
Battery type:
-
Lifepo4/lithium Battery
-
Nominal Voltage:
-
12volt
-
Capacity:
-
20Ah
-
Keywords:
-
Lithium Ion /lifepo4 Battery Pack
-
Apllication:
-
power wheels, trolling motor, tool trailer
-
BMS:
-
Built-in Intelligent BMS
-
Features:
-
Lightweight design lithium battery
-
Cycle time:
-
4000 - 6000 cycles
-
Brand:
-
PLANTE
-
Warranty:
-
2 Years
Quick Details
-
Storage Type:
-
DRY, COOL
-
Anode Material:
-
LFP
-
Application:
-
BOATS, Golf Carts, SUBMARINES, electric vehicles, Golf trolley
-
Brand Name:
-
PLANTE
-
Model Number:
-
PLT-1220-M1
-
Battery Size:
-
LiFePO4
-
Place of Origin:
-
GUA
-
Weight:
-
2.2kgs
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
-
Battery type:
-
Lifepo4/lithium Battery
-
Nominal Voltage:
-
12volt
-
Capacity:
-
20Ah
-
Keywords:
-
Lithium Ion /lifepo4 Battery Pack
-
Apllication:
-
power wheels, trolling motor, tool trailer
-
BMS:
-
Built-in Intelligent BMS
-
Features:
-
Lightweight design lithium battery
-
Cycle time:
-
4000 - 6000 cycles
-
Brand:
-
PLANTE
-
Warranty:
-
2 Years
Product Paramenters
|
No.
|
ITEM
|
SPECIFICATION
|
|
1
|
Model Number
|
PLT-1220-M1
|
|
2
|
Rated Capacity
|
20Ah
|
|
3
|
Nominal Voltage
|
12.8V
|
|
4
|
Life Exception
|
Higher than 80% .of the Initial Capacity of the Cells
|
|
5
|
Discharge cut-off voltage
|
8V
|
|
6
|
Charging cut-off voltage
|
14.6V
|
|
7
|
Cell and assembly method
|
PLT-26700-4AH
|
|
8
|
Housing material
|
ABS+PC
|
|
9
|
Standard charge
|
0.5C constant current(CC) charge to 14.6Vthen constant voltage (CV) 14.6V charge till charge current decline to ≤0.05C
|
|
10
|
Standard discharge
|
Constant current 0.5C
Cut-off voltage8V
|
|
11
|
Maximum Continuous Charge Current
|
≤20A
|
|
12
|
Maximum Continuous Discharge Current
|
≤20A
|
|
13
|
Peak Discharge
|
≤35A (7.5 s ±2.5 s)
|
|
14
|
Operation Temperature Range
|
Charge: 0～45℃
|
|
|
|
Discharge: -20～60℃（cell surface temperature≤80℃）
|
|
15
|
Storage Temperature Range
|
Less than 1 year : 0～25℃
|
|
|
|
Less than 3 months:-10～35℃
|
|
16
|
Weight
|
Approx: 2.2Kg
|
|
17
|
Dimension(L*W*H)
|
181*77*168mm
|
Details Images

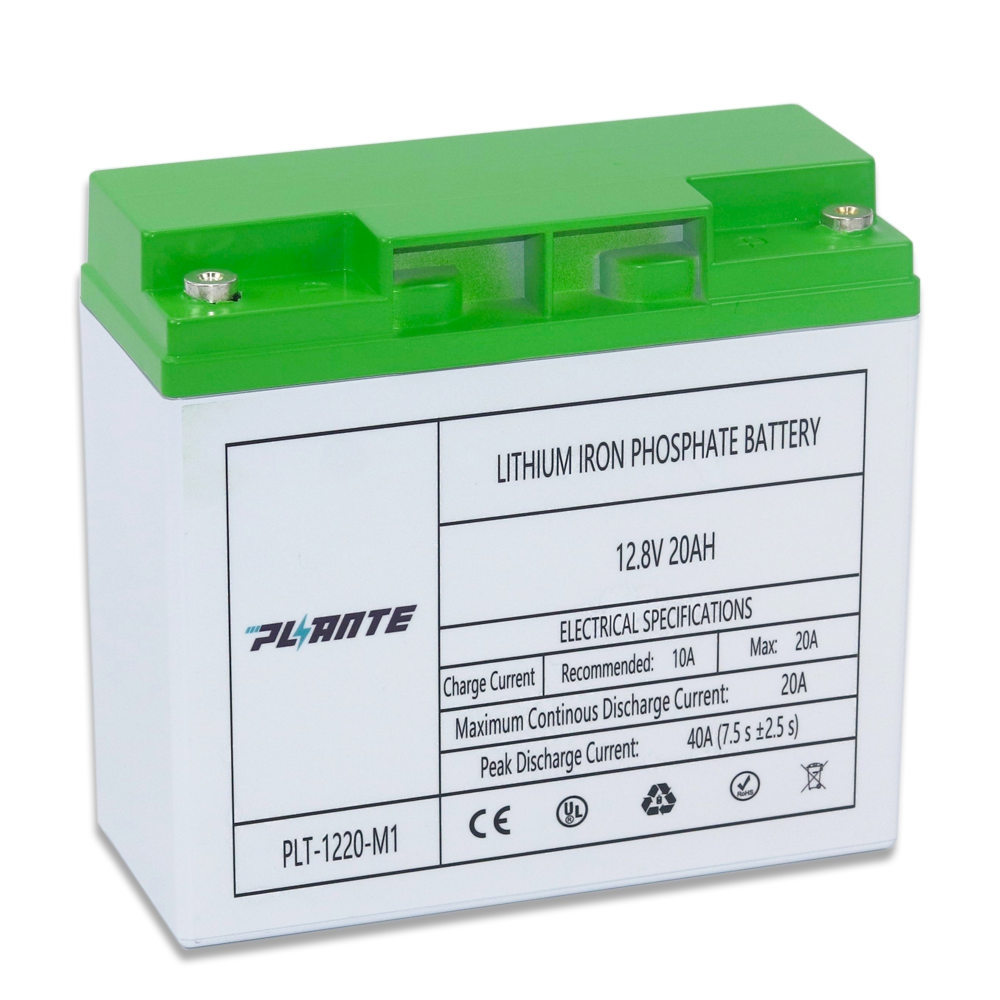

LiFePO4 Battery
LIFEPO4 BATTERY is designed for replacing the Lead-acid battery, including 12V series and 24V series, which are widely used in Motor thrusters, Audio equipment, RV, Electric wheelchairs, Forklift, Motorcycle, Golf carts, Sailboats/marine, etc. LiFePO4 batteries are generally more expensive than the counterpart sealed lead-acid batteries, but they are actually more cost-effective in the long term because they offer an extended life span.
