Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SunWay
-
Dimension(L*W*H):
-
1850*1310*1125mm
-
Weight (KG):
-
380 KG
-
Product name:
-
SW1390/SW1610/SW1690
-
Function:
-
Cutting Engraving Non-metal Materials
-
Color:
-
Customer Requirement
-
Power supply:
-
AC110-220V/50-60HZ(Custom Made)
-
Laser tube:
-
RECI EFR
-
Laser power:
-
60W 80W 100W 130W 150W
-
Cutting Thickness:
-
0-20mm(depends on materials)
-
Laser tube type:
-
CO2
-
Compatible Software:
-
Corellaser/Autolaser/RD works v8/LaserCAD
Quick Details
-
Engraving Area:
-
1300*900/1600*900/1600*1000(mm)
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1-1000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SunWay
-
Dimension(L*W*H):
-
1850*1310*1125mm
-
Weight (KG):
-
380 KG
-
Product name:
-
SW1390/SW1610/SW1690
-
Function:
-
Cutting Engraving Non-metal Materials
-
Color:
-
Customer Requirement
-
Power supply:
-
AC110-220V/50-60HZ(Custom Made)
-
Laser tube:
-
RECI EFR
-
Laser power:
-
60W 80W 100W 130W 150W
-
Cutting Thickness:
-
0-20mm(depends on materials)
-
Laser tube type:
-
CO2
-
Compatible Software:
-
Corellaser/Autolaser/RD works v8/LaserCAD
Products Description

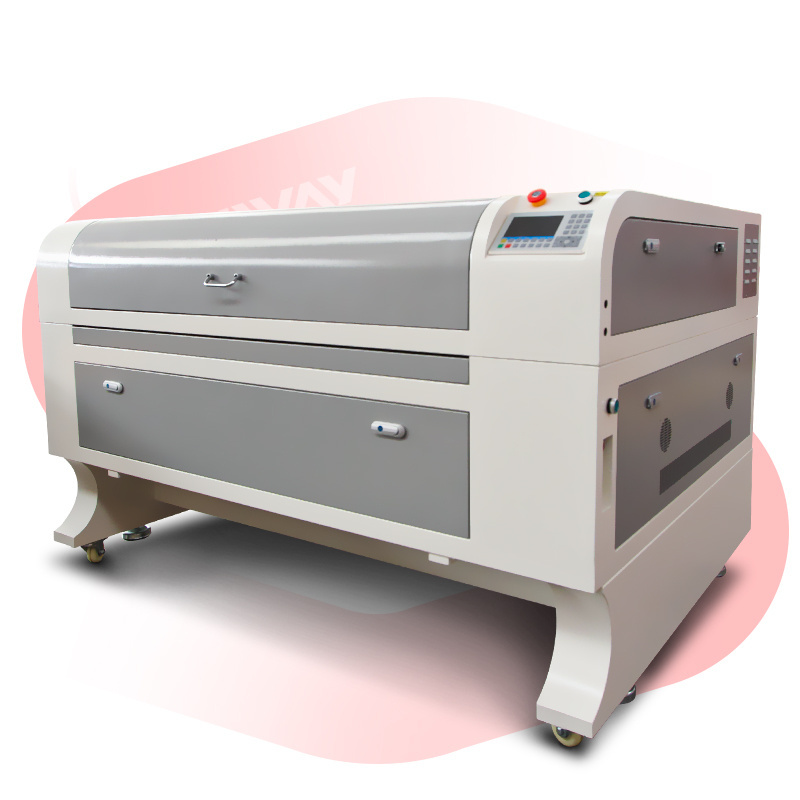

CO2 laser engraving machine is a type of computer numerical controlled nonmetal laser etching system that uses CO2 laser tube to output high-density laser beam for engraving & cutting. CO2 laser engravers are used for wood, fabric, leather, acrylic, plastic,plexiglass, paper, wool, rubber, crystal, ceramic tiles, jade, epoxy resin, bamboo, and more non-metallic materials. It is widely used in crafts making, advertising, decoration, clothing, leather, toys, electronic appliances, computer embroidery and cutting, models, packaging and printing, paper products, and more industries.
Sunway CO2 laser engraving machine is equipped with a precision CO2 laser generator which can engrave on almost any non-metal materials surface. The nonmetal laser engraving machine can also be used for cutting many different materials. With the cylinder rotary attachment, you can engrave any cylindrical object, such as cup, brush pot, musical instrument, and so on. The CO2 laser engraving system supports multiple graphic formats, such as PLT, DXF, BMP, JPG, GIF, PGN, TIF, and so on. The CO2 laser machine is equipped with DSP control system for CorelDraw, AutoCAD, and more professional softwares.The CO2 nonmetal laser engraver is compatible with WIN10, WIN8, WIN7,Windows Vista and Windows XP.
CO2 Laser Tube
Longer service life, more steady.
Higher effciency, high precision, small facula.
RUIDA offline/M2 Main Board
RUIDA offline, superior control performance. engraving speed. Support engraving and cutting simultaneously. M2 using coreldraw software output.
The lens
Lens use frequently wipe can prolong life.
Generally about 1 year.
Linear quide rail withhigh precision , durable and stable . Noteasy to deform.
Parameter Details
CO2 Laser Engraving Machine Features:
1. Automatic focus lens.
2. CO2 sealed laser tube including laser powers of 60 Watts, 80 Watts, 100 Watts, 130 Watts, 150 Watts or 180 Watts.
3. Honey comb table or knife table for option.
4. Automatic up and down platform for option.
5. Profesional exhauster device and cooling device.
6. Transmit files directly in CorelDraw, AutoCAD, and more softwares.
7. The CO2 laser machine adopts international linear rail with high precision.
8. The CO2 laser machine owns functions of restoring from power off, continuation on break point.
|
Machine Size:
|
1850*1310*1125mm(1390) 2150*1430*1125mm(1690)
|
|
Working Area:
|
1300*900/1600*900/1600*1000(mm)
|
|
Engraving Speed:
|
1-1000mm/s
|
|
Cutting Speed:
|
1-300mm/s
|
|
Engraving Thickness:
|
0-2mm(depends on materials)
|
|
Cutting Thickness:
|
0-20mm(depends on materials)
|
|
Water Protechion:
|
Yes
|
|
Positioning Way:
|
Red Light Positioning
|
|
Locating Precision:
|
≤0.01mm
|
|
Work Platform:
|
Honeycomb/Fixed/Lift platform
|
|
Laser power:
|
60W/80W/100W/130W/150W
|
|
Laser Type:
|
Sealed CO2 Laser Tube
|
|
Cooling Mode:
|
Water Cooling Protection System
|
|
Net Weight:
|
380/420 KG
|
|
Lift Range:
|
Electric Regulation 0-200mm
|
|
Power Supply:
|
AC110-220V/50-60HZ(Custom Made)
|
|
Packaging:
|
Standard Plywood Case
|
|
DSP Interface:
|
USB 2.0
|
|
Auxiliary Device:
|
Exhaust Fan, Exhaust Pipe,Water Pump,Air Pump,User Manual
|
|
Optional Accessories:
|
Simple rotation, standard chuck, chiller,auto focus system,Water Protection,CCD camera,Blade work platform
|
|
Certification:
|
CE
|
Optional Configuration
Simple Rotary Axis
Standard Rotary Axis
S & A Water Chiller（
CW-3000/5000
）
Accessories
(Warranty card、Water pump、Base(Four wheels)、USB cable etc.)
Application Industry
Applicable Materials
Wood, acrylic, stone, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other nonmetal materials.
Applicable Industries
Advertisements, gifts, crafts, arts, toys, shoes, computers, model making, garments, building, paper, packaging and printing.
|
Applicable Materials
|
Cutting
|
Engraving
|
|
Acrylic | Plexiglass | PMMA | Perspex
|
√
|
√
|
|
Organic Board | Double Color Sheet
|
√
|
√
|
|
Wood | Plywood | Veneer | MDF | Balsa
|
√
|
√
|
|
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather
|
√
|
√
|
|
Fabric | Cloth | Textile
|
√
|
√
|
|
Carpet | Mat | Rug | Wool Felt
|
√
|
√
|
|
Paper | Cardboard | Chipboard | Press Board
|
√
|
√
|
|
Ceramic | Tile | Marble | Glass
|
×
|
√
|
|
Plastic
|
√
|
√
|
|
Fiber Glass | Filter Cloth
|
√
|
×
|
|
Coated Metal/Anodized Metal
|
×
|
√
|
|
Cutting thickness of different laser power for reference
|
|
|
|
|||
|
Laser power(W)
|
Acrylic(mm)
|
Plywood(mm)
|
MDF(mm)
|
|||
|
40W
|
3
|
2
|
1.5
|
|||
|
60W
|
8
|
5
|
3
|
|||
|
80W
|
12
|
8
|
6
|
|||
|
100W
|
15
|
12
|
9
|
|||
|
150W
|
25
|
20
|
15
|
|||
*The above data is for reference only.
