Quick Details
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USBFHD01M-SFV(2.8-12)
-
Special Features:
-
Optical Zoom
-
Network:
-
USB Camera
-
Video Compression Format:
-
MJPEG,YUY2
-
HD camera:
-
1080P WEBCAM 30fps
-
Max frame rate:
-
720P 60fps, 640x480 120fps
-
Pixels:
-
2mp usb camera
-
Resolution:
-
FULL HD 1920(H)x1080(V)pixels
-
Image Sensor:
-
CMOS OV2710
-
CS Mount Lens:
-
Standard CS 2.8-12mm varifocal lens zoom 4x
-
Support free driver:
-
USB Video Class(UVC)
-
OTG:
-
Support OTG function
-
USB Type:
-
USB2.0 High speed
-
Support OS:
-
Windows, Linux ,Android camera
Quick Details
-
Function:
-
Wide Angle
-
Data Storage Options:
-
Full HD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USBFHD01M-SFV(2.8-12)
-
Special Features:
-
Optical Zoom
-
Network:
-
USB Camera
-
Video Compression Format:
-
MJPEG,YUY2
-
HD camera:
-
1080P WEBCAM 30fps
-
Max frame rate:
-
720P 60fps, 640x480 120fps
-
Pixels:
-
2mp usb camera
-
Resolution:
-
FULL HD 1920(H)x1080(V)pixels
-
Image Sensor:
-
CMOS OV2710
-
CS Mount Lens:
-
Standard CS 2.8-12mm varifocal lens zoom 4x
-
Support free driver:
-
USB Video Class(UVC)
-
OTG:
-
Support OTG function
-
USB Type:
-
USB2.0 High speed
-
Support OS:
-
Windows, Linux ,Android camera

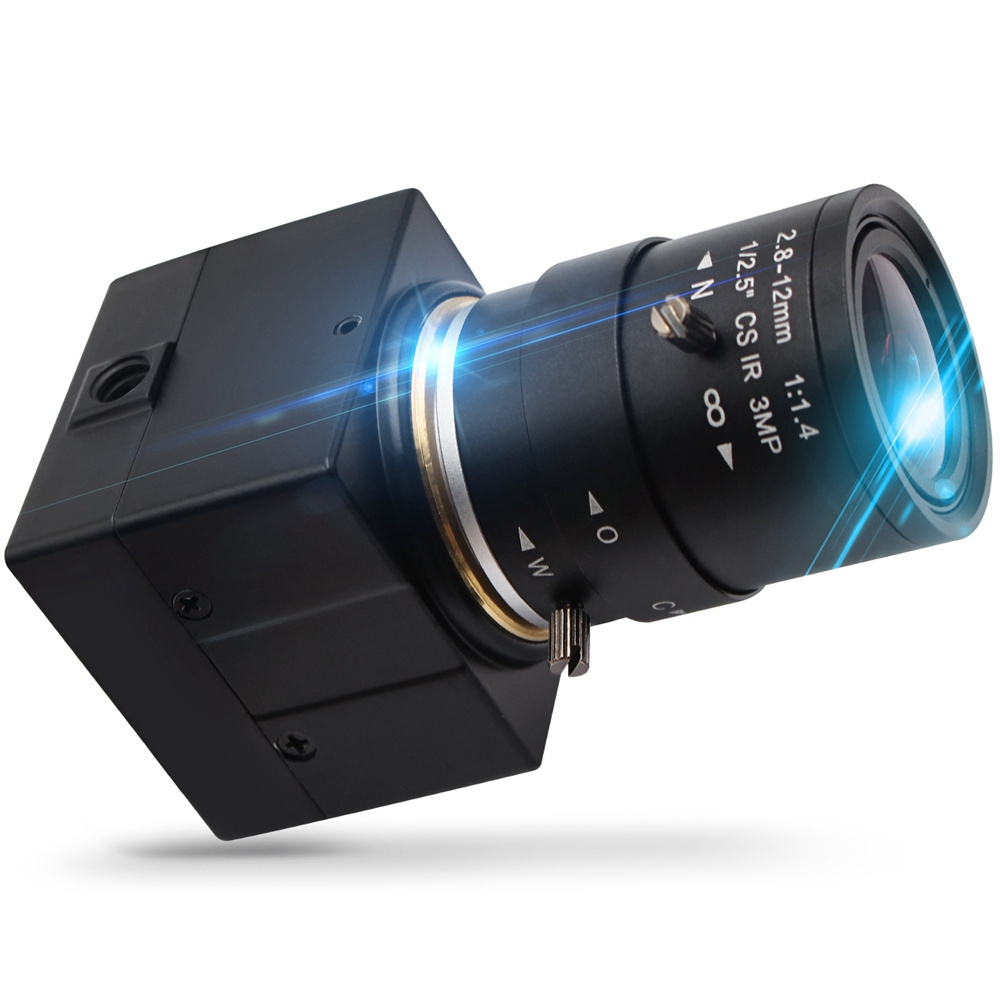

ELP Full HD Webcam 1080P 30fps/720P 60fps /VGA 640x480 120fps mini USB Camera Module with Optical Zoom 4x Lens 2.8-12mm Varifocal Video Conference Camera for PC Skype ,Video call
Model:ELP-USBFHD01M-SFV is 2MP USB Camera Max resolution 1920(H)X1080(V), adopt to CMOS OV2710 Sensor ,come with CS Varifocal lens ,support manual zoom ,manual adjust , standard 3meters USB Cable .
Free driver ,plug and play in most operation system ,such as Windows, Linux, Mac , Android.
Main Features
*High Speed 1080P HD USB Camera
*Equipped with standard CS Mount ,2.8-12mm varifocal zoom
lens
*Can drive
30fps@1080P and 60fps@720p, 120fps at 480P
*
CMOS OV2710 senso
r for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.
(
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
|
Model : ELP-USBFHD01M-SFV(2.8-12) |
|||
|
Resolution & frame rate |
320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps
|
||
|
Sensor |
CMOS OV2710 |
Picture format |
MJPEG or YUY2(YUYV) |
|
Sensor Size |
1/2.7 inch |
Mini illumination |
0.05lux |
|
Pixel Size |
3μm x 3μm |
Lens Parameter |
CSA Mount, 2.8-12mm varifocal lens, or 5-5mm lens, zoom 10x |
|
Image Area |
5856μm x 5856μm |
Cable |
Standard 3M/ Optional 2m,1m,5m |
|
Max. Resolution |
FULL HD 1920(H)x1080(V)pixels |
Board Size/
|
about 400g |
|
Interface |
USB2.0 High speed |
Shutter Type |
Rolling shutter/ Frame exposure |
|
Free driver |
USB Video Class(UVC) |
Adjustable parameters |
Brightness, Contrast, Saturation, Hue,
Sharpness, Gamma, Exposure
|
|
USB Protocol |
USB2.0 HS/FS |
Special Function |
Lens correction/ Defective pixel correction/ Black sun cancellation |
|
OTG protocol |
USB2.0 OTG |
AEC, AEB,AGC |
Support |
|
Power Supply |
DC 5V |
Working temperature |
0~60 degree |
|
Working Current |
120mA~220mA |
Storage temperature |
-20~75 degree |
|
Night vision |
Not support |
LED board power connector |
Support 2P-2.0mm socket |
|
Support OS |
WinXP/Vista/WIN7/WIN8 /
|
||
Product Display
EFFECT Show-outside at dusk
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
