Quick Details
-
Capacity:
-
600-4000kg
-
Feature:
-
Corrosion Protection, Corrosion Protection
-
Certification:
-
Australia Standards AS4084,CE,ISO
-
Depth:
-
800-1500mm
-
Width:
-
1200-3700mm
-
Height:
-
2000-15000mm
-
Color:
-
Blue,orange or as your required
-
Surface treatment:
-
Powder Coating or galvanized
-
OEM&ODM:
-
Avaliable
-
Warranty:
-
5 years
-
Material:
-
Steel Q235
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Victory
-
Model Number:
-
WS001-1
-
Capacity:
-
600-4000kg
-
Feature:
-
Corrosion Protection, Corrosion Protection
-
Certification:
-
Australia Standards AS4084,CE,ISO
-
Depth:
-
800-1500mm
-
Width:
-
1200-3700mm
-
Height:
-
2000-15000mm
-
Color:
-
Blue,orange or as your required
-
Surface treatment:
-
Powder Coating or galvanized
-
OEM&ODM:
-
Avaliable
-
Warranty:
-
5 years
-
Material:
-
Steel Q235

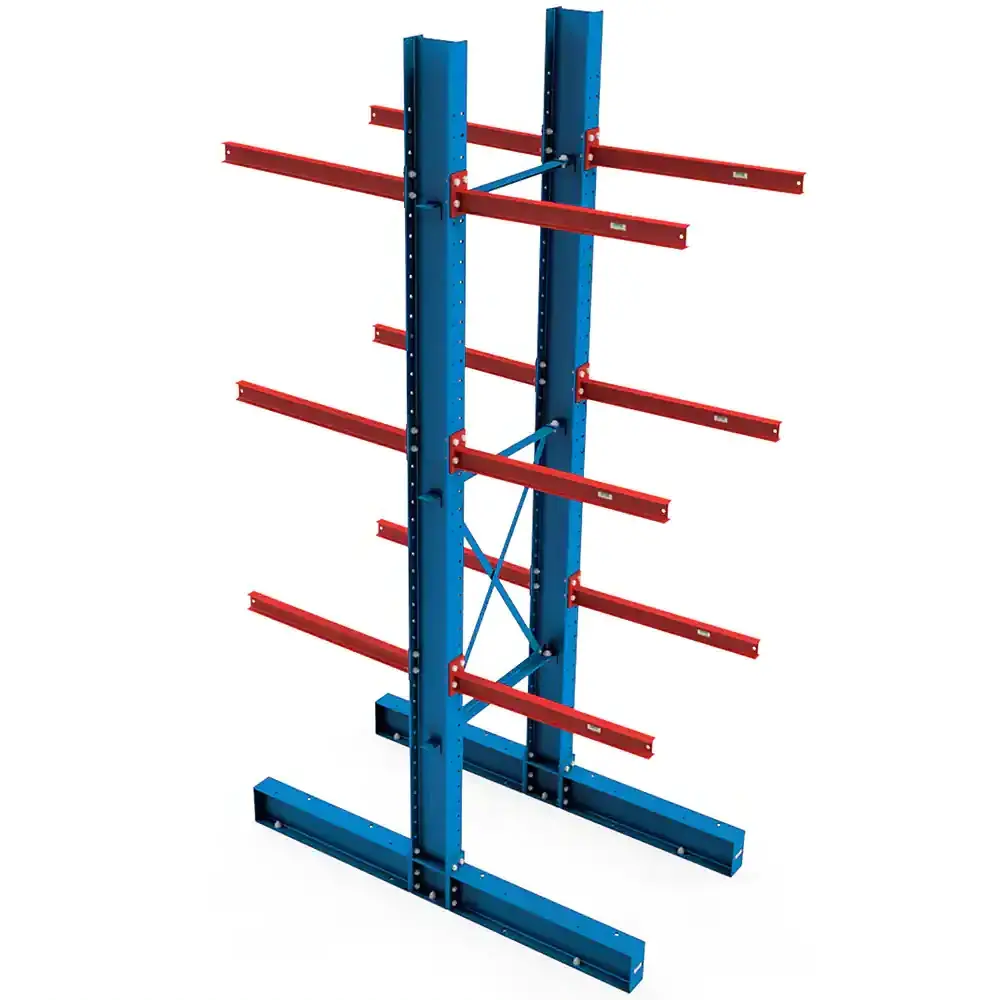

Cantilever Rack
Cantilever rack
, which also called arm rack, is ideal solution for storage of long objects like metal extrusions, steel bars, tubes, pipes, carpet rolls, lumber and furniture etc.
Cargos can be completely accessible from the front without any of the horizontal restrictions of traditional pallet racking, loads of differing lengths may be stored on the same rack and even at the same level.
Cantilever rack
is designed for single and double sided column use. Columns are pre-punched on both sides for conversion from single-sided to double-sided cantilever layouts, arms are easily adjustable and cantilever rack may be switched between single sided or double sided cantilever.
It's mainly used in the mechanical manufacturing industry and markets for building materials.
Quality & Benefits:
Cantilever Racks offer the following distinct advantages over standard pallet racks :
1
.
Ease of Use:
Cantilever rack has no front column to interfere with the placement or retrieval of loads, lowering handling time and
costs.
2
.
Flexibility:
Loads may be place anywhere along the entire length of a row of cantilever rack.
3
.
Space Utilization:
Without a front column, cantilever rack loses less horizontal space to rack structure and handling clearances.
4
.
Adaptability:
Cantilever rack can store nearly any type of load, but is especially useful with long, bulky or odd shaped loads.
5
.
Economy:
In addition to reduced handling times and increase space utilization, Cantilever becomes more economical as the
load length increase, while standard pallet rack increases in cost.
|
Product name
|
CANTILEVER RACK
|
|
Model
|
OR-CR 002
|
|
Material
|
High-quality steel Q235B
|
|
Size
|
Height: 1500-6000mm
Width/Length: design as your requirement |
|
Dimension
|
Customized(Special sizes also available to specific storage needs)
|
|
Layers
|
2-8 adjustable layers (can be customized)
|
|
Loading capacity
|
300-2000kgs/arm
|
|
Color
|
Blue/Orange/Light Grey or as your requirement;
|
|
Guarantee period
|
5 years warranty
|
|
MOQ
|
10 sets
|
|
Structure
|
Knock down structure, easy assembling, convenient for delivery.
|
1.Q: Are you a factory or trading company?
A: We are a factory.We specilize in all kinds of warehouse storage rack.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Nanjing City, Jiangsu Province, China.You can fly to Nanjing airport directly. You are warmly welcome to visit us whenever you are available!
3.Q: What is the raw material of your products?
A: The raw material of steel code is Q235.Other steel is also available to clients' requirements.
4.Q: What is the term of payment?
A: TT,LC,Western Union are available.
5.Q: What is the delivery times?
A: In general, within 15 days after deposit.
6.Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
7.Q: How could you guarantee the products quality?
A: We have professional engineer to check what size should be used to guarantee your load weight request.Before shipping, our quality control also would carefully check whether the quality is approved.
8.Q: How could I install the racks?
A:We would provide detail install drawing to teach you how to install the racks. If needed, we also could provide free engineer to teach you installation. But related cost( Flight, living and eating) should be in your charge.
