Quick Details
-
Model Number:
-
W-200
-
For gas:
-
CO2 Ar MAG
-
High pressure gauge:
-
25MPa
-
Inlet pressure(P1):
-
Ar,MAG:14.8MPa the following
-
Weight:
-
1.5kg
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Vtech
-
Model Number:
-
W-200
-
For gas:
-
CO2 Ar MAG
-
High pressure gauge:
-
25MPa
-
Inlet pressure(P1):
-
Ar,MAG:14.8MPa the following
-
Weight:
-
1.5kg

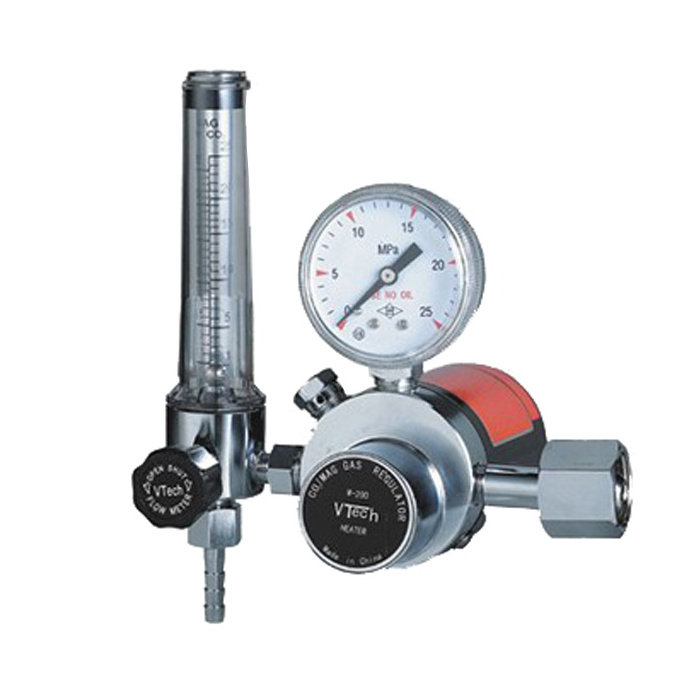

W-200 Carbon Dioxide regulator
Standard Style:
|
For Gas |
CO2. Ar. MAG |
Power |
190W, 210W |
|
High pressure gauge |
25MPa |
Voltage |
36V,110V,220V |
|
Inlet pressure(P1) |
Ar,MAG:14.8MPa the following CO2:12MPa the following |
Inlet thread |
G5/8-14”-RH(F) |
|
Adjust the pressure(P2) |
0.35MPa |
Outlet thread |
M12-1.0RH |
|
Flow Range Flow Pressure: |
1~25L/min 0.35MPa |
Weight:
|
1.5 kg
|
|
Meter Mode |
Out Type |
Power Line |
3m |
The main material:
|
Regulator Body |
C3771BE |
|
Flowmeter Body |
C3604BD |
|
Seat |
PTFE |
|
Flowmeter Tube |
PC |
|
0 Type Ring |
|
NBR, FKM |
List Style:
|
Model |
For gas |
Input Voltage |
Output Meter |
Inlet Pressure Gauge |
Outlet Pressure gauge |
Inlet thread |
Outlet thread |
|
W-200-36 |
CO2/MAG |
36VAC,210W |
1-25LPM |
25 MPa |
0.35MPa |
G5/8-14”-RH(F) |
M12-1.0RH(M) |
|
W-200-110 |
CO2/MAG |
110VAC,210W |
1-25LPM |
25 MPa |
0.35MPa |
G5/8-14”-RH(F) |
M12-1.0RH(M) |
|
W-200-220 |
CO2/MAG |
220VAC,210W |
1-25LPM |
25 MPa |
0.35MPa |
G5/8-14”-RH(F) |
M12-1.0RH(M) |
