Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
zhengrun
-
Voltage:
-
7kw
-
Dimension(L*W*H):
-
4300*3900*2600
-
Weight:
-
4000 kg
-
Product name:
-

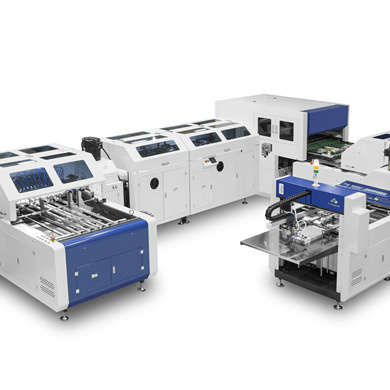

Fully Automatic Case Maker Line
-
Paper Size(AxB):
-
Min. 130x230mm Max. 570*1030mm
-
Paper Thickness:
-
100-300g/m2
-
Cardboard thickness:
-
1-3mm
-
Case Size:
-
Min. 100x200mm Max. 540x1000mm
-
Min.Spine Width(S):
-
7mm
-
Folding Size:
-
10~18mm
-
Cardboard Qty.:
-
6pieces
-
Precision:
-
±0.1mm
-
Air Supply:
-
55L/min Q.6Mpa
Quick Details
-
Type:
-
Paper Folding Machine
-
Production Capacity:
-
50 m/min
-
Max. workable width:
-
1200mm
-
Place of Origin:
-
China
-
Brand Name:
-
zhengrun
-
Voltage:
-
7kw
-
Dimension(L*W*H):
-
4300*3900*2600
-
Weight:
-
4000 kg
-
Product name:
-
Fully Automatic Case Maker Line
-
Paper Size(AxB):
-
Min. 130x230mm Max. 570*1030mm
-
Paper Thickness:
-
100-300g/m2
-
Cardboard thickness:
-
1-3mm
-
Case Size:
-
Min. 100x200mm Max. 540x1000mm
-
Min.Spine Width(S):
-
7mm
-
Folding Size:
-
10~18mm
-
Cardboard Qty.:
-
6pieces
-
Precision:
-
±0.1mm
-
Air Supply:
-
55L/min Q.6Mpa
|
Paper Size(AxB)
|
Min. 130x230mm Max. 570*1030mm
|
|
Paper Thickness
|
100-300g/m2
|
|
Cardboard Thickness
|
1~3mm
|
|
Case Size
|
Min. 100x200mm Max. 540x1000mm
|
|
Min.Spine Width(S)
|
7mm
|
|
Folding Size
|
10~18mm
|
|
Cardboard Qty.
|
6pieces
|
|
Precision
|
±0.1mm
|
|
Speed
|
<35sheets/min
|
|
Motor Power
|
20kw/380v 3phase
|
|
Electric Heating Power
|
22kw
|
|
Air Supply
|
55L/min 0.6Mpa
|
|
Machine Weight
|
6500kg
|
|
Machine Dimension
|
L11300xW4450xH1800mm
|
Camera Positioning System
Three camera positioning and mechanical
arm clamping box to achieve high-precision
positioning.
Digital Adjustment Of Sizes
Adopt new design of servo and pneumatic
structucture to wrap the box,fast digital
adjustment of sizes.
Servo Controlled Paper Feeder
New designed servo controlled paper feeder adopts
post-sucking pre-pushing type to convey paper
which efficiently avoids two pieces of papers entering
into the machine.
Line-touch Designed Copper Scraper
The copper scraper cooperates with the glue
roller by line-touch design which makers the
scraper more durable.
Concentrated lubrication System
The concentrated oil system fully ensures
each parts lubricating and the steady running
of machine.
Glue Viscosity Meter
Ayto glue viscosity meter efficiently adjusts
the glue stickiness which ensures the quality
of finished products.
Zhejiang Zhengrun Machinery Co., Ltd., founded in 1997, is specialized in the research, development, design,
production and sales of Tiandi cover box making equipment and cover machine equipment.The company has
a modern standard workshop of 66000 square meters, as well as a highly professional R&D and production team and internationally leading ultra-large production and processing center equipment. Zhengrun packaging equipment
involves many fields, such as electronic equipment, cosmetics, jewelry, wine, clothing and shoes, moon cake tea, desk calendar notebook, etc., and supplies gift boxes and color boxes for many well-known brands. The company has
the right to import and export by itself, has passed the ISO9001 quality management system certification, and
all products have passed the European CE product certification. Its products and services cover more than 80 countries and regions around the world.
Since its establishment, Zhengrun Machinery has always adhered to the enterprise development concept of "quality casting Zhengrun brand", inherited the spirit of craftsman, pursued higher quality, established a stronger brand,
and is committed to becoming a representative brand of "Made in China" with inheritance value that affects the world's printing and packaging industry!
Q1: Are you a factory or trading company?
A1:We are mainly engaged in the R&D,design,production and sales of the rigid box machinery and case maker machine.
Q2: Are all your products available in stock?
A2:Some products are available in stock,please consult customer service for details to check the inventory quantity at that time.
Q3. What is your lead time?
A3:Inventory: generally 5-15 days, some products are in stock, please contact customer service for details.
Or please contact us by e-mail,according to the number of your order to determine the specific delivery date.
Q4. Do you take OEM or ODM orders?
A4: Yes,we accept OEM and ODM from customers.
Q5: How about the Shipping Method?
A5:DHL/UPS/TNT/FedEx are available by air and sea.In a word, we can ship anything you want.
Q6: What are the terms of payment?
A6: T/T,L/C
