Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
No. of Spindles:
-
Single/Double
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
1.5kw/2kw/3.5kw/5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LT
-
Voltage:
-
AC220V/50Hz
-
Dimension(L*W*H):
-
800x1100x1650mm
-
Power (kW):
-
3.2
-
Weight (KG):
-
400
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Product name:
-
CNC Wood Working Machine
-
Keywords:
-
Laser Carving Cnc Machine
-
Control system:
-
NcStudio Control System
-
Function:
-
Cutting Engraving Non-metal Materials
-
Motor:
-
Stepper Motor
-
Working area:
-
600x900mm
-
Table:
-
T.slot Table
-
Table Surface:
-
T-slot
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
No. of Spindles:
-
Single/Double
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
1.5kw/2kw/3.5kw/5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LT
-
Voltage:
-
AC220V/50Hz
-
Dimension(L*W*H):
-
800x1100x1650mm
-
Power (kW):
-
3.2
-
Weight (KG):
-
400
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Product name:
-
CNC Wood Working Machine
-
Keywords:
-
Laser Carving Cnc Machine
-
Control system:
-
NcStudio Control System
-
Function:
-
Cutting Engraving Non-metal Materials
-
Motor:
-
Stepper Motor
-
Working area:
-
600x900mm
-
Table:
-
T.slot Table
-
Table Surface:
-
T-slot
2200W Water Cooling Spindle mini 6090 advertising cnc router 3d wood carving machine ,4 axis cnc router woodworking machine
Specification
|
Dimension
|
800x1100x1650mm
|
|
Platform size
|
600x900mm
|
|
Work area
|
600x900*200
|
|
Travelling speed
|
20m/min(MAX)
|
|
Working speed
|
12m/min(MAX)
|
|
Working voltage
|
AC220V(Optional 380V)
|
|
Spindle power
|
Water cooled 2.2KW-24000RPM
|
|
Device architecture
|
One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small
deformation |
|
Driving system
|
XYZ: 86 high torque stepper drive motor and drive
|
|
Rack and pinion
|
The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack
|
|
Guide Rails
|
Taiwan Original 20 guide rails
|
|
Operating system
|
NC studio
|
|
Platform structure
|
Aluminum profile + fixture
|
|
Electrical accessories
|
Omron, Chint
|
|
Inverter
|
Best
|
|
Power cable
|
Shanghai customized high-soft high-speed shielding cable, anti-interference and anti-breakage
|
|
Lubrication system
|
Oil pump centralized lubrication control
|
|
Security system
|
Overtravel protection, electrical protection etc.
|
|
Dust collector
|
2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood
|
|
Fastenings
|
The transmission parts are fixed with high strength 12.9 class screws,and the sheet metal is fixed with 304 stainless steel screws
|
|
Accuracy
|
Each axis is fixed rigidly, and the locating pin is added to the precision part
|
|
Quality Control
|
Incoming material, process, delivery full control,24 hours machine test
|
Product Description
The company's products used in stone, wood, advertising, construction, decoration, crafts and mould making,our main products includes :Board furniture production line ,CNC cutting machine, wood carving machine, stone carving machine. Advertising engraving machine, mold engraving machine,saidiao series engraving machine has the advantages of processing strength, running speed and continuous stability.
The company has a professional installation training technical team,we constantly provide users with satisfactory new products, so that our provide customers with thoughtful services
2200W Water Cooling Spindle mini 6090 advertising cnc router 3d wood carving machine ,4 axis cnc router woodworking machine
2200W Water Cooling Spindle mini 6090 advertising cnc router 3d wood carving machine ,4 axis cnc router woodworking machine

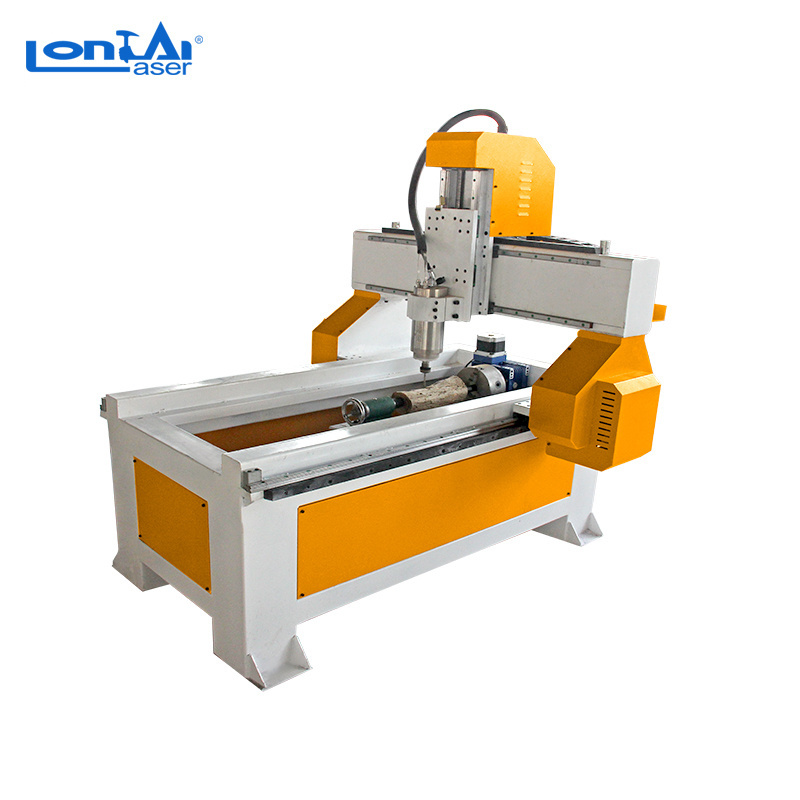

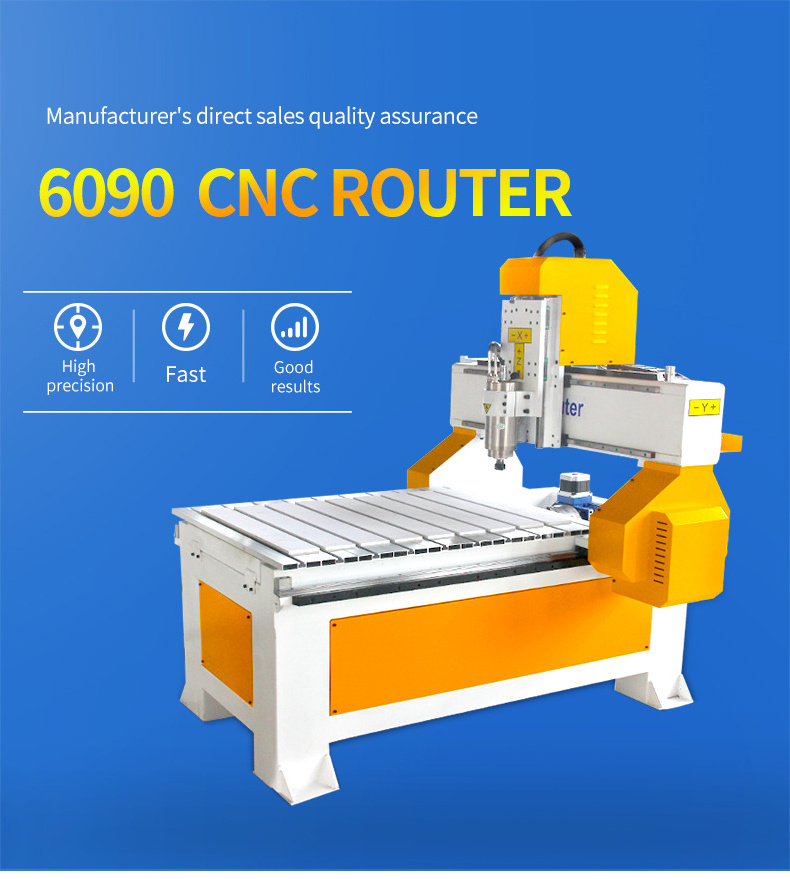

This 6090 cnc router 600*900mm table size is also called 3 axis CNC Wood Router machine. With popular working size of 6090 (600×900cm), it is suitable for wooden industry, furniture industry, technology research, advertising design, arts creation, and
hobby purposes.
Details Images
Sample Display
Application and Industry
WoodFurniture Industry:
Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboarddoors, interior doors, sofa legs, headboards and so on.
Advertising Industry:
advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making.
Die Industry:
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,PVCpipe, wooden planks and other non-metallic mold.Relief Sculpture and 3D Engraving & Cylindrical object.
