Quick Details
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
10 - 800 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
Durmapress
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
3600 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380
-
Dimension(L*W*H):
-
2800*1800*2000mm
-
Year:
-
2021
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Name:
-
Hydraulic Shearing Machine
-
Application:
-
Industrial Metal Cutting
-
Product name:
-
Metal Steel Cutting Machine
-
Type:
-
Hydraulic Cutting Tools
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Keyword:
-
Metal Steel Cnc Cutting Machine
-
Function:
-
Shear Steel Plate
-
Machine type:
-
Hydraulic Cutting Machine Shearing Machine
-
Control system:
-
E21S Control System/DAC310T/DAC360T
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
0.5-2.5
-
Blade Length (mm):
-
2600 mm
-
Backgauge Travel (mm):
-
10 - 800 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
Durmapress
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
3600 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
380
-
Dimension(L*W*H):
-
2800*1800*2000mm
-
Year:
-
2021
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Name:
-
Hydraulic Shearing Machine
-
Application:
-
Industrial Metal Cutting
-
Product name:
-
Metal Steel Cutting Machine
-
Type:
-
Hydraulic Cutting Tools
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Keyword:
-
Metal Steel Cnc Cutting Machine
-
Function:
-
Shear Steel Plate
-
Machine type:
-
Hydraulic Cutting Machine Shearing Machine
-
Control system:
-
E21S Control System/DAC310T/DAC360T
Products Description

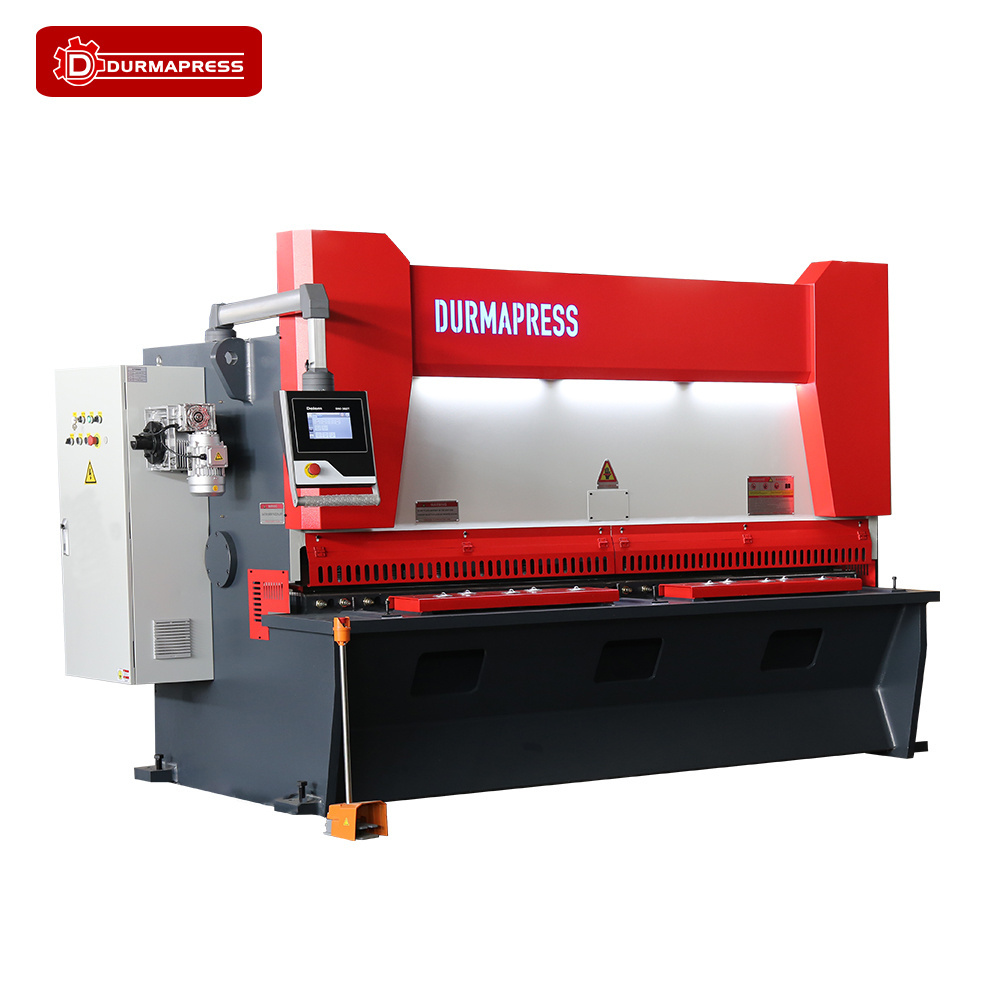

Shearing Machine
The robust monolithic structure is a guarantee of great stability and precision of cut. Even the design is perfected according to criteria of maximum functionality and efficiency, such as to reduce maintenance and operator interventions to the minimum.
Main Configuration
• Solid monolithic structure
• An avant-garde hydraulic system
• Blade carrier beam: Thrust cylinders on the cutting axis with blade carrying beam
• Blade pressure cylinders, with auto-regulating pressure, based on cutting force
• Blade carrying beam guide over the whole cutting length
• Rear regulator with recirculating ball screws
• Running wheels' table and frontal support
• Twin-edged blades
• Cutting line with LED illumination
• Frontal support frame complete with retractable adjustable guides, millimetre rule and running wheels
• HIWIN Ball screws & Polished rod with 0,05 mm accuracy.apes.
• An avant-garde hydraulic system
• Blade carrier beam: Thrust cylinders on the cutting axis with blade carrying beam
• Blade pressure cylinders, with auto-regulating pressure, based on cutting force
• Blade carrying beam guide over the whole cutting length
• Rear regulator with recirculating ball screws
• Running wheels' table and frontal support
• Twin-edged blades
• Cutting line with LED illumination
• Frontal support frame complete with retractable adjustable guides, millimetre rule and running wheels
• HIWIN Ball screws & Polished rod with 0,05 mm accuracy.apes.
DAC360T
• High-definition LCD display, 128x64 pixels
• Backgauge control
• Knife edge gap control
• Cutting stroke control
• The actual position of the back gauge is displayed synchronously with the programmed
• value • Cut count
• 100 steps • Panel mount
• Servo control frequency conversion speed
• control/ two-speed AC
• motor control
• Knife edge gap control
• Cutting stroke control
• The actual position of the back gauge is displayed synchronously with the programmed
• value • Cut count
• 100 steps • Panel mount
• Servo control frequency conversion speed
• control/ two-speed AC
• motor control
Advantage:
German Famous brand motor improves the Lifespan of the machine and keeps the machine working in low noise envlroment.
Durmapress ® Blade Clearence
Adjustment：
Adjust the cutting blades gap by motor according the cutting thickness of the metal sheet can get better cutting performance.
|
Accessory
|
|
|
|
|||
|
GB799-1988
|
Bolt M16 X 500
|
Piece
|
4
|
|||
|
GB6170-2000
|
Nuts M16
|
Piece
|
4
|
|||
|
GB97.1-1985
|
Washer Ф16
|
Piece
|
4
|
|||
|
CQJ-D-H/25
|
Inflatable tools
|
suit
|
2
|
|||
