Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SINOMAKE
-
Model Number:
-
SM-CB60
-
Warranty:
-
12 Months
-
Product name:
-
Automatic Car Tire Changer Machine
-
Certification:
-
CE
-
Feature:
-
automatic tyre lifting device
-
Rim diameter:
-
10"-30"
-
Wheel width:
-
3"-13"
-
Bead breaker force:
-
1400 kg
Quick Details
-
Motor Power:
-
0.85/1.1kw
-
Operating Pressure:
-
8-10Bar
-
Power Supply:
-
110/220/380V
-
Place of Origin:
-
China
-
Brand Name:
-
SINOMAKE
-
Model Number:
-
SM-CB60
-
Warranty:
-
12 Months
-
Product name:
-
Automatic Car Tire Changer Machine
-
Certification:
-
CE
-
Feature:
-
automatic tyre lifting device
-
Rim diameter:
-
10"-30"
-
Wheel width:
-
3"-13"
-
Bead breaker force:
-
1400 kg

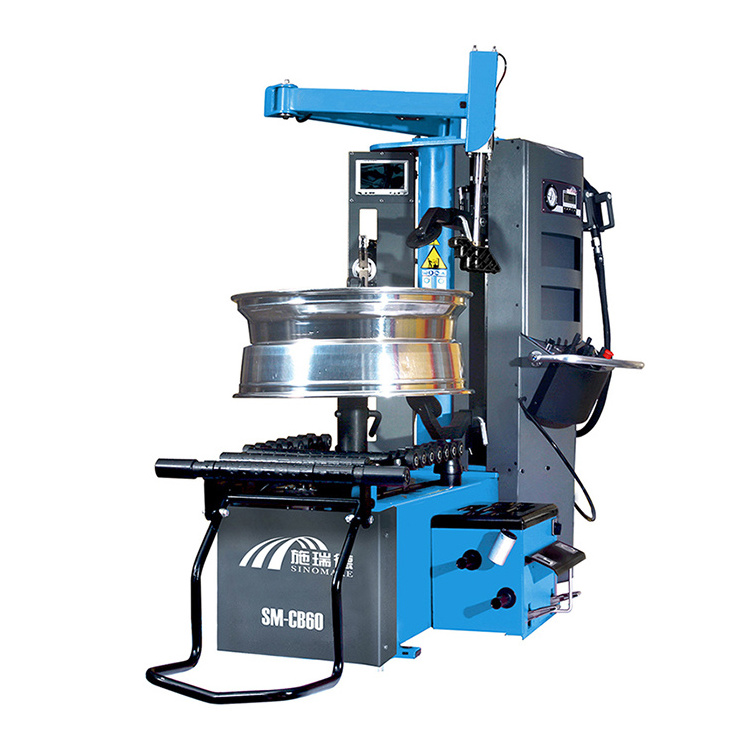

SM-CB60 380V automatic tire changer machine 30 inch rim diameter with LCD screen automatic tyre lifting device
Special Notice:
The price is CIF price,means the shipment way is by sea,and it need to be confirmed thenearestsea port to your city which the ship could arrive to is the destination sea port.If you choose other shipment way,please contact us to discuss and confirm the destination air port,and we will quote you the final price including the air shipment cost.
Note: The input of this device is 380V3ph
SM-CB60 automatic tire changer product features:
1. The head breaker with upper and lower disks, this system is fast,powerful and effecient.
2. Auto-locating mount head, it can increase the operation speed and reduce the probability of damage.
3. Automatic tyre lifting device will save labor. The extension arm is retractive an convenient to lift the big tyre.
4. The main rotating entre shaft can be adjusted. This will increase the operation range for the different thickness of tyre.
5. The head breaker disks and main centre shaft is controlled by the switch and it can be realized the multi-point synchronous. This will increase the work efficiency and the bead breaker fouce is 1400kg.
6. The mounting head and main shaft can be synchronization centered automatically.
7. Humanized operation panel makes the whole operation process simple and easy,
8. Blast inflation can only be acted by two hands making the operation safer and more reliable.
9. Standard configuration the monitor system and the LCD screen, enable the working process fast and safe.
SM-CB60 automatic tire changer technical parameters:
| Rim diameter | 10"-30" |
| Max wheel diameter | 1300 mm |
| Wheel width | 3"-13" |
| Bead breaker force | 1400 kg |
| Working pressure | 8-10 bar |
| Motor power | 0.85/1.1 kw |
| Power supply | 110/220/380 V |
| Noise | 75 db |
Export standard package, professional forwarder shipment, goods transportation safety.
Wooden box packaging
Net weight: 584 kg Gross weight: 632 kg
Packing dimension: 1680*1150*2000 mm
Volume: 3.9 CBM
Quantity in 20" container: 6
Quantity in 40" container: 14
