Quick Details
-
Weight (KG):
-
360
-
Voltage:
-
220V,50/60Hz can customize
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH
-
Dimension(L*W*H):
-
2100*1200*1230mm
-
Bag type:
-
3 Sides Seal
-
Main Function:
-
Counting filling sealing
-
Packing speed:
-
20-60bags/min
-
Film material:
-
BOPP
-
Advantage:
-
Servo Motor Control
-
Keyword:
-
agarbatti counting and packing machine
-
Feature:
-
High Efficiency Easy Operation
-
Bag length:
-
200-550mm adjustable
-
Bag width:
-
30-70mm
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, counting
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
360
-
Voltage:
-
220V,50/60Hz can customize
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH
-
Dimension(L*W*H):
-
2100*1200*1230mm
-
Bag type:
-
3 Sides Seal
-
Main Function:
-
Counting filling sealing
-
Packing speed:
-
20-60bags/min
-
Film material:
-
BOPP
-
Advantage:
-
Servo Motor Control
-
Keyword:
-
agarbatti counting and packing machine
-
Feature:
-
High Efficiency Easy Operation
-
Bag length:
-
200-550mm adjustable
-
Bag width:
-
30-70mm

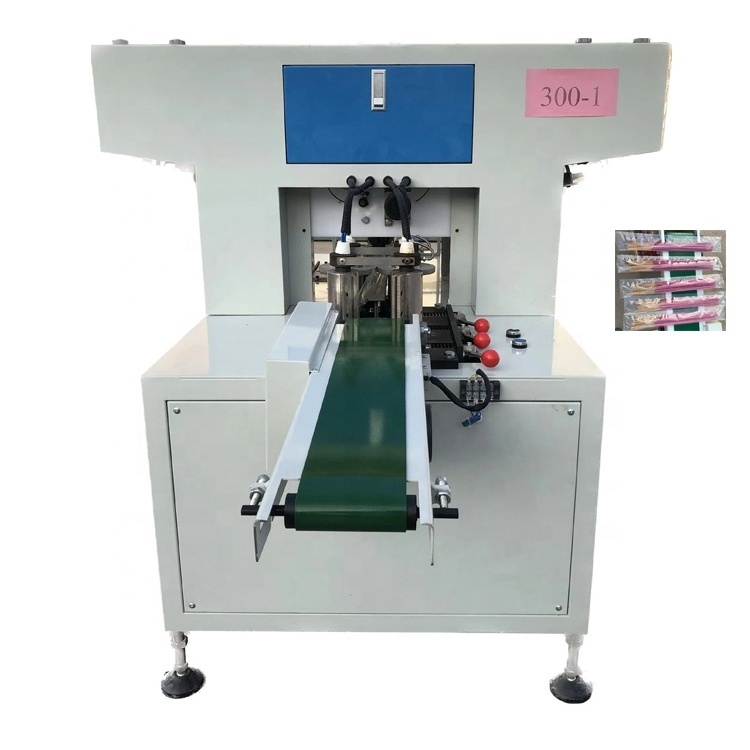

Brief Introduction of incense stick counting and packing machine:
1.The machine adopts touch screen control,the main control circuit plc intelligent control,accurate measurement,simple operation, no adjustment required.
2.The counting part adopts high-quality double-step simple mechanical structure, adopts Panasonic special counter,and high-precision optical fiber detection,which is accurate and reliable.Easy maintenance,less wear and longer life.
3.Fixed bag length.
4.The main engine part is sprayed and painted,the silo part adopts the bottom plate to drive the vibration,the PP material is used for shock absorption, and the inner silo is all stainless steel.
Advantages of incense stick counting and packing machine:
1.High packaging efficiency,stable performance,convenient operation and maintenance, and low failure rate;
2.It can run continuously for a long time;
3.Good sealing performance and beautiful packaging effect.
4.The packaging range is suitable for bamboo sticks,sticks,strips,2-4mm in diameter and 300-330mm in length (1-60 pieces),and the input parameters are automatically counted and packaged.
Technical data of incense stick counting and packing machine:
|
Model
|
DHXB-300-1
|
DHXB-300S
|
DHXB-350S
|
|
Bag type
|
Three-side sealing type C
|
Three-side sealing type C
|
Three-side sealing H type
|
|
Bag length
|
375mm fixed
|
200-550mm adjustable
|
200-550mm adjustable
|
|
Bag width
|
30-70mm
|
30-70mm
|
120mm
|
|
Maximum film width
|
180mm
|
180mm
|
300mm
|
|
Packing speed
|
25-45bags/min
|
25-45bags/min
|
20-60bags/min
|
|
Power requirement
|
220V,50HZ,2KW
|
220V,50HZ,2.2KW
|
220V,50HZ,2.8KW
|
|
Machine size
|
2100*1200*1230mm
|
2300*1200*1240mm
|
2780x1200x1230mm
|
Raw material pictures of incense stick counting and packing machine:
Finished pictures of incense stick counting and packing machine:
More pictures of incense stick counting and packing machine:
