Quick Details
-
Brand Name:
-
Dongfeng
-
Place of Origin:
-
Hubei, China
-
Wheelbase(mm):
-
6000
-
Engine:
-
EQH160-40
-
max speed (km/h):
-
80
-
Front axle:
-
3.5T
-
Rear axle:
-
7T
-
Tire:
-
9R22.5
-
Gearbox:
-
DF6S650
-
Emission:
-
Euro IV
-
Seat Capacity:
-
52
Quick Details
-
Seats:
-
> 50
-
Emission Standard:
-
Euro 3
-
Condition:
-
New
-
Brand Name:
-
Dongfeng
-
Place of Origin:
-
Hubei, China
-
Wheelbase(mm):
-
6000
-
Engine:
-
EQH160-40
-
max speed (km/h):
-
80
-
Front axle:
-
3.5T
-
Rear axle:
-
7T
-
Tire:
-
9R22.5
-
Gearbox:
-
DF6S650
-
Emission:
-
Euro IV
-
Seat Capacity:
-
52

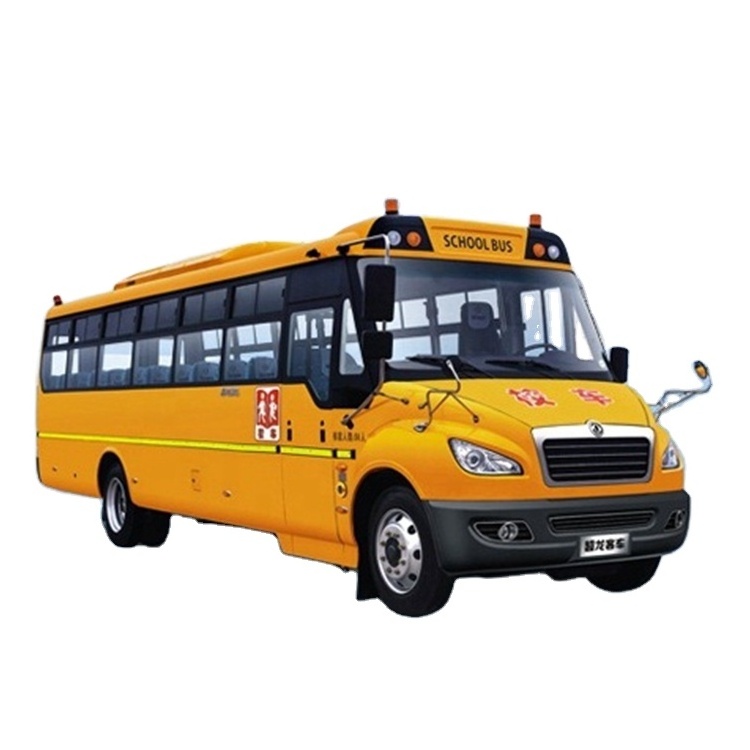

High quality safe 50 seater diesel school bus
The pictures
S pecification
| Systems | Items | Spec. | |
| Bus Basic Information | Emission | Euro III | |
| normal speed | 40 ~ 50 | ||
| Max Speed | 80 | ||
| Demensions | 9980×2500×3080 | ||
| 9980×2500×3200 ( Option A/C systems ) | |||
| Front/rear Over hang | 920/3060 | ||
| Curb Weight(kg) | 7600 | ||
| No-load axle load (front / rear) | 3000/4800 | ||
| Full axle load (front / rear) | 3450/7250 | ||
| Max.gradeability ( % ) | ≥28% | ||
| Minimum ground clearance(mm) | 220 | ||
| Minimum turning diameter( < m) | 23 | ||
| Approach / departure angle(≥°) | 25/8 | ||
| Wheel base ( mm ) | 6000 | ||
| Front/rear Tread (mm) | 2055/1800 | ||
| Spare tire lifter | S | ||
| Engine | Fuel Type | Diesel engines | |
| Engine Model | EQH160-40 | ||
| Emission | Euro III or Euro IV | ||
| Exhaust Brake | S | ||
| Oil tanks Capacity | 130L | ||
| Antifreeze | DF series antifreeze liquid rust | ||
| Engine Speed limit ( km/h ) | 80 | ||
| Battery | 165A.h , 2 Units | ||
| Generator | Voltage | 28V | |
| Current | 110A as standard | ||
| 140A as Option when option A/C systems. | |||
| Starter | 24V , 6KW | ||
| Clutch | Type | Spring | |
| Clutch Specifications | φ380mm | ||
| Clutch manipulation | Hydraulic control | ||
| Clutch Booster | Hydraulically operated gas booster | ||
| Transmission | Type | DF6S650 | |
| Frant axles | Supplier | DONGFENG DANA | |
| Rated load(t) | 3.5 T | ||
| Rear Axles | Supplier | DONGFENG DANA | |
| Main reduction ratio | 5.13 | ||
| Rated load(t) | 7 T | ||
