Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
STA
-
Model Number:
-
STA-QGT02
-
Color:
-
transparent
-
Quartz tube:
-
OD3mm-450mm
-
Wall thickness:
-
1mm-10mm
-
Length:
-
Max1240mm
-
Density:
-
2.2g/cm3
-
shape:
-
straight, one end open, both end open...
-
purity:
-
max 99.99%
-
working temperature:
-
1100 degree
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
heating,lighting,chemical industry etc.
-
Outside Diameter:
-
1.5-300mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
STA
-
Model Number:
-
STA-QGT02
-
Color:
-
transparent
-
Quartz tube:
-
OD3mm-450mm
-
Wall thickness:
-
1mm-10mm
-
Length:
-
Max1240mm
-
Density:
-
2.2g/cm3
-
shape:
-
straight, one end open, both end open...
-
purity:
-
max 99.99%
-
working temperature:
-
1100 degree

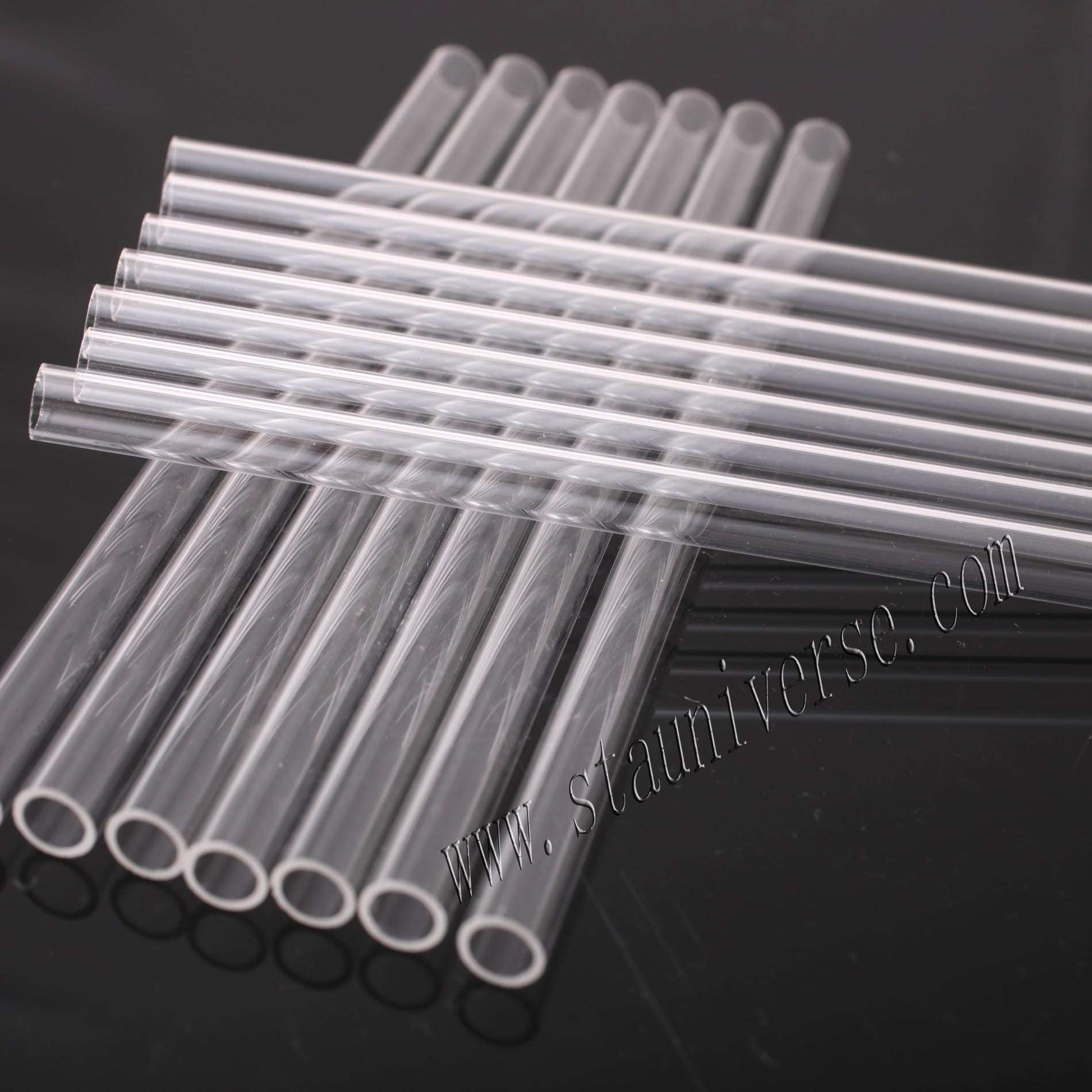

STA transparent quartz glass tube
1.Product description:
Quartz Glass Tube is made of silicon dioxide in special industrial technology glass,is a very good base material.
Quartz glass has a series of excellent physical and chemical properties.Quartz glass tube adopts advanced melting
production technology, combined with effective automatic control system for producing transparent quartz glass tube, with high purity, strong transmissivity, size control strictly, hydrowyl coneten is low, is halgen lamp, mercury lamp,
metal halide lamp and other high temperature resistant materialof choice for quartz lamp, t he exhaust pipe has the characteristicsof pipe diameter, wall thickness, high consistency, and suitable for quick assembly line production.Also can according to customer requirements to neat cutting of quartz tube, buring mouth, bend sealing, grinding, such as deep processing.
2.Specification of quartz glass tube
|
SIO2: |
99.9 % |
|
Density: |
2.2(g/cm3) |
|
Degree of hardness moh' scale: |
6.6 |
|
Melting point: |
1732 |
|
Working temperature: |
1100°C |
|
Max temperature can reach in a short time: |
1450°C |
|
Acid tolerance: |
30 times than Ceramics,150 times than Stainless steel |
|
Visible light transmittance: |
above 85% |
|
UV spectral region transmittance: |
85% |
|
Infrared light blocking rate: |
85% |
3. Size of quartz glass tube
|
Range of OD (mm) |
OD(mm) |
WT (mm) |
Siding |
Out of Round |
Bow(mm) |
|
≤6 |
±2.0% |
±10% |
12% |
2.0% |
2.5 |
|
6.00-15.00 |
±1.25% |
±8% |
10% |
1.5% |
2.5 |
|
15.00-20.00 |
±1.25% |
±10% |
15% |
1.5% |
2.5 |
|
20.00-25.00 |
±1.25% |
±10% |
15% |
1.5% |
3.0 |
|
25.00-30.00 |
±1.35% |
±12% |
15% |
1.5% |
3.0 |
|
30.00-80.00 |
±1.5% |
±14% |
15% |
2.0% |
3.0 |
|
80.00-100.00 |
±1.0% |
±0.5 |
15% |
2.0% |
3.0 |
|
100.00-120.00 |
±1.5% |
±0.8 |
15% |
2.0% |
3.0 |
|
120.00-160.00 |
±1.8% |
±1.0 |
20% |
2.5% |
3.0 |
|
160.00-180.00 |
±3.0% |
±1.0 |
25% |
2.5% |
3.0 |
|
180.00-200.00 |
±4.0% |
±1.5 |
25% |
2.5% |
3.0 |
|
200.00-240.00 |
±4.0% |
±1.5 |
25% |
2.5% |
3.0 |
|
240.00-280.00 |
±6.0% |
±2.0 |
25% |
2.5% |
3.0 |
|
280.00 |
±8.0% |
±3.0 |
25% |
2.5% |
3.0 |
4.Application
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, opticalcommunications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields.
