Quick Details
-
Model Number:
-
G48100-PS
-
Battery Size:
-
LiFePO4
-
Place of Origin:
-
shenzhen
-
Weight:
-
56.2KG, 56.2KG
-
Nominal Voltage (V):
-
51.2V
-
Nominal Capacity (Ah):
-
100Ah
-
Dimension (mm):
-
565*450*170mm
-
Communication Interface:
-
CANBUS,RS485
-
IP level:
-
IP20
-
Cycle life:
-
≥80% capacity state after 4800 cycles at 0.5C
-
OEM/ODM:
-
Acceptable
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
GeB
-
Model Number:
-
G48100-PS
-
Battery Size:
-
LiFePO4
-
Place of Origin:
-
shenzhen
-
Weight:
-
56.2KG, 56.2KG
-
Nominal Voltage (V):
-
51.2V
-
Nominal Capacity (Ah):
-
100Ah
-
Dimension (mm):
-
565*450*170mm
-
Communication Interface:
-
CANBUS,RS485
-
IP level:
-
IP20
-
Cycle life:
-
≥80% capacity state after 4800 cycles at 0.5C
-
OEM/ODM:
-
Acceptable

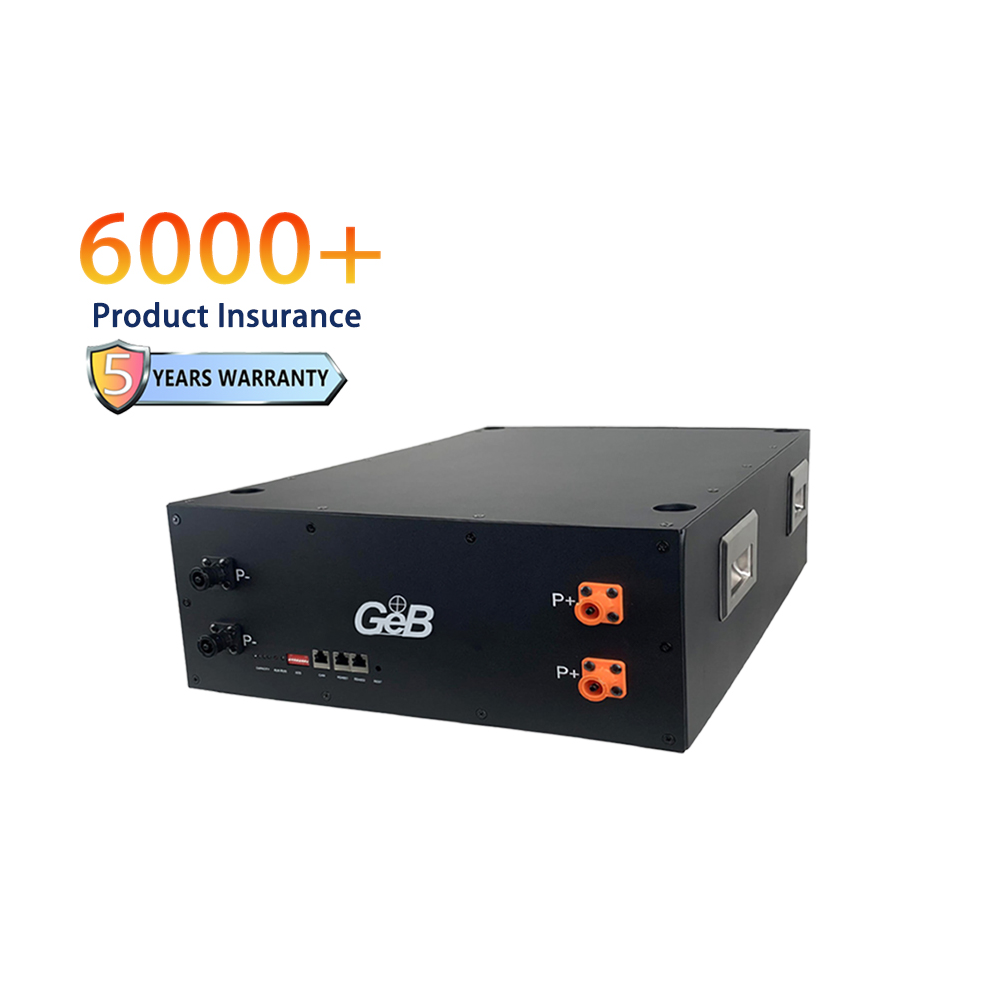

Product Description
|
Nominal voltage
|
48V/51.2V
|
Nominal capacity
|
100Ah
|
||
|
Energy
|
5.12KWh
|
Cycle life
|
4800 cycles at 0.5C, 25℃, 100DOD
|
||
|
Charge voltage
|
54.5V
|
Discharge voltage
|
41.6V
|
||
|
Charge current
|
100A
|
Discharge current
|
≤100A
|
||
|
Charge temperature
|
0～50℃
|
Discharge temperature
|
-10～50℃
|
||
|
Storage Temperature
|
0～50℃
|
Self-discharge rate
|
≤3%/month
|
||
|
Configuration
|
16S1P
|
IP class
|
IP 20
|
||
|
Weight (Kg)
|
56.2KG
|
Cell chemistry
|
Lithium iron phosphate (LiFePO4)
|
||
|
Dimension (mm)
|
565*450*170mm
|
Other configuration
|
LCD
|
||
|
Protective function
|
Over-current ,Over-voltage,Low-voltage ,Over-temperature ,Low-temperature protection,Short-circuit protection etc
|
|
|
||
|
Communication interfaces
|
CAN&RS485(Each one,connected to PCS,CAN be configured according to PCS communication protocol,to meet the communication requirements of PCS of any brands)
|
|
|
||
|
Other function
|
4800 cycles at 0.5C, 25℃, And when we use 0.25C charging ratio, our cycles can reach more than 6000+
|
|
|
||
Related Products
Applications
Why Choose GEB Battery
Automotive Grade Battery
Grade A cell, Automotive safety structure design,more safe.
We has a team of engineers with more than 14 years of automotive design experience.
6000+ cycles
Judging by the current testing report , if the battery pack charging and discharging at 0.2C, the battery pack could reach a cycle life of 6000 times or more at the remaining capacity of 80% capacity state at 25℃ room temperature, 100%DOD.
Built-in SMART BMS
Our protective plates are independently developed.
Built-in SMART BMS to protect batteries.
The
SMART
BMS provides cell balancing and current limitation during charging process to ensure a reliable safety and performance.
GEB Warranty
5 years warranty.
You can contact us at any time through our company's customer service hotline, email or online customer service.
