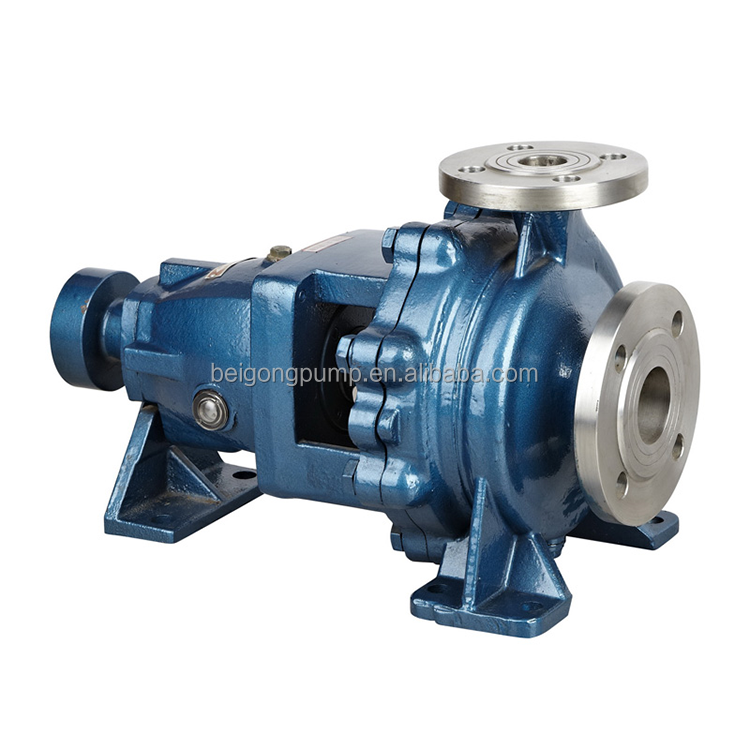

Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump
Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump
Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump
Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump
Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump
Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump
Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump
Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump

Stainless steel centrifugal pump chemical resistant circulation pumps single stage end suction water pump

FOB Reference Price: Get Latest Price
≥1 Pieces
US $780
≥5 Pieces
US $740
≥10 Pieces
US $710
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 year
Brand Name:
Beigong
Model Number:
BGIH
Place of Origin:
Hebei, China
Horsepower:
/
Cable Length:
Based on customer needs
Outlet Size:
32~150 mm
Power:
0.55~90 kw
motor:
/
Product name:
Centrifugal Water Pump
Type:
Clean Water Pump
Material:
Stainless Steel
Motor:
3 Phase Motor
Function:
Electric Pump Centrifugal
Theory:
Centrifugal Water Pump
Usage:
Chemical Industry
Feature:
Corrosion Resistant
Pump Type:
Horizontal Water Pump
Packing:
Wooden Case

Quick Details

Application:
Biofuel Industry, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Marine, Pharmaceutical industry
Pressure:
High Pressure
Voltage:
220v 380v 440v
Warranty:
1 year
Brand Name:
Beigong
Model Number:
BGIH
Place of Origin:
Hebei, China
Horsepower:
/
Cable Length:
Based on customer needs
Outlet Size:
32~150 mm
Power:
0.55~90 kw
motor:
/
Product name:
Centrifugal Water Pump
Type:
Clean Water Pump
Material:
Stainless Steel
Motor:
3 Phase Motor
Function:
Electric Pump Centrifugal
Theory:
Centrifugal Water Pump
Usage:
Chemical Industry
Feature:
Corrosion Resistant
Pump Type:
Horizontal Water Pump
Packing:
Wooden Case
Categories
Click to progressive cavity pumps
Click to stainless steel magnetic chemical pumps
Click to fluoroplastic magnetic chemical pumps
Click to vertical chemical pumps
Click to stainless steel end suction pump
Click to f luoroplastic end suction pumps
Product Introduction
Overview:
IH type single-stage single-suction chemical centrifugal pump is a single-stage single-suction (axial suction) cantilever centrifugal pump. Chemical, petroleum, metallurgy, electric power, paper, food, pharmaceutical, environmental protection, wastewater treatment and synthetic fiber industries are used to transport various corrosive or non-polluting water-like media.
Product structure



Type:
IH/IHF Maximum power: 90 kw (122 hp) Maximum flow: 460 m3/h Material: stainless steel





Water inlet bearing body and packing gland:
Compact structure, Fully sealed design, Waterproof design, small footprint.


High-quality coupling:
Compact structure, Anti-wear and oil-resistant agents, Cushioning and shock absorption performance, long lasting.






Flange outlet:
Direct connection with standard flange joints, Improve work efficiency.

Multiple driving methods
Product parameter table
Types
Speed
Capacity
Head
Motor Power
(r/min)
(m 3 /h)
(gpm)
(m)
(ft)
(kw)
IH50-32-125
2900
12.5
55.0
20
65.6
2.2
IH50-32-160
2900
12.5
55.0
32
105.0
3
IH50-32-200
2900
12.5
55.0
50
164.0
5.5
IH50-32-250
2900
12.5
55.0
80
262.4
11
IH65-50-125
2900
25
110.0
20
65.6
3
IH65-50-160
2900
25
110.0
32
105.0
5.5
IH65-40-200
2900
25
110.0
50
164.0
7.5
IH65-40-250
2900
25
110.0
80
262.4
15
IH65-40-315
2900
25
110.0
125
410.0
30
IH80-65-125
2900
50
220.0
20
65.6
5.5
IH80-65-160
2900
50
220.0
32
105.0
7.5
IH80-50-200
2900
50
220.0
50
164.0
15
IH80-50-250
2900
50
220.0
80
262.4
22
IH80-50-315
2900
50
220.0
125
410.0
37
IH100-80-125
2900
100
440.0
20
65.6
11
IH100-80-160
2900
100
440.0
32
105.0
15
IH100-65-200
2900
100
440.0
50
164.0
22
IH100-65-250
2900
100
440.0
80
262.4
37
IH100-65-315
2900
100
440.0
125
410.0
75
IH125-100-200
2900
200
880.0
50
164.0
45
IH125-100-250
2900
200
880.0
80
262.4
75
IH125-100-315
2900
200
880.0
125
410.0
110
Product application:
IH pumps are used in urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, dyes, printing and dyeing, brewing, electricity, electroplating, papermaking, petroleum, mining, equipment cooling, oil tanker unloading, etc.It is suitable for clean water, sea water, chemical medium liquid with acid and alkalinity and slurry with general paste (medium viscosity≤100 cp, solid content up to 30%).

The performance parameter table only shows part of the products. For details, please consult our company’s account manager, so that you can choose products for you more professionally.
Physical map of our company workshop
Warm reminder: The price of the product is mainly in kind! For details, consult our customer manager
You May Like
Transportation and service
Product packaging, boxing, nailing, loading, arrival at the port, transportation
Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company! Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
Our Company
Company office area
Integrated CNC machine tool
Heavy processing machine tools
CNC Castings
Product assembly
Quality inspection station
FAQ
Q: How can I make order online? A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order. Q: Do you have MOQ limit? A: The MOQ is 1 set. Q: Which payments are acceptable? A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance. Q: Which shipping terms are available? A: By sea, air, Express Q: How about the delivery time? A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What guarantee do you have? A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty). Q: Can I purchase parts separately? A: Yes, all pump spare parts can be purchased separately.
