Quick Details
-
Voltage:
-
220V/380V/50Hz/Customized, 220V/380V/50Hz/Customized
-
Weight:
-
4300 KG, 4300KG
-
Dimension(L*W*H):
-
4350x2140x3200mm
-
Marketing Type:
-
New Product 2021
-
Production Rate::
-
100%
-
Warranty::
-
1 Year
-
Purity:
-
93+/-3%
-
keywords:
-
PSA Oxygen Generator
-
Capacity:
-
30Nm3/h
-
Application:
-
Medical, Industrial
-
Name:
-
oxygenerator medical generator oxygen generator system
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HRF
-
Production Rate:
-
30Nm3/h
-
Voltage:
-
220V/380V/50Hz/Customized, 220V/380V/50Hz/Customized
-
Weight:
-
4300 KG, 4300KG
-
Dimension(L*W*H):
-
4350x2140x3200mm
-
Marketing Type:
-
New Product 2021
-
Production Rate::
-
100%
-
Warranty::
-
1 Year
-
Purity:
-
93+/-3%
-
keywords:
-
PSA Oxygen Generator
-
Capacity:
-
30Nm3/h
-
Application:
-
Medical, Industrial
-
Name:
-
oxygenerator medical generator oxygen generator system
Home air Making Machine
Technical Index
Compressed Air Pressure: 0.7-1.3MPa(7Bar-13Bar)
Oxygen Capacity: 100Nm3/h
Oxygen Purity: 93%±2%
Outlet Pressure: 0.5Mpa or per requirement
Dew Point: ≤-40℃
Electrical Power :380V/3P/50HZ or Customized
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and Oxygen Generation Technology uses
special grade of ZMS ( Zeolite Molecular Sieve).

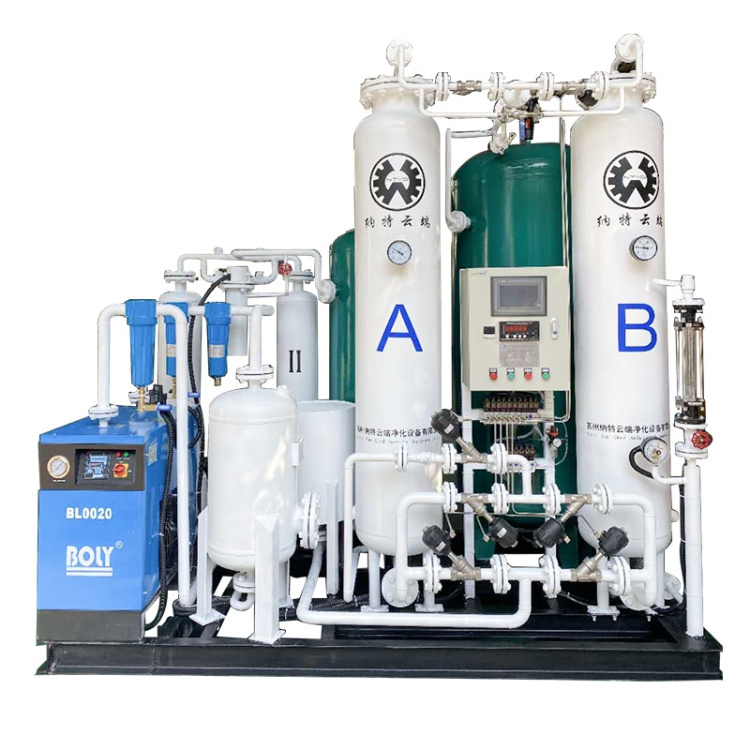

The compressed air is passed through a Twin Tower PSA module interconnected with automatic change over valves. After passing
through a Refrigerated Dryer air gets dried. Dried compressed air will now come in contact with bed of Zeolite molecular sieves
(ZMS). Zeolite Molecular Sieves are special grade of adsorbent which have the property of preferential adsorption of nitrogen
molecules. At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes regeneration which is
achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen gas is sent to a surge vessel where
the minimum pressure will be maintained with the help of Back pressure Regulator.
Oxygen Capacity: 100Nm3/h
Oxygen Purity: 93%±2%
Outlet Pressure: 0.5Mpa or per requirement
Dew Point: ≤-40℃
Electrical Power :380V/3P/50HZ or Customized
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and Oxygen Generation Technology uses
special grade of ZMS ( Zeolite Molecular Sieve).
The compressed air is passed through a Twin Tower PSA module interconnected with automatic change over valves. After passing
through a Refrigerated Dryer air gets dried. Dried compressed air will now come in contact with bed of Zeolite molecular sieves
(ZMS). Zeolite Molecular Sieves are special grade of adsorbent which have the property of preferential adsorption of nitrogen
molecules. At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes regeneration which is
achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen gas is sent to a surge vessel where
the minimum pressure will be maintained with the help of Back pressure Regulator.
Product Details
Product Advantages
1. Listed brand air compressor;
2. Germany Siemens PLC intelligent control;
3. Schneider electrical components, fast response time and long life;
4.7 inch touch screen human-machine interface, easy to operate;
5. Solenoid valve adopts Taiwan Airtac brand, the equipment long-term stable operation;
6. Automatic start and stop, automatic emptying, automatic start and stop after the rapid provision of qualified oxygen;
7. Pneumatic valve and pneumatic valve connection pipe are made of stainless steel, low cold resistance;
8. With activated carbon pressure vessel filter, better oil removal effect;
9. Large equipment using cylinder compression device, to prevent the molecular sieve powder, to improve the service life;
10. Increase the flame arrestor, fire hazards are guaranteed;
11. The equipment is marked with pipeline and reading door according to international standard, which is convenient for
management and maintenance.
