Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Huihe
-
Model Number:
-
304
-
Product name:
-
stainless steel 45 degree elbow
-
Keyword:
-
stainless steel pipe fitting elbow
-
Pressure:
-
2.5MPa
-
Sample:
-
Avalivale
-
Surface treatment:
-
painted
-
Package:
-
pallets
-
OEM:
-
Accpet
-
Material:
-
stainless steel
-
Standard:
-
ANSI
-
Thickness:
-
Sch10s-Sch40
Quick Details
-
Technics:
-
Pressed
-
Shape:
-
Round
-
Head Code:
-
Round
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Huihe
-
Model Number:
-
304
-
Product name:
-
stainless steel 45 degree elbow
-
Keyword:
-
stainless steel pipe fitting elbow
-
Pressure:
-
2.5MPa
-
Sample:
-
Avalivale
-
Surface treatment:
-
painted
-
Package:
-
pallets
-
OEM:
-
Accpet
-
Material:
-
stainless steel
-
Standard:
-
ANSI
-
Thickness:
-
Sch10s-Sch40
Product Description
|
Product Name
|

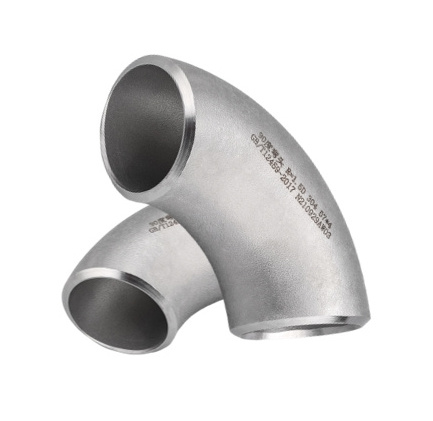

ASME B16.9 ASTM A234-WPB / stainless steel 90 degree elbow
|
|
|
|
|||
|
Material
|
Stainless Steel, Alloy Steel, Carbon Steel
|
|
|
|
|||
Technological Flow Sheet
Specification
|
NPS
|
OD
|
Center To End
|
|
|
||
|
|
|
Long Radius Elbow
|
|
Short Radius Elbow
|
||
|
|
|
90 Degree
|
45 Degree
|
90 Degree
|
||
|
|
|
A
|
B
|
A
|
||
|
1/2
|
21.3
|
38.1
|
15.7
|
|
||
|
3/4
|
26.7
|
38.1
|
19.1
|
|
||
|
1
|
33.4
|
38.1
|
22.4
|
25.4
|
||
|
1-1/4
|
42.2
|
47.8
|
25.4
|
31.8
|
||
|
1-1/2
|
48.3
|
57.2
|
28.4
|
38.1
|
||
|
2
|
60.3
|
76.2
|
35.1
|
50.8
|
||
|
2-1/2
|
73.0
|
95.2
|
44.4
|
63.5
|
||
|
3
|
88.9
|
114.3
|
50.8
|
76.2
|
||
|
3-1/2
|
101.6
|
133.4
|
57.2
|
88.9
|
||
|
4
|
114.3
|
152.4
|
63.5
|
101.6
|
||
|
5
|
141.3
|
190.5
|
79.2
|
127.0
|
||
|
6
|
168.3
|
228.6
|
95.2
|
152.4
|
||
|
8
|
219.1
|
304.8
|
127.0
|
203.2
|
||
|
10
|
273.1
|
381.0
|
158.8
|
254.0
|
||
|
12
|
323.9
|
457.2
|
190.5
|
304.8
|
||
|
14
|
355.6
|
533.4
|
222.2
|
355.6
|
||
|
16
|
406.4
|
609.6
|
254.0
|
406.4
|
||
|
18
|
457.2
|
685.8
|
285.8
|
457.2
|
||
|
20
|
508.0
|
762.0
|
317.5
|
508.0
|
||
|
22
|
558.8
|
838.2
|
342.9
|
558.8
|
||
|
24
|
609.6
|
914.4
|
381.0
|
609.6
|
||
|
26
|
660.4
|
990.6
|
406.4
|
660.4
|
||
|
28
|
711.2
|
1066.8
|
438.2
|
711.2
|
||
|
30
|
762.0
|
1143.0
|
469.9
|
762.0
|
||
|
32
|
812.8
|
1219.2
|
501.6
|
812.8
|
||
|
34
|
863.6
|
1295.4
|
533.4
|
863.6
|
||
|
36
|
914.4
|
1371.6
|
565.2
|
914.4
|
||
|
38
|
965.2
|
1447.8
|
599.9
|
|
||
|
40
|
1016.0
|
1524.0
|
632.0
|
1016.0
|
||
|
42
|
1066.8
|
1600.2
|
660.4
|
1066.8
|
||
|
44
|
1117.6
|
1676.4
|
695.5
|
1117.6
|
||
|
46
|
1168.4
|
1752.6
|
726.9
|
|
||
|
48
|
1219.2
|
1828.8
|
759.0
|
1219.2
|
||
|
52
|
1320.8
|
|
|
1320.8
|
||
|
54
|
1371.6
|
2057.4
|
852.2
|
1371.6
|
||
|
56
|
1422.4
|
2133.6
|
883.8
|
1422.4
|
||
|
60
|
1524.0
|
2286.0
|
946.9
|
1524.0
|
||
|
66
|
1676.4
|
2514.6
|
1041.6
|
|
||
|
68
|
1727.0
|
2591.0
|
1073
|
1727.0
|
||
|
72
|
1829.0
|
2743.0
|
1137
|
1829.0
|
||
|
76
|
1930.0
|
2896.0
|
1199
|
1930.0
|
||
|
80
|
2032.0
|
3048
|
1263
|
2032.0
|
||
