Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOPOOCOLOR
-
Model Number:
-
HPCS6500
-
Wavelength Range:
-
380nm~780nm
-
Photometric linear:
-
±0.5%
-
Accuracy:
-
Class 1
-
Stray light:
-
<0.015%(600nm)
-
Accuracy of wave:
-
±0.5nm
-
product name:
-
Spectroradiometer
-
Display:
-
5 inch
-
Application:
-
Lighting Test
-
CCT range:
-
1000~100000K
-
Integral Time:
-
50 S~10000ms
-
Name:
-
Spectroradiometer system Integrating sphere
Quick Details
-
Warranty:
-
2 years
-
Size:
-
57*53*28cm
-
Weight:
-
20kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOPOOCOLOR
-
Model Number:
-
HPCS6500
-
Wavelength Range:
-
380nm~780nm
-
Photometric linear:
-
±0.5%
-
Accuracy:
-
Class 1
-
Stray light:
-
<0.015%(600nm)
-
Accuracy of wave:
-
±0.5nm
-
product name:
-
Spectroradiometer
-
Display:
-
5 inch
-
Application:
-
Lighting Test
-
CCT range:
-
1000~100000K
-
Integral Time:
-
50 S~10000ms
-
Name:
-
Spectroradiometer system Integrating sphere

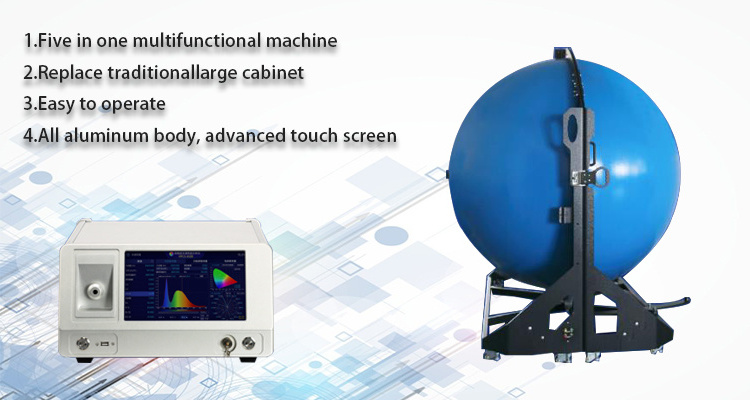

HPCS6500 high precision integrating sphere spectroradiometer for LED luminous flux CCT CRI test

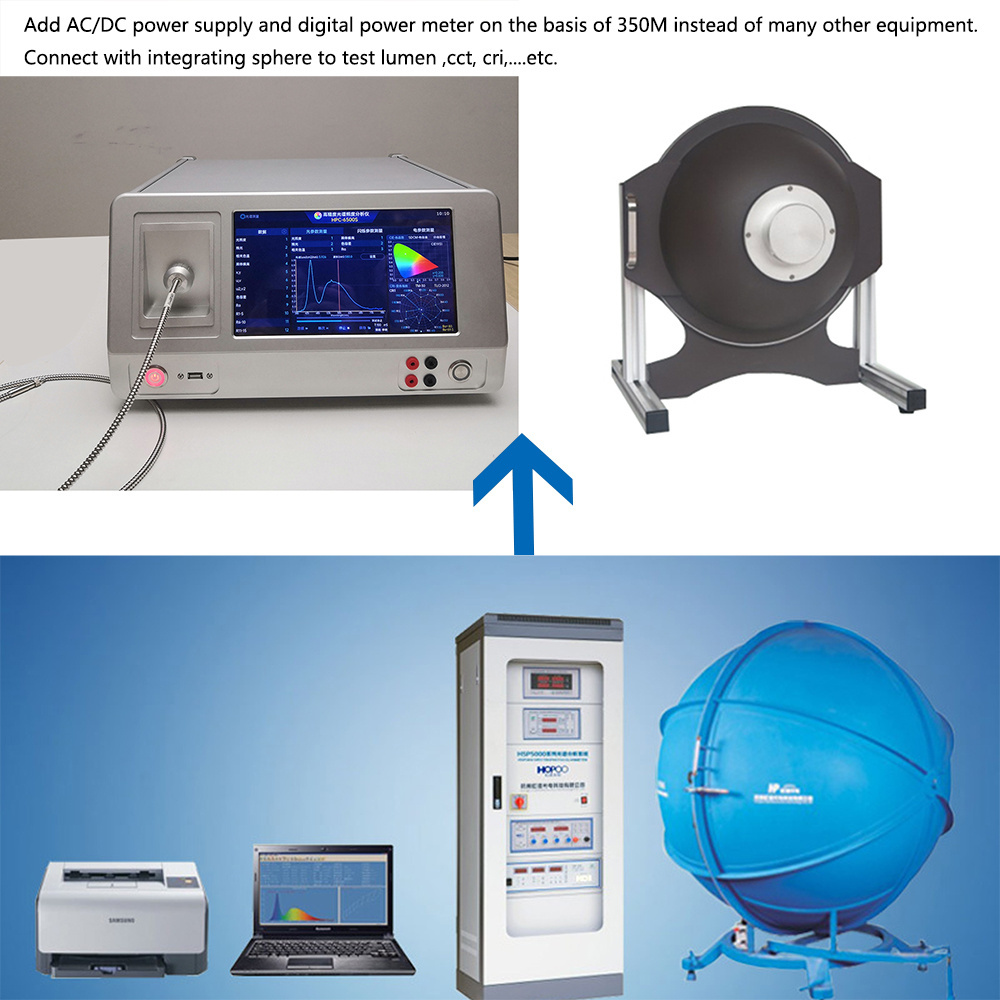

HPCS6500 high-precision photometirc,Colorimetric and Electric Test System, the whole machine adopts aluminum alloy
chassis,embedded high-speed processor, 10.1-inch color LCD Touch screen, Use interaction. The system integrating high-precision spectrometer, DC power supply, AC power supply in one device, use independently also can connect to pc software.
The test system can determine spectral power distribution, chromaticity coordinates, correlated color temperature, color rending index (Ra), color difference, peak wavelength, spectral half width, dominant wavelength, color purity, luminous flux, test for photometry colorimetry electricity of LED characteristics.
chassis,embedded high-speed processor, 10.1-inch color LCD Touch screen, Use interaction. The system integrating high-precision spectrometer, DC power supply, AC power supply in one device, use independently also can connect to pc software.
The test system can determine spectral power distribution, chromaticity coordinates, correlated color temperature, color rending index (Ra), color difference, peak wavelength, spectral half width, dominant wavelength, color purity, luminous flux, test for photometry colorimetry electricity of LED characteristics.
|
Range of wavelength
|
380nm-780nm
|
|
Accuracy of chromaticity coordinates
|
±0.0015(x, y)
|
|
Range of dominant wavelength (λD)
|
380nm-780nm
|
|
Accuracy
|
±0.3nm
|
|
Range of correlated color temperature (CCT)
|
1000K-100000K
|
|
Accuracy
|
±3%
|
|
Range of luminous flux (ΦV)
|
10mlm-20000.0lm
|
|
Range of luminous intensity
|
10mcd-3000cd
|
|
Accuracy
|
class1
|
|
Forward current (IF)
|
0.01mA-5000.0mA
|
|
Accuracy
|
±0.5%
|
|
Forward voltage (VF)
|
0.01V-40.0V
|
|
Accuracy
|
±0.5%
|
|
Reverse current (IR)
|
0.01μA-200.00μA
|
|
Accuracy
|
±0.5%
|
|
Reverse voltage (VR)
|
0.01V-30.0V
|
|
Accuracy
|
±0.5%
|
Specification:
1.High precision Spectroradiometer
Wave range : 380-780 (Support Customized 200-1100nm )
CCT range : 1000-100000K
FWHM) : 2nm
Integration time : 10ps-10s
Chromaticity coordinates Accuracy :±0.001 (Under standard A source )
2.High speed detector
Luminous Flux test: 0.01lm-200z000lm (With different integrating spheres)
Maximum sampling rate :1000kHz
Maximum sampling points : 15000
Trigger mode :Trigger by software, external and measured signal
3.High precision DC power supply
Voltage output range : 0-60.0V
Current output range : 0-5.0A
Maximum output power : 300W
Measurement accuracy : ± ( 0.02% reading +0.01%+1 )
4.High precision AC power supply
Voltage output range : 0V-300V
Frequency output range : 45Hz~65Hz
Maximum output power: 750VA
Maximum output current: 4.6A
Harmonic distortion : >=2%
5.Digital power meter
Voltage measurement accuracy : ±( 0.4%*+ 0.1%*+1)
Current measurement accuracy : ± ( 0.4%*+ 0.1%*+1)
Measurement accuracy of power meter:± (0.4%*+ 0.1%*+1)
Power factor measurement accuracy : ± ( 0.001/® + 0.001*(1 + 0.02f) +1
1.High precision Spectroradiometer
Wave range : 380-780 (Support Customized 200-1100nm )
CCT range : 1000-100000K
FWHM) : 2nm
Integration time : 10ps-10s
Chromaticity coordinates Accuracy :±0.001 (Under standard A source )
2.High speed detector
Luminous Flux test: 0.01lm-200z000lm (With different integrating spheres)
Maximum sampling rate :1000kHz
Maximum sampling points : 15000
Trigger mode :Trigger by software, external and measured signal
3.High precision DC power supply
Voltage output range : 0-60.0V
Current output range : 0-5.0A
Maximum output power : 300W
Measurement accuracy : ± ( 0.02% reading +0.01%+1 )
4.High precision AC power supply
Voltage output range : 0V-300V
Frequency output range : 45Hz~65Hz
Maximum output power: 750VA
Maximum output current: 4.6A
Harmonic distortion : >=2%
5.Digital power meter
Voltage measurement accuracy : ±( 0.4%*+ 0.1%*+1)
Current measurement accuracy : ± ( 0.4%*+ 0.1%*+1)
Measurement accuracy of power meter:± (0.4%*+ 0.1%*+1)
Power factor measurement accuracy : ± ( 0.001/® + 0.001*(1 + 0.02f) +1

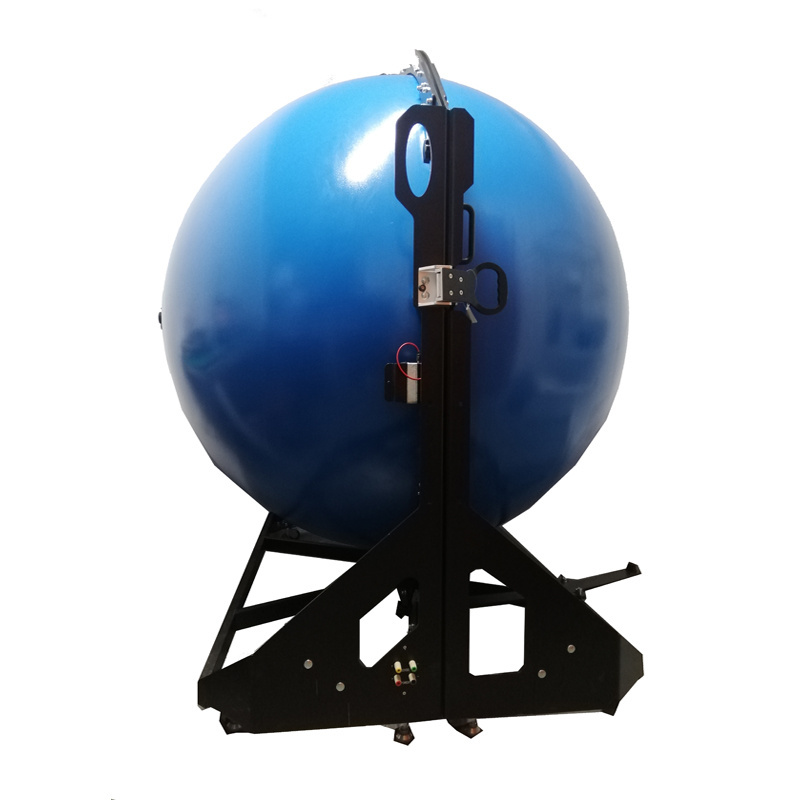

Integrating spheres
Integrating spheres
NOTE: 0.3m, 0.5m, 1.0m, 1.5m, 1.75m, 2.0m diameters are selectable according the type and size of the luminaires.
(1).the equipment is for luminous flux measurement by cooperating with a standard lamp.
(2).applications
---luminous flux measurements on lamps for production and quality control, research, and development
---calibration the luminous flux for working standards
---color measurements on light sources with colorimeters
(3)0.3m Sphere
Diameter:300mm
Place:Horizontal
Range:0.001~1999 lm
0.5m Sphere
Diameter:500mm
Place:Horizontal
Range:0.01~199 99 lm
(4) .interior sphere paint
(5) - spectral range 380-780 nm;
(6) - diameter 1.0-2.0 m;
(7) - external port >=0.3m;
(8) - luminance uniformity >98%
·Design completely according with international and domestic relevant standards, coating material of inner-wall selects pure
barite ore (BaSO4) which has stability chemical property and will not turn yellow after long time later, material of sphere body
choose cold rolled steel so that is not deformed. Base height is adjustable and ensures the integrating sphere is in level.
Multiple interfaces can meet more lights’ requirement simultaneously.
NOTE: 0.3m, 0.5m, 1.0m, 1.5m, 1.75m, 2.0m diameters are selectable according the type and size of the luminaires.
(1).the equipment is for luminous flux measurement by cooperating with a standard lamp.
(2).applications
---luminous flux measurements on lamps for production and quality control, research, and development
---calibration the luminous flux for working standards
---color measurements on light sources with colorimeters
(3)0.3m Sphere
Diameter:300mm
Place:Horizontal
Range:0.001~1999 lm
0.5m Sphere
Diameter:500mm
Place:Horizontal
Range:0.01~199 99 lm
(4) .interior sphere paint
(5) - spectral range 380-780 nm;
(6) - diameter 1.0-2.0 m;
(7) - external port >=0.3m;
(8) - luminance uniformity >98%
·Design completely according with international and domestic relevant standards, coating material of inner-wall selects pure
barite ore (BaSO4) which has stability chemical property and will not turn yellow after long time later, material of sphere body
choose cold rolled steel so that is not deformed. Base height is adjustable and ensures the integrating sphere is in level.
Multiple interfaces can meet more lights’ requirement simultaneously.
