Quick Details
-
Range of Spindle Speed(r.p.m):
-
66 - 4540 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1700X1600X2250mm
-
Weight (KG):
-
1980
-
Product name:
-
turret milling machine
-
Table size:
-
1370X305mm
-
T slot:
-
3/16/65
-
Longitudinal travel:
-
850mm
-
Cross travel:
-
380mm
-
Vertical travel:
-
380mm
-
horizontal spindle to table:
-
380mm
-
Spindle taper:
-
NT40
-
Vertical Spindle speed:
-
66-4540rpm
-
Horizontal spindle speed:
-
40-1300rpm
Quick Details
-
Table Travel (X) (mm):
-
800 mm
-
Table Travel (Y) (mm):
-
400 mm
-
Table Travel (Z) (mm):
-
400 mm
-
Range of Spindle Speed(r.p.m):
-
66 - 4540 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1700X1600X2250mm
-
Weight (KG):
-
1980
-
Product name:
-
turret milling machine
-
Table size:
-
1370X305mm
-
T slot:
-
3/16/65
-
Longitudinal travel:
-
850mm
-
Cross travel:
-
380mm
-
Vertical travel:
-
380mm
-
horizontal spindle to table:
-
380mm
-
Spindle taper:
-
NT40
-
Vertical Spindle speed:
-
66-4540rpm
-
Horizontal spindle speed:
-
40-1300rpm

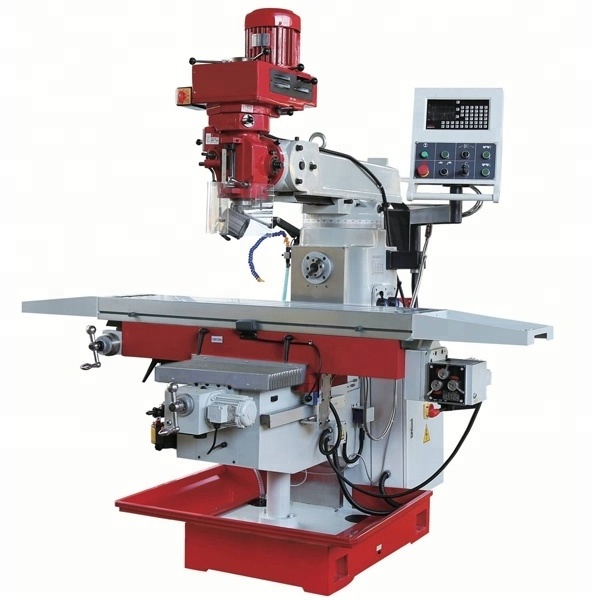

universal metal milling vertical and horizontal taiwan turret milling machine price with DRO
| Specification | Unit | X6325W | X6330W | X6333W |
| Table size | mm | 1370*254 | 1370*305 | 1500*300 |
| T slot | 3/16/65 | 3/16/65 | 3/18/85 | |
| Longitudinal travel | mm | 750 | 800 | 1000 |
| Cross travel | mm | 380 | 380 | 350 |
| Vertical travel | mm | 360 | 360 | 360 |
| Spinedle and ram distance | mm | 210 | 210 | 300 |
| Spindle and table distance | mm | 0-400 | 0-380 | 0-360 |
| Arm travel | mm | 400 | 400 | 500 |
| Milling head tilting | degree |
90(left right)
45(front back) |
90(left right)
45(front back) |
90(left right)
45(front back) |
| Spindle taper | R8(V);NT40(H) | R8(V);NT80(H) | NT40(V.), NT40(H.) | |
| Spindle speed | r/min |
66-4540(V)/16steps;
40-1300(H)/12steps |
66-4540(V)/16steps;
40-1300(H)/12steps |
66-4540(V)/16steps;
40-1300(H)/12steps |
| Spindle motor power | kw | 2.2(V);3(H) | 2.2(V);3(H) | 3.75(V.), 3(H) |
| Overall size | mm | 1700x1600x2250 | 1700x1600x2250 | 2400x1700x2350 |
| Net weight | kg | 1380 | 1450 | 1980 |
Standard accessories
milling chuck
drilling chuck
work light
reduction sleeve
machine vice
tools and tool box
draw bar
coolant system
Optional accessories:
3 axis DRO
dividing head
clamping kits
X,Y power feed
rotary table
