Quick Details
-
Brand Name:
-
Guomipai
-
Voltage:
-
220V/110V
-
Power:
-
750W/1100W/23OOW
-
Dimension(L*W*H):
-
670*600*780mm
-
Weight (KG):
-
50
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Vegetable Freeze Dryer
-
Freeze-drying area:
-
0.1㎡-0.92㎡
-
Limit vacuum:
-
1.310pa (no load)
-
Condensing temperature:
-
≤--40℃
-
Raw material:
-
Multiple Material
-
Color:
-
Customers' Requirements
-
Function:
-
Multifunctional
-
Processing Types:
-
Food Process Equpiment
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Capacity (kg/batch):
-
1-8kg/time
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guomipai
-
Voltage:
-
220V/110V
-
Power:
-
750W/1100W/23OOW
-
Dimension(L*W*H):
-
670*600*780mm
-
Weight (KG):
-
50
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Vegetable Freeze Dryer
-
Freeze-drying area:
-
0.1㎡-0.92㎡
-
Limit vacuum:
-
1.310pa (no load)
-
Condensing temperature:
-
≤--40℃
-
Raw material:
-
Multiple Material
-
Color:
-
Customers' Requirements
-
Function:
-
Multifunctional
-
Processing Types:
-
Food Process Equpiment

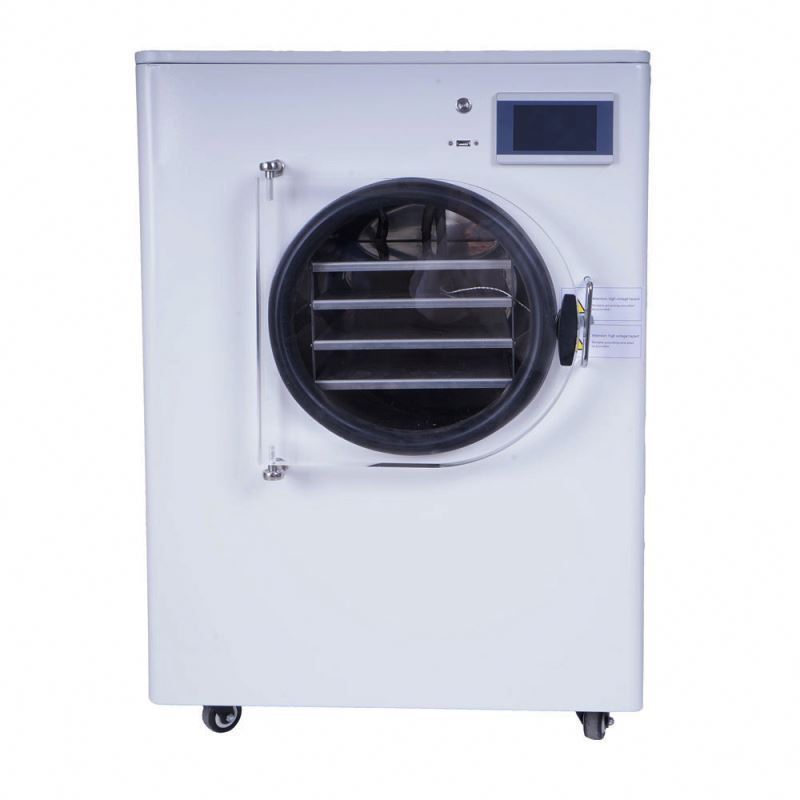

Products Description
Introduction:
Vacuum Freeze Drying Machine is widely used in food, fruit, vegetable, fish, sea cucumer,shrimp, meat drying indstury, chemical and biological industry etc. The dried product by home freeze drying machine machine is with good taste, beautiful color and good shape.Compared with air drying, dehydration and other technologies, the biggest characteristic of freeze-dried food is to retain the color, aroma, taste, shape of the product and the nutritional composition of the original ecological food.
|
Model
|
HFD-1
|
HFD-4
|
HFD-6
|
HFD-8
|
|
Drying area (square meter)
|
0.1
|
0.4
|
0.6
|
0.92
|
|
Limit vacuum
|
15Pa
|
15Pa
|
15Pa
|
15Pa
|
|
Capacity per batch
|
1~2kg
|
4~6kg
|
6~8kg
|
10~12kg
|
|
Shelf gap(mm)
|
45
|
45
|
45
|
45
|
|
Power(W)
|
750W
|
1100W
|
2000W
|
2000W
|
|
Weight
|
50kg
|
80kg
|
120kg
|
140kg
|
|
Tray
|
140*278mm, 3pcs
|
200*450mm, 4pcs
|
330*440mm, 4pcs
|
265*435mm, 8pcs
|
|
Dimension
|
670*600*780mm
|
700*630*900mm
|
730*810*1180mm
|
730*810*1180mm
|
Working Principle:
The freeze vacuum dryer can remove the moisture in the pre-frozen material under the high vacuum state, it makes the moisture steamed under Ice state,don't have to melt into water.
The machine will pre-frozen the material and then creat high vacuum state to heat the materi to dry with low temperature. Which will best maintain the hysical properties and can keep long after drying compared with other drying ways.
The machine will pre-frozen the material and then creat high vacuum state to heat the materi to dry with low temperature. Which will best maintain the hysical properties and can keep long after drying compared with other drying ways.
