Quick Details
-
Max. Spindle Speed (r.p.m):
-
1800 r.p.m
-
Width of bed (mm):
-
360 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2200*1600*1650
-
Brand Name:
-
SDCNC
-
Model Number:
-
CK6136*750
-
Weight (KG):
-
1550
-
Marketing Type:
-
Hot Product
-
CNC or Not:
-
CNC
-

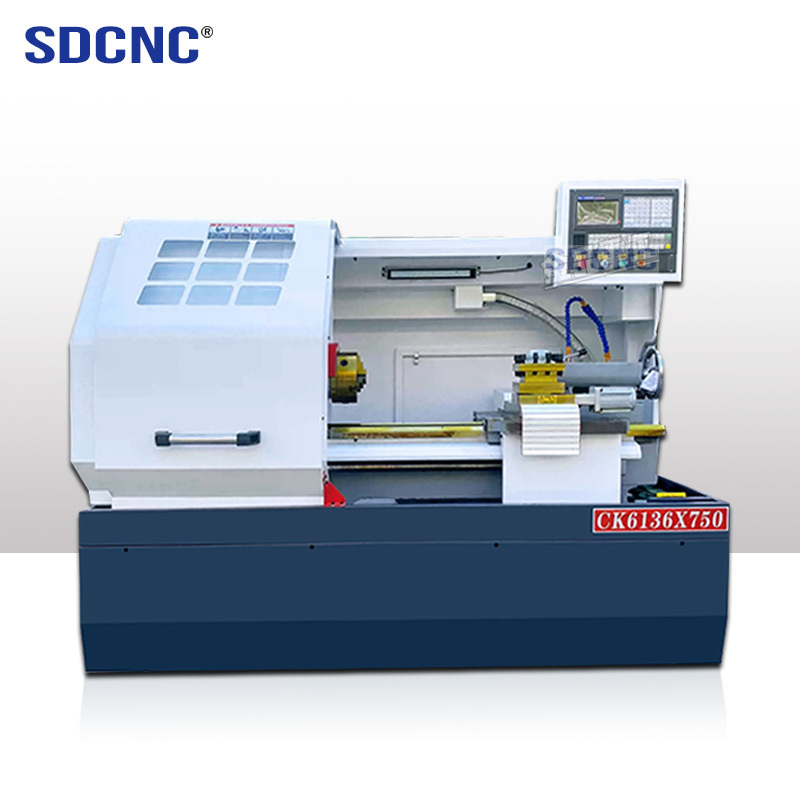

Product name:
-
CNC Lathe Mechine
-
Machine Type:
-
Lathe Machine CNC
-
Key word:
-
Cnc Machine Tool Equipment
-
Control:
-
GSK.FANUC MITSUBISHI SIMENS SYNTEC
-
Model:
-
CK6136*750
-
Keyword:
-
Automatic CNC Lathe Machine
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
750
-
Year:
-
custom made
-
Max. Spindle Speed (r.p.m):
-
1800 r.p.m
-
Width of bed (mm):
-
360 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2200*1600*1650
-
Brand Name:
-
SDCNC
-
Model Number:
-
CK6136*750
-
Weight (KG):
-
1550
-
Marketing Type:
-
Hot Product
-
CNC or Not:
-
CNC
-
Product name:
-
CNC Lathe Mechine
-
Machine Type:
-
Lathe Machine CNC
-
Key word:
-
Cnc Machine Tool Equipment
-
Control:
-
GSK.FANUC MITSUBISHI SIMENS SYNTEC
-
Model:
-
CK6136*750
-
Keyword:
-
Automatic CNC Lathe Machine
Products Description
Product Paramenters
|
Specifications
|
unit
|
CK6136
|
CK6136B
|
|
Max. swing over bed
|
mm
|
Φ360
|
Φ360
|
|
Max. swing over cross slide
|
mm
|
Φ180
|
Φ180
|
|
X/Z axis travel
|
mm
|
280/550
|
280/750
|
|
Spindle nose
|
|
A2-6
|
A2-6
|
|
Spindle bore
|
mm
|
Φ48
|
Φ48
|
|
Bar capacity
|
mm
|
Φ41
|
Φ41
|
|
Max. spindle speed
|
rpm
|
150-2000
|
150-2000
|
|
Chuck size
|
mm
|
200
|
200
|
|
Spindle motor
|
kW
|
5.5
|
5.5
|
|
X/Z axis repeatability
|
mm
|
±0.005
|
±0.005
|
|
X/Z axis feed motor torque
|
N.m
|
X:4 Z:6
|
X:4 Z:6
|
|
X/Z Rapid traverse
|
m/min
|
X:8 Z:10
|
X:8 Z:10
|
|
Tailstock quill dia.
|
mm
|
Φ60
|
Φ60
|
|
Quill traverse
|
mm
|
100
|
100
|
|
Quill taper
|
#
|
MT4
|
MT4
|
|
Tool post type
|
|
Four position electric turret
|
Four position electric turret
|
|
Cutting tool shape size
|
mm
|
20×20
|
20×20
|
|
Guide form
|
|
Double mountain
|
Double mountain
|
|
Total power capacity
|
KVA
|
9
|
9
|
|
Machine dimension (L×W×H)
|
mm
|
2000×1200×1620
|
2250×1160×1620
|
|
Net. weight (about)
|
kg
|
1560
|
1700
|
