PCTFE is radiation resistant and non-flammable. It will continue to perform well in in extreme temperatures ranging from -400°F to 284°F.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PCTFE rod
-
Product name:
-
PCTFE rod
-
Material:
-
virgin PCTFE
-
Color:
-
white
-
machining process:
-
Extruded and molded
-
Certificate:
-
RoHS
-
Package:
-
carton
-
Logo:
-
Dechengwang
-
Application:
-
seals gaskets
-
Character:
-
low-friction, non-stick surface
Quick Details
-
Processing Service:
-
Extruded
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dechengwang
-
Model Number:
-
PCTFE rod
-
Product name:
-
PCTFE rod
-
Material:
-
virgin PCTFE
-
Color:
-
white
-
machining process:
-
Extruded and molded
-
Certificate:
-
RoHS
-
Package:
-
carton
-
Logo:
-
Dechengwang
-
Application:
-
seals gaskets
-
Character:
-
low-friction, non-stick surface
PCTFE ROD Description

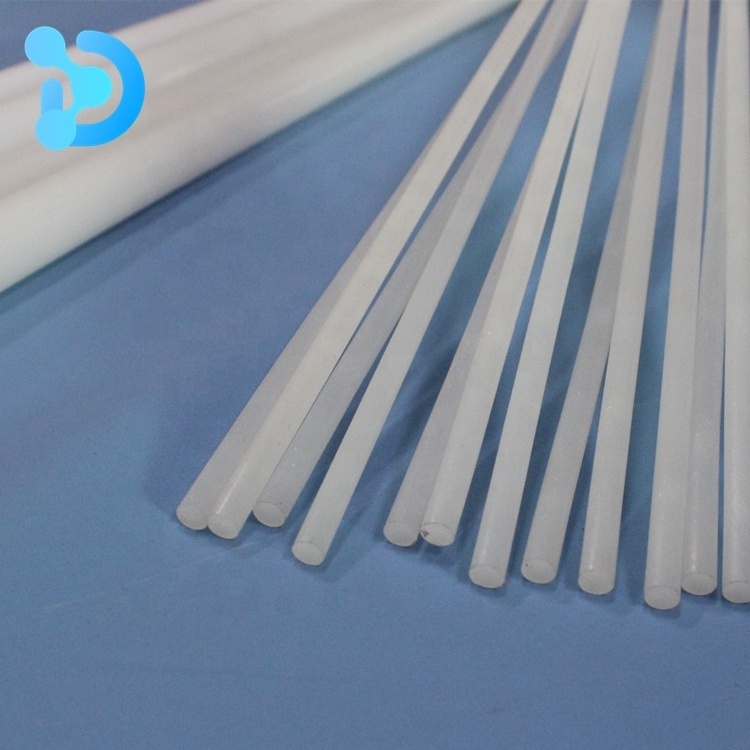

PCTFE Rod
A unique fluoropolymer with both chlorine and fluorine in its composition, PCTFE has high compressive strength and stability over a wide range of temperatures. It is a rigid material that exhibits good dimensional stability and low deformation under load. This material has near zero moisture absorption and will retain its dimensional stability in humid or marine environments.
Features
* Good dimensional stability and rigidity
* Low deformation under load
* Near zero moisture absorption
* Non-flammable
* Resistant to radiation
* Excellent chemical resistance
* Good corrosion resistance
Low outgassing
FLOW CHART
OUR MATERIALS
|
Material Name
|
Main Properties
|
Compliant
|
Temperature Range
|
|
PTFE
|
This synthetic fluoropolymer of tetrafluoroethylene is known for being one of the most versatile plastics available. Being
hydrophobic, non-wetting, high density and resistant to high temperatures, it is a material with a wide variety of applications across a range of different industries. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-180°C to 260°C
|
|
Modified PTFE
|
Modified PTFE or TFM, is a high-density copolymerized material. It has low gas permeation and reduces cold flow. Often used in the
medical field and in other applications where biocompatibility is required. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-180°C to 260°C
|
|
PTFE Compounds
|
PTFE compounded with fillers like glass fibers, carbon, graphite, bronze, MoS2, PEEK etc. to improve physical, mechanical,
thermal, wearing, electrical and chemical properties. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-70°C to 250°C
|
|
PEEK
|
PEEK is a high-performance engineering plastic with outstanding chemical resistance, excellent mechanical strength and dimensional stabilization.
|
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-70°C to 250°C
|
|
PEEK Compounds
|
Standard PEEK virgin grade is suitable for laboratory and medical use. After being reinforced with glass fibers and carbon, its
expansion rate is significantly reduced and the flexural module is increased. This makes it ideal for applications requiring increased stability, strength and rigidity at temperatures above 300°F. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-70°C to 250°C
|
|
PFA
|
PFA has most of the physical and chemical properties of PTF, which is commonly used as material for piping and fittings, as well
as corrosion-resistant lining of vessels. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-200°C to 260°C
|
|
PVDF
|
PVDF is a special material in fluoropolymer. Maximum purity, strength, and resistance to solvents, acids, bases and heat, all
those characteristics make PVDF popular in some critical applications. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-50°C to 150°C
|
|
PCTFE
|
PCTFE (polychlorotrifluoroethylene) is a fluoropolymer material with exceptional strength, rigidity and stability in dimensions.
|
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-400°C to 150°C
|
